AMX MXD-1900L-PAN Installation Manual

Overview

The MXD-1900L-PAN 19.4" Modero X Series Panoramic Wall Touch Panels (Portrait Wall
Mount: FG5968-06; Landscape Wall Mount: FG5968-12) include a beautiful, panoramic
capacitive multi-touch screen that provides users access to multiple applications with
minimal navigation. It is hardware-ready for support of Near Field Communications™ (NFC)
Technology, to allow personalization of the user experience and productivity enhancing
capabilities through integration with NFC-capable personal devices. With the panoramic
design allowing multiple functions simultaneously, including digital signage, the Modero X
Series is the control surface that simply delivers more.
For more information on installation and configuration, please refer to the
MXT/MXD-1900L-PAN Operation Reference Guide, available at www.amx.com.
Sleep button

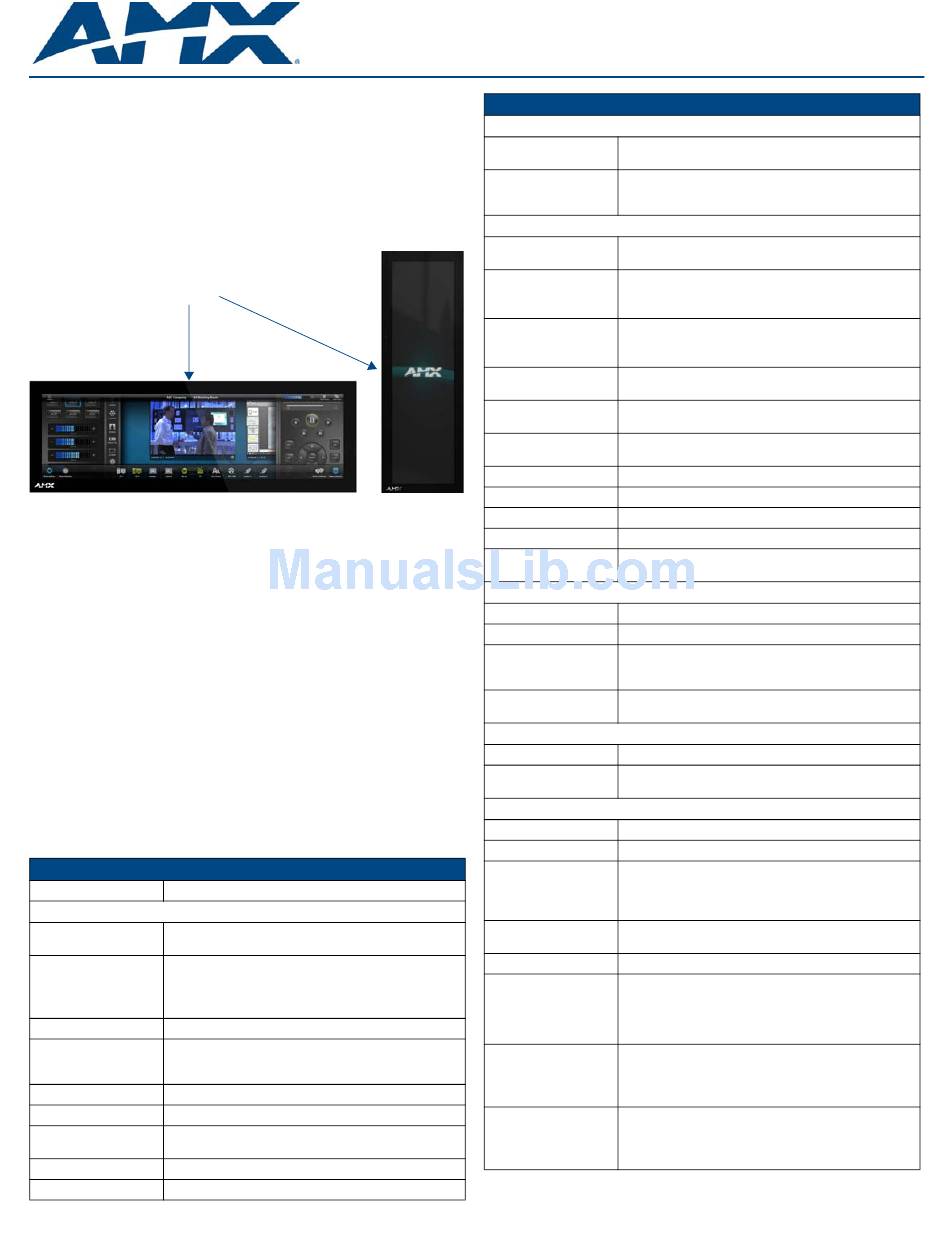

FIG. 1 MXD-1900L-PAN Wall Mount Touch Panel - Landscape (l) and Portrait (r)

Common Application

The MXD-1900L-PAN is ideal for boardrooms, conference rooms, or auditoriums where a
panoramic control surface is needed to provide access to multiple functions simultaneously
while remaining elegantly unobtrusive. In residences, it is perfect for kitchens, home
theaters, or home offices where the panoramic control surface can be used to manage
systems throughout the house.

Features

• Panoramic Control Surface – Combined with the new PanTastic UI, the
panoramic touch panels take the user experience to a whole new level with an impres-
sive control surface to perform activities much in the same way you use a computer –
multi-tasking with dedicated spaces.
• Future Technology Visions – HD video chat and conferencing using integrated
camera and hardware-ready to support Near Field Communication Technology, which
promises short-range wireless technologies that deliver peer-to-peer communication
by 'sharing, pairing and transaction' between RF devices like exchanging
data/identities.
• Enhanced Usability – External phone connections via Bluetooth or USB and HD
video streaming.
• Graphic Leaps & Bounds – The Modero X Series includes some striking new intuitive
UI functionality including: gesturing, swiping, dynamic reordering and enhanced
animation capabilities.
• Perfect From Any Angle – Includes In-Plane Switching (IPS), the latest
technology in popular tablet/mobile devices that delivers the widest viewing angles and
the most accurate color reproduction on the market.

Product Specifications

MXD-1900L-PAN Specifications
Power Requirements: 12VDC, 4.4A: 2-pin, locking 3.5mm captive wire connector
Front Panel Components:
Light Sensor: Photosensitive light detector for automatic adjustment of the
panel brightness.
Motion Sensor: Proximity detector to wake the panel when it is approached.
• Typical Range: 1 foot (30.48 cm)
• Maximum Range: 3 feet (91.44 cm)
• Range width: 10 degrees
LED Indicator: Camera with active indicator (landscape only)
Sleep Button: Single button on edge of panel for placing panel in sleep
mode, for powering off panel, and for access to Settings
pages.
Microphone: -42dB +- 3dB sensitivity FET microphone
Speakers: 4 ohm, 2 Watt, 300Hz cutoff frequency
Camera (landscape HD 720P camera for video conferencing/video chat support.
only):
Ethernet 10/100 Port: 10/100 Base-T RJ-45 connector for Ethernet connectivity.
Power Port: Locking 2-Pin, 3.5mm captive wire connector.
MXD-1900L-PAN
MXD-1900L-PAN Specifications (Cont.)
Rear Panel Components (Cont.):
Micro-USB Port:
USB Ports (2):
Touch Panel Display:
Display Type:
Display Size
(W x H):
Viewable Area
(W x H):
Viewing Angle:
Screen Resolution
(W x H):
Aspect Ratio
(W x H):
Brightness:
Contrast Ratio:
Color Depth:
Backlight Type:
Touch Overlay:
Communications:
Ethernet:
USB:
Near Field
Communications
(NFC):
Bluetooth:
Video:
Streaming/File Formats: MPEG-TS for MPEG2; HTTP for MJPEG
Video Conferencing:
Audio:
Streaming/File Formats: WAV, MP3
Intercom:
Operating Environment:
Dimensions (HWD):
Weight:
Certifications:
Included Accessories:
Other AMX Equipment
NOTE: The MXD-1900L-PAN-P-NC (FG5968-22) and MXD-1900L-PAN-L-NC (FG5968-23)
No Comm touch panels do not have camera, microphone, or NFC capability. These
otherwise have all of the functionality of the MXD-1900L-PAN panels.
Installation Guide
19.4" Modero X Series® Panoramic Wall Touch Panel
5-pin Micro-USB connector used for video output from
camera video (Landscape Only) and microphone output only.
USB connectors used for keyboard and mouse connections,
or for firmware uploads. Side port may require right angle
mating connector (not included) for some configurations.
TFT Active Matrix Color LCD with In-Plane Switching (IPS)
technology.
• Landscape: 20.4" x 6.9" (519 mm x 175 mm)
• Portrait: 6.9" x 20.4" (175 mm x 519 mm)
• 20.4" (518 mm) diagonal
• Landscape: 18.7" x 5.9" (475 mm x 151 mm)
• Portrait: 5.9" x 18.7" (151 mm x 475 mm)
• 19.4" (493 mm) diagonal
• Vertical: ± 89°
• Horizontal: ± 89°
• Landscape: 1920x530
• Portrait: 530x1920
• Landscape: 18:5
• Portrait: 5:18
350 cd/m2
1000:1
16,7M colors
LED
Projected Capacitive; Multi-touch support, 3 simultaneous
max.
10/100 port, RJ-45 connector
2 - USB host 2.0, Type A ports
Supports standards ISO/IEC 15693, ISO/IEC 14443A,
ISO/IEC 14443B; Unique Identifier (UID), Typ Range=.25",
Max = .5"
HID Profile v1.1, Keyboard/Mouse Support, requires MXA-BT
Bluetooth Adaptor
External application using on-board camera and microphone
through Micro-USB connection.
Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)
• Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Landscape: 6.9" x 20.4" x 0.7" (175 mm x 519 mm x 19 mm)
• Portrait: 20.4" x 6.9" x 0.7" (519 mm x 175 mm x 19 mm)
7.0 lbs (3.18 Kg)
• UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• MXD-1900L-PAN Installation Template (68-5968-02)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• 3.5mm Locking Captive Wire Connector (41-0002-SA)
• MXD-1900L-PAN Back Box (68-5968-02)
• PSN4.4 4.4AMP, 13.5VDCA5 Power Supply (FG423-45)
• MXA-BT Bluetooth USB Adaptor (FG5968-19)
• MXA-USB-C USB Cover Kit (FG5968-18)
• CB-MXP Panoramic Rough-In Box (FG039-15)
