AMX MXD-430 Installation Manual

Overview
The MXD-430 4.3" Modero X Series
available in portrait mode only, includes a beautiful capacitive multi-touch screen that
provides users access to multiple applications with minimal navigation. This new
generation of touch panels is built for usability, offering edge-to-edge capacitive touch
glass with multi-touch capabilities. It features advanced technology empowering users
to operate AV equipment seamlessly, while providing the ultimate in audio and video
quality. With a lightning fast processor, brilliant graphics and enhanced capabilities,
the Modero X Series is the control surface that simply delivers more.
For more information on installation and configuration, please refer to the MXD-430
Operation Reference Guide, available at www.amx.com.
Left LED
Sleep Button
NFC Sensor

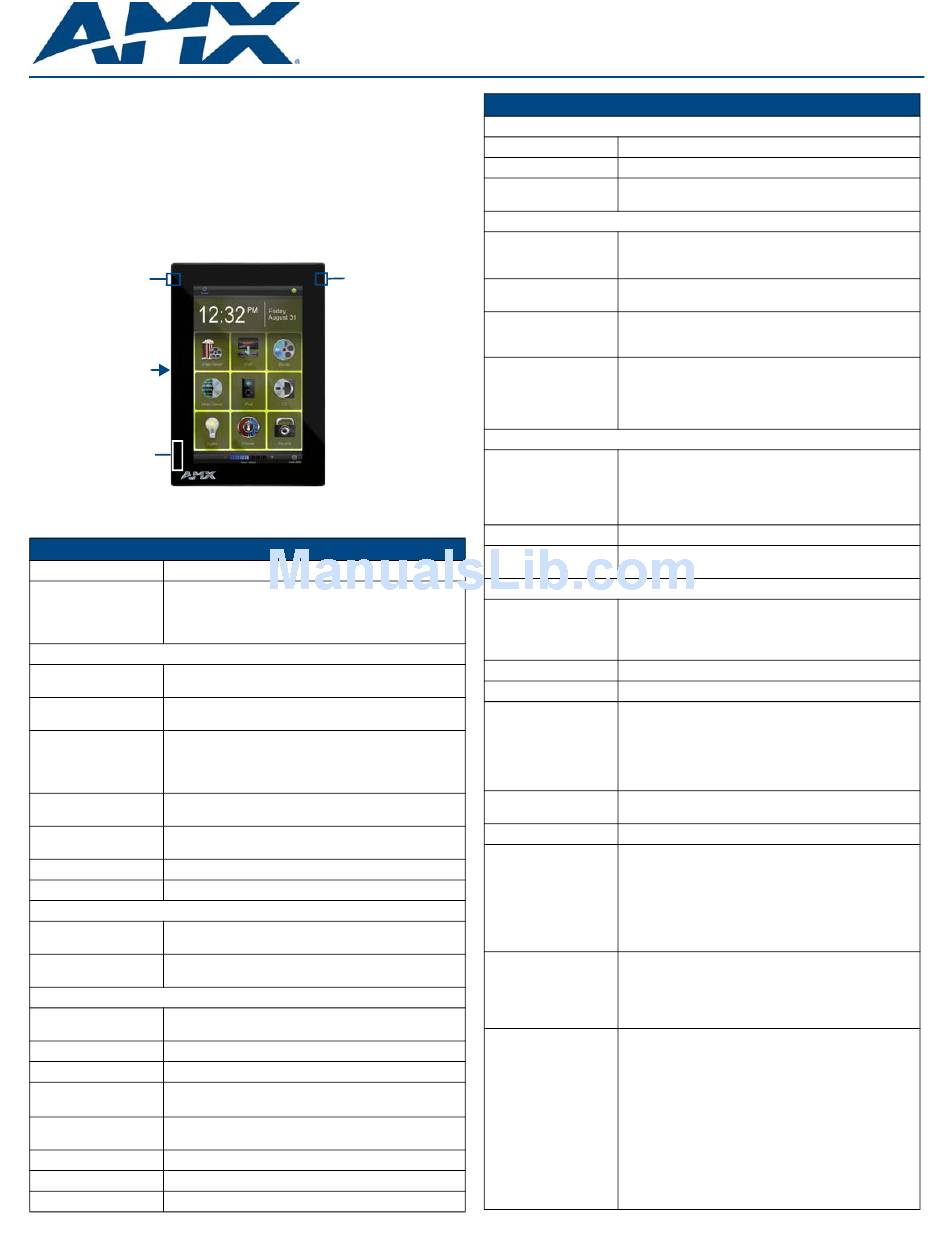

FIG. 1
MXD-430

Product Specifications

MXD-430 (FG5968-15) Specifications
Power: PoE (Power over Ethernet), 802.3af, class 3
Power Consumption: • Full-On: 6.5 W maximum
• Standby: 4.2 W
• Shutdown: 1.9 W
• Startup Inrush Current: Not Applicable due to PoE standard
Front Panel Components:
NFC Transceiver: Antenna and transceiver for Near Field Communications
device detection and interaction.
Light Sensor: Photosensitive light detector for automatic adjustment of the
panel brightness.
Motion Sensor: Proximity detector to wake the panel when it is approached.
• Typical Range: 1 foot (30.48 cm)
• Maximum Range: 3 feet (91.44 cm)
• Range width: 10 degrees
LED Indicator: Two programmable red/green LEDs on the left and right sides
of the touch panel.
Sleep Button: Single button on left side for placing panel in sleep mode, for
powering off the panel, and for accessing the Settings Pages.
Microphone: -42dB ± 3dB sensitivity FET mic
Speaker: 4 ohm, 2 Watt, 300Hz cutoff frequency
Rear Panel Components:
USB Port: USB connector used for keyboard and mouse connections, or
for firmware uploads.
Ethernet 10/100 Port 10/100 Base-T RJ-45 connector for Ethernet connectivity and
and Cable: PoE.
Touch Panel Display:
Display Type: TFT Active Matrix Color LCD with In-plane Switching
Technology (IPS)
Display Size: 3.3 x 4.8" (82 mm x 120 mm), 4.9" (119 mm) diagonal
Viewable Area: 2.2" x 3.7" (56 mm x 94 mm), 4.3" (109 mm) diagonal
Viewing Angle: • Vertical: ± 80°
• Horizontal: ± 80°
Screen Resolution 480x800
(W x H):
Aspect Ratio (W x H): 9:16
Brightness: 550 cd/m2
Contrast Ratio: 1000:1
MXD-430
®
Wall/Flush Mount Touch Panel (FG5968-15),
Right LED
4.3" Modero X Series
MXD-430 (FG5968-15) Specifications (Cont.)
Touch Panel Display (Cont.):
Color Depth: 16.7M colors
Backlight Type: LED
Touch Overlay: Projected Capacitive; Multi-touch support, 3 simultaneous
max.
Communications:
Ethernet: 10/100 port, RJ-45 connector.
Supported IP and IP-Based Protocols: UCP, TCP, ICMP,
ICSP, IGMP,DHCP, Telnet, FTP, DNS, RFB (for VNC), HTTP
USB: (1) USB host 2.0, Type A ports: Firmware upgrade, Touch
Panel File Transfer, JPEG Image Viewer
Near Field Supports standards ISO/IEC 15693, ISO/IEC 14443A, ISO/
Communications IEC 14443B; Unique Identifier (UID), Typ Range=.25",
(NFC): Max = .5"
Bluetooth: • Mouse/Keyboard: HID Profile v1.1 (Requires MXA-BT
Bluetooth Adapter)
• Handset: Hands Free Profile v1.5, Headset Profile v1.2
(Requires MXA-BT Bluetooth Adapter and MXA-HST
Bluetooth Handset)
Video:
Supported Video • MPEG-2-TS: MPEG-2 Main Profile@High Level up to 720p
Codecs: at 25 fps (decode only)
• MJPEG up to 720p at 25 fps (decode only)
• MPEG-2-TS: H.264 High Profile@Layer 4
• AAC-LC up to 720p at 25 fps (encode/decode)
Streaming/File Formats: MPEG-TS for MPEG2 and H.264; HTTP for MJPEG
Maximum Number of One decode
Active Video Streams:
Audio:
Supported Audio • MP2 Layer I and II, MP3 (8 kHz, 11.025 kHz, 12 kHz, 16
Codecs: kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz)
• AAC-LC (8 kHz, 96 kHz)
• G.711 with MuLaw (VoIP encode/decode at 8kHz)
File Formats: WAV, MP3
Intercom: Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)
Operating Environment: • Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Power ("Heat") Dissipation: On: 22.2 BTU/hr, Standby: 14.3
BTU/hr
Dimensions (HWD): Portrait Only:4 7/8" x 3 1/4" x 2 3/8"
(120 mm x 82 mm x 61 mm)
Weight: 0.80 lbs (0.36 kg)
Certifications: • UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• RoHS/WEEE compliant
Included Accessories: • MXD-430 Installation Guide (93-5968-15)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• Wall Unit Mounting Pad (66-59668-26)
• MXD-430 Installation Template (68-5968-05)
• MXD-430 Back Box (68-5968-05)
Other AMX Equipment: • MXA-MP, Modero X Series Multi Preview (FG5968-20)
• MXA-MPL, Modero X Series Multi Preview Live
(FG5968-10)
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant
(FG423-83)
• MXA-BT Bluetooth USB Adapter for Modero X Series
(FG5968-19)
• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch
(FG2178-63)
• MXA-HST, Bluetooth Handset for Modero X Series Touch
Panels (FG5968-17)
• CSG, Communications Gateway (FG2182-01,-02,-03)
Installation Guide
®
Wall/Flush Mount Touch Panel
