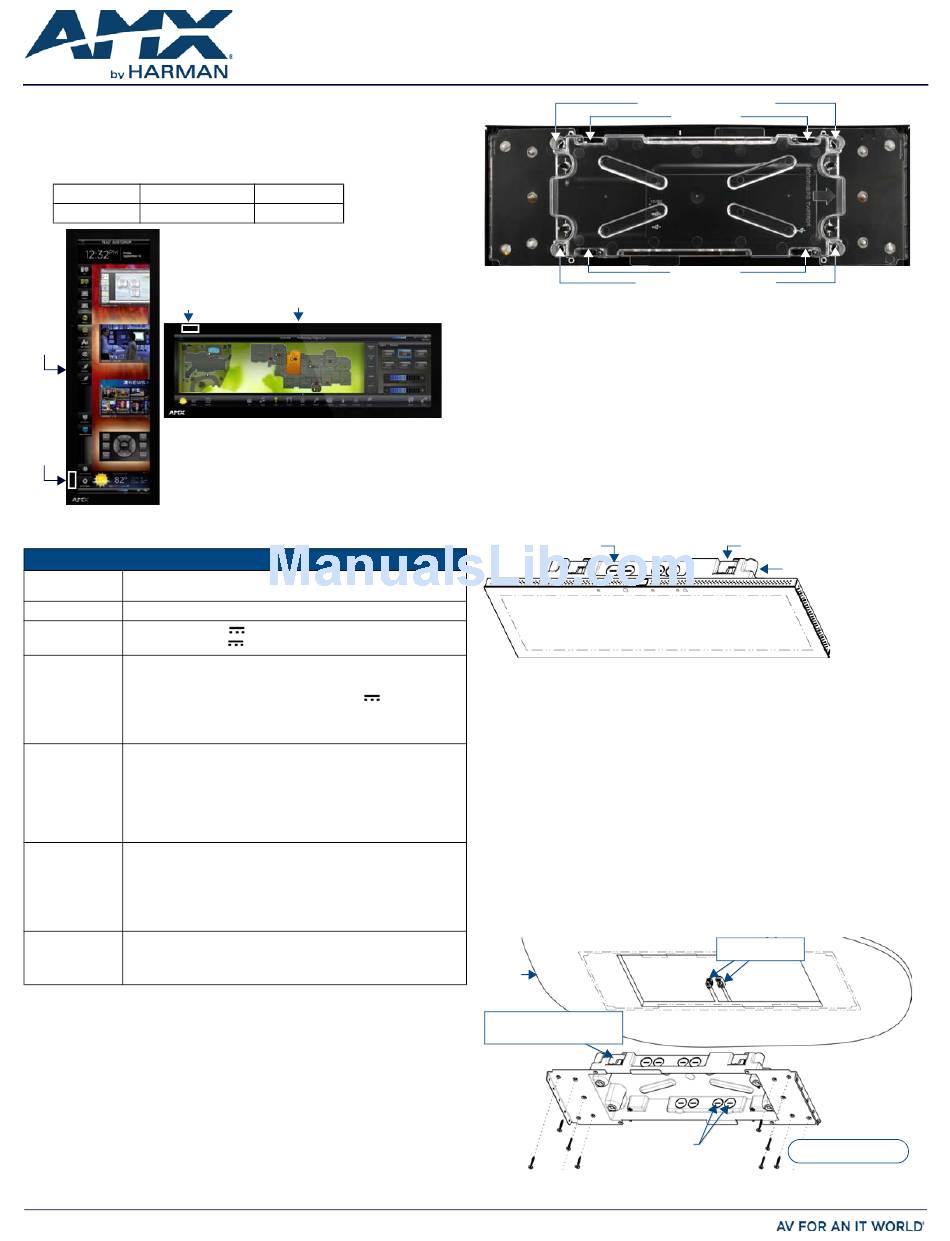

AMX MXD-1900L-PAN Quick Start Manual

Overview

The MXD-1900L-PAN 19.4" Modero X Series
beautiful, panoramic capacitive multi-touch screen that provides users access to multiple
applications with minimal navigation. It is hardware-ready for support of Near Field
Communication™ (NFC) Technology to allow integration with NFC capable personal devices.
The MXD-1900L-PAN is available in Portrait and Landscape layouts:
Portrait MXD-1900L-PAN-P
Landscape MXD-1900L-PAN-L
NFC Sensor
Sleep
Button
NFC
Sensor
MXD-1900L-PAN-P
MXD-1900L-PAN-P/L (PORTRAIT AND LANDSCAPE)
FIG. 1
Product Specif ications
MXD-1900L-PAN SPECIF ICATIONS
Dimensions (HWD) • Landscape: 6 7/8" x 20 3/8" x 11/16" (175mm x 519mm x 19mm)
• Portrait: 20 3/8" x 6 7/8" x 11/16" (519mm x 175mm x 19mm)
Weight 7.0 lbs (3.18 Kg)
Power Consumption
• Full-On: 35 W (13.5V
• Standby: 7 W (13.5V
External Power Requires one of these AMX power sources (not included):
Supply Required • PSR4.4 Power Supply, 4.5A, 3.5 mm Phoenix with Retention Screws
(FG423-46)
• PSN4.4 Power Supply, 4.5A, 3.5 mm Phoenix, 13.5V
(FG423-45)
• MXA-MPL Modero X Series Multi Preview Live (FG5968-10)
• MXA-MP Modero X Series Multi Preview (FG5968-20)
Certifications • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• UL 60950-1
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32°F to 104°F (0°C to 40°C)
• Temperature (Storage): 4°F to 140°F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 109.2 BTU/hr
Standby: 10.6 BTU/hr
Included • Locking 2-pin Phoenix mate (41-0002-SA)
Accessories • MXA-USB-C, USB Port Cover Kit (FG5968-18)
• MXA-CLK, Modero X Series Cleaning Kit (FG5968-16)
• Installation Template 19.4" (68-5968-02)
Note: The MXD-1900L-PAN-P-NC (FG5968-22) and MXD-1900L-PAN-L-NC (FG5968-23) No
Comm touch panels do not have camera, microphone, or NFC capability. These otherwise have
all of the functionality of the MXD-1900L-PAN panels.

MXD-1900L-PAN Installation

• For more detailed installation instructions including important notes on thermal
concerns with Rack and Wall installations, refer to the X-Series Touch Panels
MXD/T-2000XL-PAN & MXD/T-1900L-PAN Instruction Manual. (available to view/
download from www.amx.com).
• Detailed specifications drawings for the MXD-1900L-PAN are available to download from
www.amx.com.
The MXD-1900L-PAN may be installed directly into a solid surface environment, using either
solid surface screws or the included locking tabs for different mounting options. Once
installed, the MXD-1900L-PAN is contained within a clear outer housing known as the
Backbox. The Backbox is removed to install it into a wall, or when using the optional Rough-In
Box accessory(FG039-15).
MXD-1900L-PAN
®
Panoramic Wall Mount Touch Panel features a
FG5968-06
FG5968-12
Sleep Button
MXD-1900L-PAN-L
, 2.6A)
, 0.52A)
(discontinued)
19.4" Modero X
Temporary Mounting Posts
Temporary Mounting Posts
MXD-1900L-PAN BACKBOX
FIG. 2
Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary
method for securing the Backbox to the surface. For thin walls or solid surfaces, use mounting
screws (not included).

Installing the MXD-1900L-PAN Into a Wall

The MXD-1900L-PAN comes with a clear plastic Backbox (FIG. 2) designed to attach the panel
to most standard wall materials. This Backbox has four locking tabs (2 on top, 2 on bottom) to
help lock the Backbox to the wall.
These locking tabs are only extended AFTER the Backbox is inserted into the wall.
• When installing the Backbox, make sure that the assembly is in the correct position and
in the correct place. Once the locking tabs are extended and locked into place, removing
the Backbox may be difficult without having access to the back of the wall or causing
damage to the wall.
• In order to ensure a stable installation of the MXD-1900L-PAN, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The mounting surface should also be smooth and flat.
The Backbox also has four slots for accepting the temporary mounting posts mounted
on the back of the device.
Backbox knockouts (X8)
MXD-1900L-PAN (LANDSCAPE)
FIG. 3

Installing the Backbox

Since the cutout for the Backbox is off-center from the edges of the touch panel, use the
included Installation Template (68-5968-02) to ensure proper placement. The template is
marked on one side with directions for both landscape and portrait installations to ensure that
the touch panel and Backbox are properly aligned.
WARNING: Using the Installation template to select the f inal placement of the Backbox is highly
recommended. The outside edges of the template are the same dimensions as the touch panel,
which allows you to troubleshoot possible conflicts with wall edges, doors, and other potential
obstacles.
1. Prepare the area by removing any screws or nails from the drywall before beginning the
cutout process.
2. After ensuring proper placement, cut out the mounting surface for the Backbox, using
the (included) Installation Template as a guide.
CAUTION: Making sure that the actual cutout opening is slightly smaller than the provided
dimensions is highly recommended. This provides a margin of error if the opening needs to
be expanded. Too little wall material removed is always better than too much.
3. Thread the incoming cables from their terminal locations through the surface opening
(see FIG. 4 on reverse).
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
Wall
4X Installation Clamp
For Wall Thickness
.37 [12.01] to .98 [25.01]
8X Knock Outs
Remove For Cable
Routing As Needed
MXD-1900L-PAN BACKBOX INSTALLATION (LANDSCAPE)
FIG. 4
QUICK START GUIDE
®
Series Wall Mount Touch Panel
Locking Tabs
Locking Tabs
Locking tabs (X4)
Backbox
Cables routed to
wall opening
Mounting screws
placement (optional)
