AMX MXD-700 Quick Start Manual

Overview

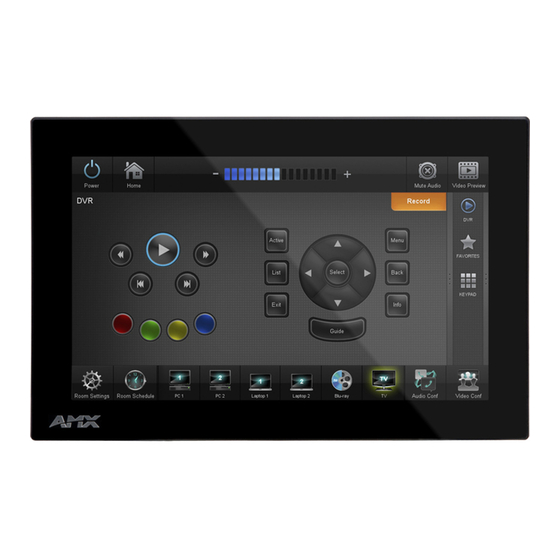

The MXD-700 7" Modero X Series® Wall/Flush Mount Touch Panel, available in
portrait (MXD-700-P: FG5968-08) and landscape (MXD-700-L: FG5968-14) models,
includes a beautiful capacitive multi-touch screen that provides users access to
multiple applications with minimal navigation. This new generation of touch panels is
built for usability, offering edge-to-edge capacitive touch glass with multi-touch
capabilities. It features advanced technology empowering users to operate AV
equipment seamlessly, while providing the ultimate in audio and video quality. With a
lightning fast processor, brilliant graphics and enhanced capabilities, the Modero X
Series is the control surface that simply delivers more.
For more information on installation and configuration, please refer to the
MXT/MXD-700 Operation Reference Guide, available at www.amx.com.

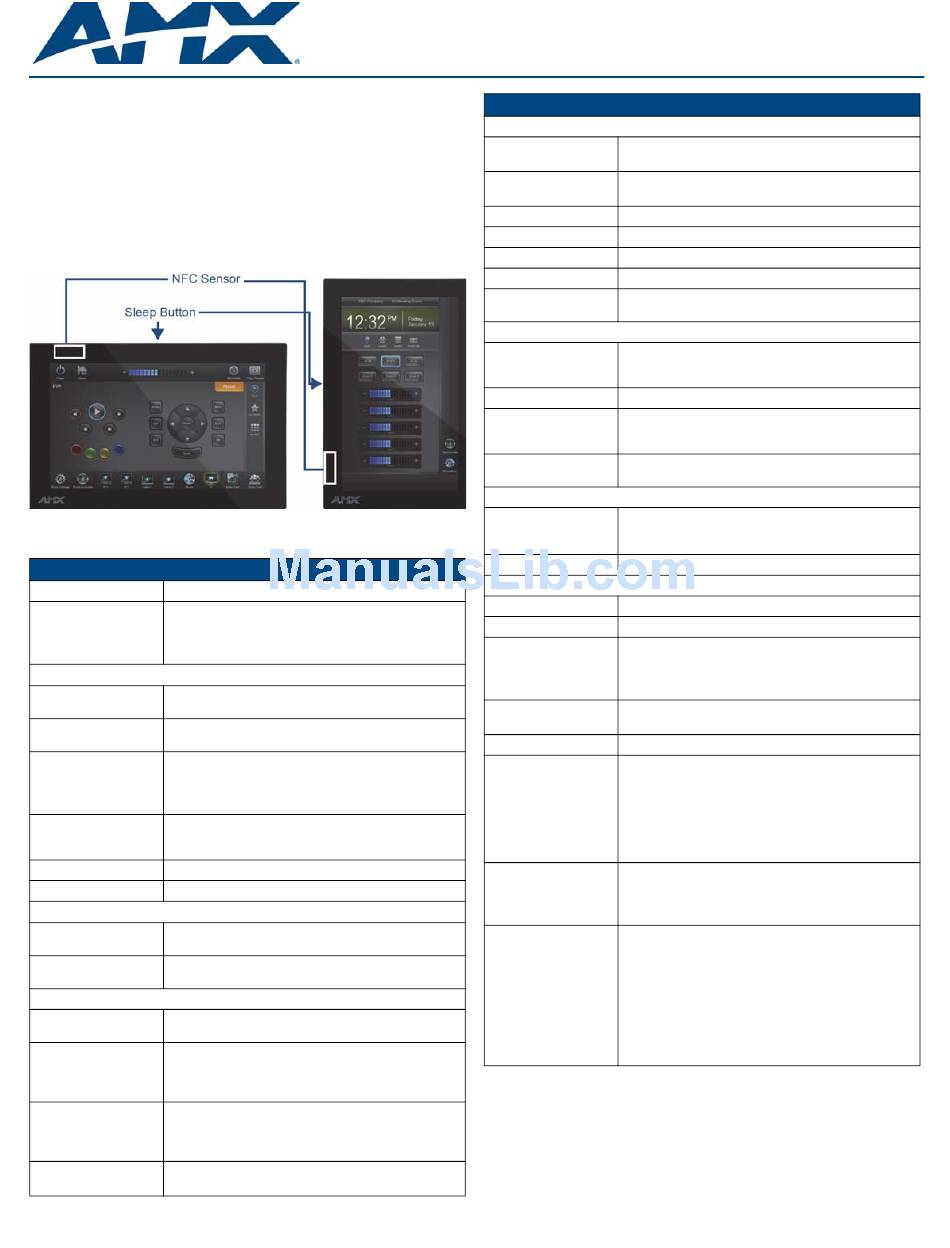

FIG. 1 MXD-700, Landscape and Portrait

Product Specifications

MXD-700 (FG5968-08/14) Specifications
Power: PoE (Power over Ethernet), 802.3af, class 3
Power Consumption: • Full-On: 8W maximum
• Standby: 3.2 W
• Shutdown: 1 W
• Startup Inrush Current: Not Applicable due to PoE standard
Front Panel Components:
NFC Transceiver: Antenna and transceiver for Near Field Communications
device detection and interaction.
Light Sensor: Photosensitive light detector for automatic adjustment of the
panel brightness.
Motion Sensor: Proximity detector to wake the panel when it is approached.
• Typical Range: 1 foot (30.48 cm)
• Maximum Range: 3 feet (91.44 cm)
• Range width: 10 degrees
Sleep Button: Single button on top of panel (Landscape) or left side
(Portrait) for placing panel in sleep mode, for powering off the
panel, and for accessing the Settings Pages.
Microphone: -42dB ± 3dB sensitivity FET microphone
Speakers: 4 ohm, 2 Watt, 300Hz cutoff frequency
Rear Panel Components:
USB Port: USB connector used for keyboard and mouse connections, or
for firmware uploads.
Ethernet 10/100 Port 10/100 Base-T RJ-45 connector for Ethernet connectivity and
and Cable: PoE.
Touch Panel Display:
Display Type: TFT Active Matrix Color LCD with In-Plane Switching (IPS)
technology.
Display Size: • Landscape: 7.3" x 4.8" (186 mm x 122 mm), 8.8" (222 mm)
diagonal
• Portrait: 4.8" x 7.3" (122 mm x 186 mm), 8.8" (222 mm)
diagonal
Viewable Area: • Landscape: 6.05" x 3.54" (154 mm x 90 mm), 7.0" (178 mm)
diagonal
• Portrait: 3.54" x 6.05" (90 mm x 154 mm), 7.0" (178 mm)
diagonal
Viewing Angle: • Vertical: ± 89°
• Horizontal: ± 89°
MXD-700
7" Modero X Series® Wall/Flush Mount Touch Panel
MXD-700 (FG5968-08/14) Specifications (Cont.)
Touch Panel Display (Cont.):
Screen Resolution
(W x H):
Aspect Ratio (W x H):
Brightness:
Contrast Ratio:
Color Depth:
Backlight Type:
Touch Overlay:
Communications:
Ethernet:
USB:
Near Field
Communications
(NFC):
Bluetooth:
Video:
Supported Video
Codecs:
Streaming/File Formats: MPEG-TS for MPEG-2; HTTP for MJPEG
Audio:
Streaming/File Formats: WAV, MP3
Intercom:
Operating Environment:
Dimensions (HWD):
Weight:
Certifications:
Included Accessories:
Other AMX Equipment:
NOTE: The MXD-700-P-NC (FG5968-28) and MXD-700-L-NC (FG5968-29) No Comm touch
panels do not have microphone capability. These otherwise have all of the functionality of the
MXD-700 panels.
Quick Start Guide
• Landscape: 1024x600
• Portrait: 600x1024
• Landscape: 16:9
• Portrait: 9:16
400 cd/m2
800:1
16,7M colors
LED
Projected Capacitive; Multi-touch support, 3 simultaneous
max.
10/100 port, RJ-45 connector and cable. Supported IP and IP-
based protocols: UCP, TCP, ICMP, ICSP, IGMP, DHCP, Telnet,
FTP, DNS, RFB (for VNC), HTTP
1 - USB host 2.0, Type A ports
Supports standards ISO/IEC 15693, ISO/IEC 14443A, ISO/
IEC 14443B; Unique Identifier (UID), Typ Range=.25",
Max = .5"
HID Profile v1.1, Keyboard/Mouse Support, requires MXA-BT
Bluetooth Adaptor.
• MPEG2-TS: MPEG-2 Main Profile @High Level up to 720p
at 25 fps (decode only)
• MJPEG up to 720p at 25 fps (decode only)
Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)
• Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Landscape: 4.8" x 7.3" x 2.5" (122 mm x 186 mm x 63 mm)
• Portrait: 7.3" x 4.8" x 2.5" (186 mm x 122 mm x 63 mm)
1.4 lbs (0.64 Kg)
• UL
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• RoHS
• MXD-700 Installation Guide (93-5968-07)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• MXD-700 Installation Template (68-5968-04)
• MXD-700 Back Box (68-5968-04)
• PS-POE-AF-TC, POE Injector, 802.3af Compliant
(FG423-83)
• MXA-BT Bluetooth USB Adaptor (FG5968-19)
• NXA-ENET8-2POE, Gigabit Switch, 8 Port POE, 2 Port
SFP (FG2178-63)
• CB-MXP7, Rough-In Box and Cover Plate for Modero X
Series Touch Panel, 7" (FG039-18)
• MXA-MPL, Modero X Series Multi Preview Live
(FG5968-10)
• MXA-MP, Modero X Series Multi Preview (FG5968-20)
