AMX Modero X Series Installation Manual

Overview

The MXD-1000 10.1" Modero X® Series Wall/Flush Mount Touch Panel, available in
portrait (FG5968-07) and landscape (FG5968-13) models, provides several industry
firsts, including a beautiful, panoramic capacitive multi-touch screen that provides
users access to multiple applications with minimal navigation. This new generation of
touch panels is built for usability, offering edge-to-edge capacitive touch glass with
multi-touch capabilities. It features advanced technology empowering users to operate
AV equipment seamlessly, while providing the ultimate in audio and video quality. With
a lightning fast processor, brilliant graphics and enhanced capabilities, the Modero X
Series is the control surface that simply delivers more.
For more information on installation and configuration, please refer to the
MXT/MXD-1000 Operation Reference Guide, available at www.amx.com.
NFC Sensor
Sleep Button

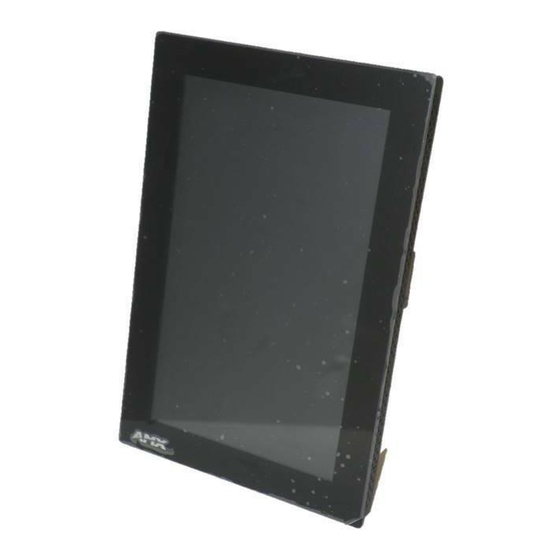

FIG. 1 MXD-1000, Landscape and Portrait

Product Specifications

MXD-1000 (FG5968-07/13) Specifications
Power: PoE (Power over Ethernet), 802.3af, class 3
Power Consumption: • Full-On: 8W maximum
• Standby: 3.2 W
• Shutdown: 1 W
Front Panel Components:
Light Sensor: Photosensitive light detector for automatic adjustment of the
panel brightness.
Motion Sensor: Proximity detector to wake the panel when it is approached.
• Typical Range: 1 foot (30.48 cm)
• Maximum Range: 3 feet (91.44 cm)
• Range width: 10 degrees
LED Indicator: Camera with active indicator (Landscape only)
Sleep Button: Single button on top of panel (Landscape) or left side
(Portrait) for placing panel in sleep mode, for powering off the
panel, and for accessing the Settings Pages.
Microphone: -42dB ± 3dB sensitivity FET microphone
Speakers: 4 ohm, 2 Watt, 300Hz cutoff frequency
Camera: HD 720P camera for video conferencing/video chat support
(Landscape only).
Rear Panel Components:
USB Port: USB connector used for keyboard and mouse connections, or
for firmware uploads.
Micro-USB Port: 5-pin Micro-USB connector used for camera video and
microphone output only.
Ethernet 10/100 Port 10/100 Base-T RJ-45 connector for Ethernet connectivity and
and Cable: PoE.
Touch Panel Display:
Display Type: TFT Active Matrix Color LCD with In-Plane Switching (IPS)
technology.
Display Size: • Landscape: 9.9" x 6.7" (252 mm x 170 mm), 12.0" (304 mm)
diagonal
• Portrait: 6.7" x 9.9" (170 mm x 252 mm), 12.0" (304 mm)
diagonal
Viewable Area: • Landscape: 8.5" x 5.3" (217mm x 136mm), 10.1" (257mm)
diagonal
• Portrait: 5.3" x 8.5" (136 mm x 217 mm), 10.1" (257mm)
diagonal
MXD-1000
10.1" Modero X® Series Wall/Flush Mount Touch Panel
MXD-1000 (FG5968-07/13) Specifications (Cont.)
Touch Panel Display (Cont.):
Viewing Angle:
Screen Resolution
(W x H):
Aspect Ratio (W x H):
Brightness:
Contrast Ratio:
Color Depth:
Backlight Type:
Touch Overlay:
Communications:
Ethernet:
USB:
Near Field
Communications
(NFC):
Bluetooth:
Video:
Supported Video
Codecs:
Streaming/File Formats: MPEG-TS for MPEG-2; HTTP for MJPEG
Video Conferencing:
Audio:
Streaming/File Formats: WAV, MP3
Intercom:
Operating Environment:
Dimensions (HWD):
Weight:
Certifications:
Included Accessories:
Other AMX Equipment:
Installation Guide
• Vertical: ± 80°
• Horizontal: ± 80°
• Landscape: 1280x800
• Portrait: 800x1280
• Landscape: 16:9
• Portrait: 9:16
400 cd/m2
700:1
16,7M colors
LED
Projected Capacitive; Multi-touch support, 3 simultaneous
max.
10/100 port, RJ-45 connector and cable. Supported IP and IP-
based protocols: UCP, TCP, ICMP, ICSP, IGMP, DHCP, Telnet,
FTP, DNS, RFB (for VNC), HTTP
1 - USB host 2.0, Type A ports
Supports standards ISO/IEC 15693, ISO/IEC 14443A, ISO/
IEC 14443B; Unique Identifier (UID), Typ Range=.25",
Max = .5"
HID Profile v1.1, Keyboard/Mouse Support, requires MXA-BT
Bluetooth Adaptor.
• MPEG2-TS: MPEG-2 Main Profile @High Level up to 720p
at 25 fps (decode only)
• MJPEG up to 720p at 25 fps (decode only)
External application using on-board camera and microphone
through Micro-USB connection (Landscape only)
Full Duplex VoIP, SIP v2.0 (supported with AMX-CSG)
• Operating Temperature: 32° F to 104° F (0° C to 40° C)
• Storage Temperature: 4° F to 140° F (-20° C to 60° C)
• Humidity Operating: 20% to 85% RH
• Humidity Storage: 5% to 85% RH
• Landscape: 6 11/16" x 9 7/8" x 2 5/8" (171 mm x 252 mm x
67 mm)
• Portrait: 9 7/8" x 6 11/16" x 2 5/8" (252 mm x 171 mm x 67
mm)
2.0 lbs (0.91 Kg)
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• RoHS
• MXD-1000 Installation Guide (93-5968-07)
• MXA-CLK Modero X Series Cleaning Kit (FG5968-16)
• MXD-1000 Installation Template (68-5968-03)
• PS-POE-AT, High Power PoE Injector (FG423-81)
• PS-POE-AF, POE Injector, 802.3af Compliant (FG423-83)
• MXA-BT Bluetooth USB Adaptor (FG5968-19)
• CB-MXP10 Rough-In Box and Cover Plate for the 10" Wall
Mount Modero X Series Touch Panels (FG039-17)
• NXA-ENET8POE, Gigabit PoE Ethernet Switch
(FG2178-62)
• NXA-ENET8-2POE, Gigabit Switch, 8 Port POE, 2 Port
SFP (FG2178-63)
