AMX MXD-701 Quick Start Manual

Overview

®

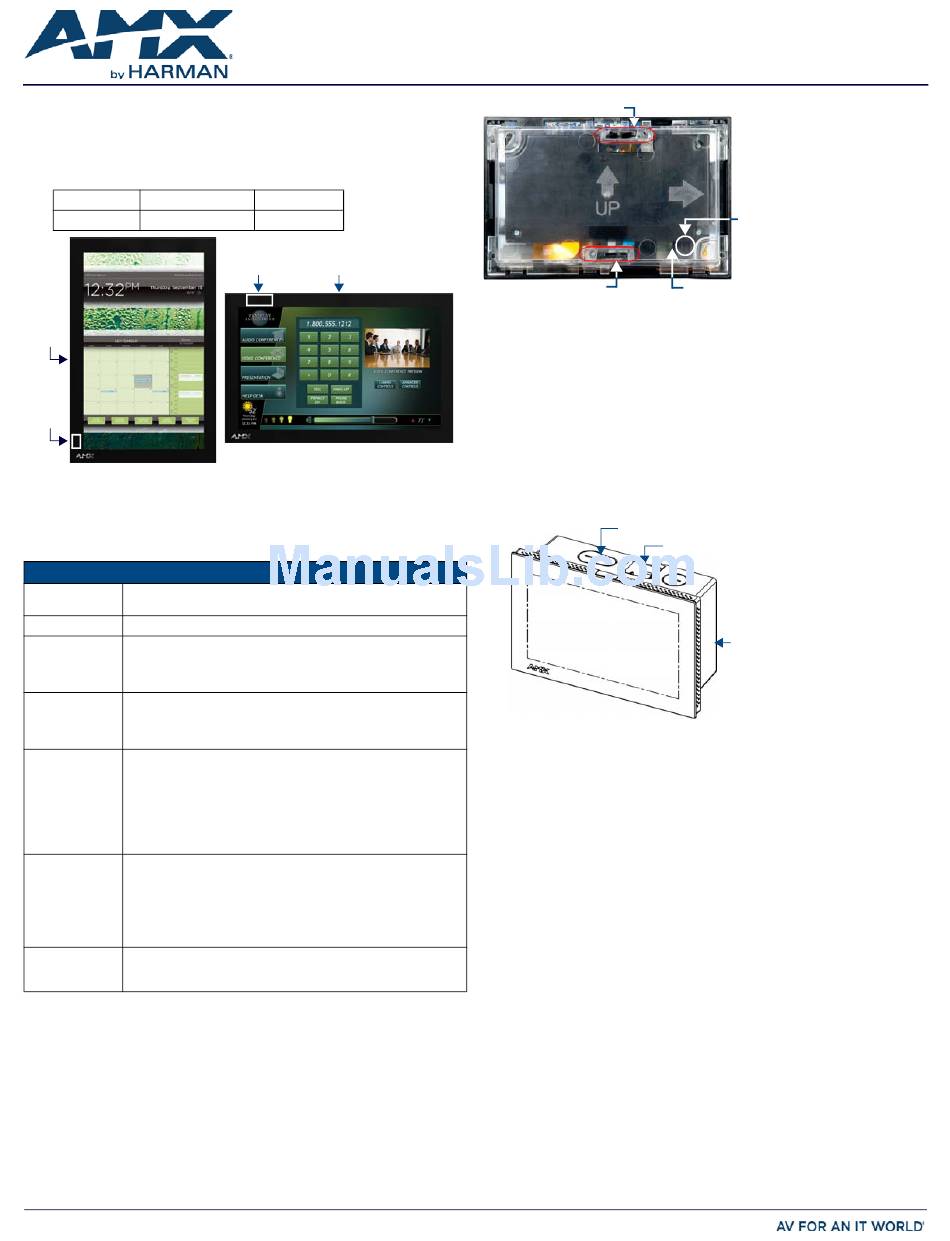

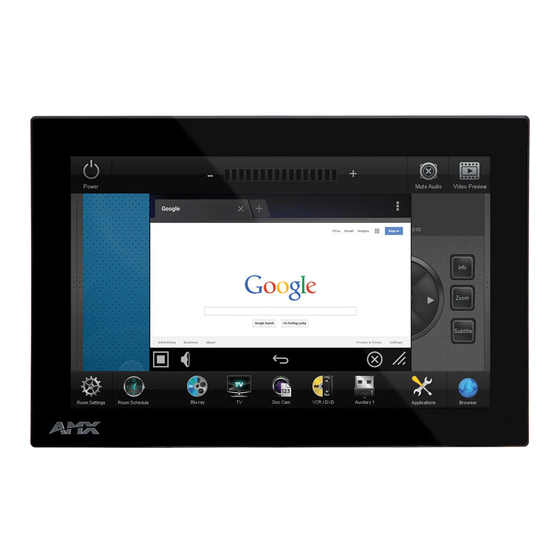

MXD-701 7" Modero X Series G5 Wall Mount Touch Panels feature the G5 Graphic
Engine as well as a Quad Core Processor. These panels feature edge-to-edge capacitive
touch glass with multi-touch capabilities. They feature advanced technology
empowering users to operate AV equipment seamlessly, while providing the ultimate in
audio and video quality. The MXD-701 is available in Portrait and Landscape layouts:
Portrait MXD-701-P
Landscape MXD-701-L
Sleep
Button
NFC
Sensor
MXD-701-P
MXD-701-P/L WALL MOUNT (PORTRAIT AND LANDSCAPE)
FIG. 1
Product Specif ications
For a full listing of product specifications, refer to the X-Series-G5 Touch Panels MXD/T-
1001 & MXD/T-701 Instruction Manual (available to view/download from
www.amx.com).
MXD-701 SPECIF ICATIONS
Dimensions (HWD) • Landscape: 4 13/16" x 7 5/16" x 2 1/2" (122mm x 186mm x 63mm)
• Portrait: 7 5/16" x 4 13/16" x 2 1/2" (186mm x 122mm x 63mm)
Weight 1.4 lbs (0.64 Kg)
Power • Full-On: 11.5W maximum
Consumption • Standby: 5.8W
• Shutdown: 1W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power Optimal performance requires use of one of the following AMX PoE
Supply Required power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
Certifications • FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022 Class B and EN 55024
• CB Scheme IEC 60950-1
• IC
• IEC/EN-60950
• UL 60950-1
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32° F to 104° F (0°C to 40°C)
• Temperature (Storage): 4° F to 140° F (-20°C to 60°C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 39.2 BTU/hr
Standby: 19.8 BTU/hr
Included • MXA-USB-C, USB Port Cover Kit (FG5968-18)
Accessories • MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)
• Installation Template 7"

MXD-701 Installation

The MXD-701 may be installed directly into a solid surface environment, using either
solid surface screws or the included locking tabs for different mounting options.
• For more detailed installation instructions including important notes on thermal
concerns with Rack and Wall installations, refer to the X-Series-G5 Touch Panels
MXD/T-1001 & MXD/T-701 Instruction Manual (available to view/download from
www.amx.com).
• Detailed specifications drawings for the MXD-701 are available to download from
www.amx.com.
Once installed, the MXD-701 is contained within a clear outer housing known as the
Backbox (FIG. 2). The Backbox is removed to install it into a wall, or when using the
optional Rough-In Box accessory (FG039-18).
MXD-701
FG5968-54
FG5968-55
NFC Sensor Sleep Button
MXD-701-L
7" Modero X Series
Locking tab
Locking tab
MXD-701 BACKBOX (REAR VIEW)
FIG. 2
Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary
method for securing the Backbox to the surface. For thin walls or solid surfaces, use
mounting screws (not included).
Power Via PoE
Power for the MXD-701 is supplied via PoE (Power Over Ethernet), utilizing an AMX-
certified, capacitive touch-compliant PoE injector or other approved AMX PoE power
source. The incoming Ethernet cable should be connected to the RJ45 port on the
MXD-701.
Installing the MXD-701 Into a Wall
The MXD-701 comes with a clear plastic Backbox (designed to attach the panel to most
standard wall materials. This Backbox has two locking tabs (one on top and one on
bottom) to help lock the Backbox to the wall.
These locking tabs are only extended AFTER the Backbox is inserted into the wall
(FIG. 3).
Backbox knockouts (X4)
MXD-701 (LANDSCAPE)
FIG. 3
• When installing the Backbox, make sure that the assembly is in the correct
position and in the correct place. Once the locking tabs are extended and locked
into place, removing the Backbox may be difficult without having access to the
back of the wall or causing damage to the wall.
• In order to ensure a stable installation of the MXD-701, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875
inches (2.22cm). The mounting surface should also be smooth and flat.

Installing the Backbox

For best results, use the included Installation Template (68-5968-04) to ensure proper
placement. The template is marked on one side with directions for both landscape and
portrait installations to ensure that the touch panel and Backbox are properly aligned.
WARNING: Using the Installation Template to select the f inal placement of the Backbox is
highly recommended. The outside edges of the template are the same dimensions as the
touch panel, which allows you to troubleshoot possible conflicts with wall edges, doors,
and other potential obstacles.
1. Prepare the area by removing any screws or nails from the drywall before
beginning the cutout process.
2. After ensuring proper placement, cut out the mounting surface for the Backbox,
using the (included) Installation Template as a guide.
CAUTION: Making sure the actual cutout opening is slightly smaller than the
provided dimensions is highly recommended. This provides a margin of error if the
opening needs to be expanded. Too little wall material removed is always better
than too much.
3. Thread the incoming Ethernet cable through the surface opening (FIG. 4).
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
4. Remove the Backbox knockouts and thread the incoming wiring through the
knockout holes.
5. Thread the incoming cables from the mounting surface opening and through the
knockouts.
6. Push the Backbox into the mounting surface. Insure that the locking tabs lie flush
against the Backbox and that the Backbox goes freely into the opening.
7. Extend the locking tabs on the sides of the Backbox by tightening the screws
inside the box until snug.
QUICK START GUIDE
®
G5 Wall/Flush Mount Touch Panel
RJ45 cable clip
RJ45 Cable/Port
Locking tabs (X2)
Backbox
