AMX MXD-700 Modero X Series Quick Start Manual

Overview
®

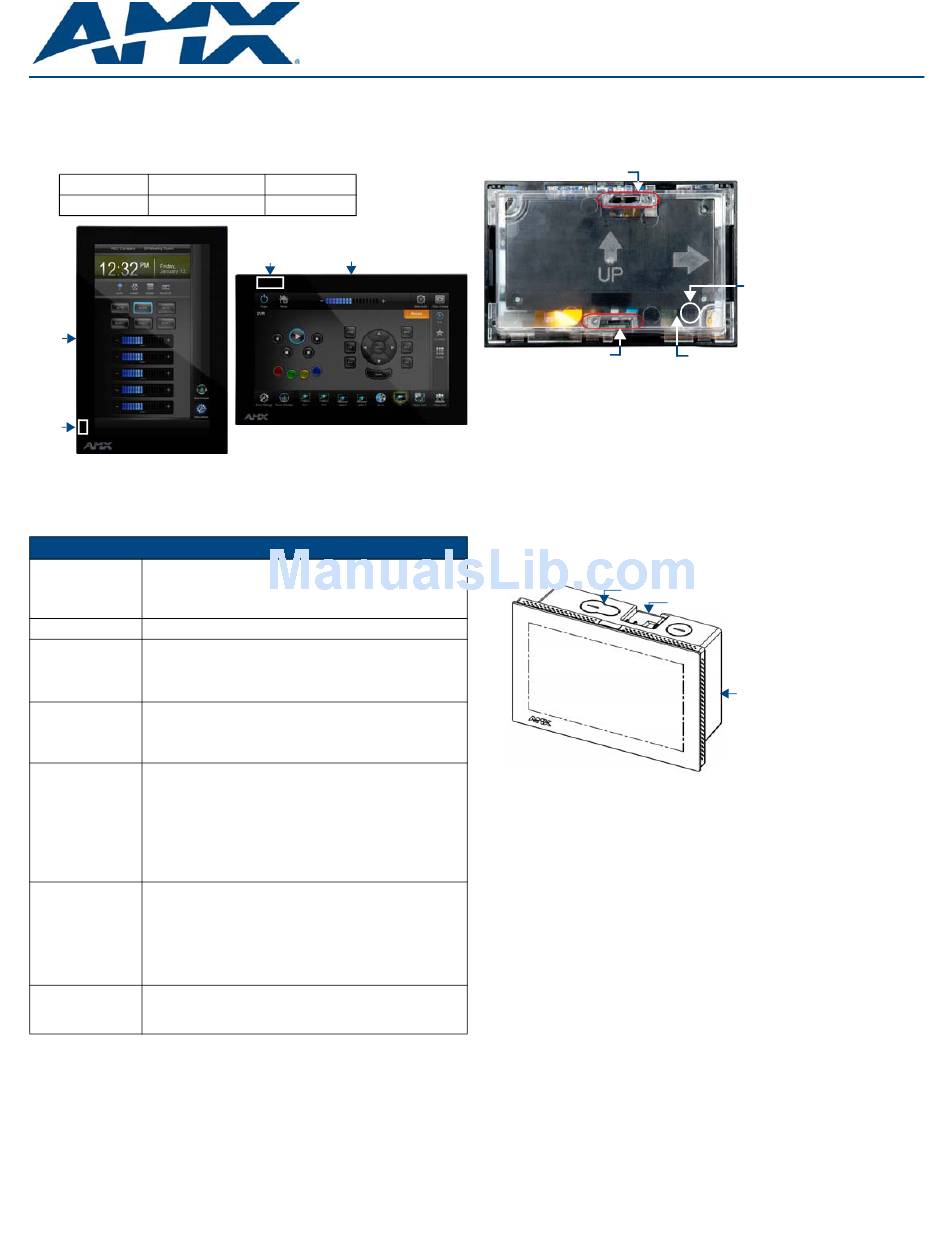

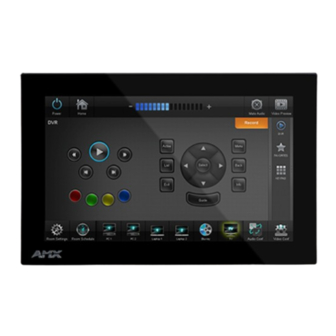

The MXD-700 7" Modero X Series Wall Mount Touch Panel features edge-to-edge
capacitive touch glass with multi-touch capabilities as well as advanced technology
empowering users to operate AV equipment seamlessly, while providing the ultimate in audio
and video quality. The MXD-700 is available in Portrait and Landscape layouts:
Portrait MXD-700-P
Landscape MXD-700-L
Sleep
Button
NFC
Sensor
MXD-700-P
FIG. 1 MXD-700-P/L Wall Mount (Portrait and Landscape)

Product Specifications

For a full listing of product specifications, refer to the X-Series Touch Panels MXD/T-1000,
MXD/T-700 & MXD-430 Instruction Manual (available to view/download from www.amx.com).
MXD-700 Specifications
Dimensions (HWD) • Landscape: 4 13/16" x 7 5/16" x 2 1/2"
(122 mm x 186 mm x 63 mm)
• Portrait: 7 5/16" x 4 13/16" x 2 1/2"
(186 mm x 122 mm x 63 mm)
Weight 1.4 lbs (0.64 Kg)
Power Consumption • Full-On: 8 W
• Standby: 3.2 W
• Shutdown: 1 W
• Start-Up Inrush Current: Not applicable due to PoE standard
External Power Optimal performance requires use of one of the following AMX
Supply Required PoE power supplies (not included):
• PS-POE-AF-TC, PoE Injector, 802.3AF Compliant (FG423-83)
• NXA-ENET8-2POE, Gigabit PoE Ethernet Switch (FG2178-63)
Certifications • UL 60950-1
• FCC Part 15 Class B
• C-Tick CISPR 22 Class B
• CE EN 55022, EN 55024 and EN 60950-1
• IEC 60950-1
• IC
• IEC/EN-60950
• RoHS/WEEE compliant
Environmental • Temperature (Operating): 32° F to 104° F (0° C to 40° C)
• Temperature (Storage): 4° F to 140° F (-20° C to 60° C)
• Humidity (Operating): 20% to 85% RH
• Humidity (Storage): 5% to 85% RH
• Power ("Heat") Dissipation:
On: 18.5 BTU/hr
Standby: 10.6 BTU/hr
Included Accessories • MXA-USB-C, USB Port Cover Kit (FG5968-18)
• MXA-CLK, Modero X/S Series Cleaning Kit (FG5968-16)
• MXD-700 Installation Template
Note: The MXD-700-P-NC (FG5968-28) and MXD-700-L-NC (FG5968-29) No Comm touch
panels do not have microphone capability. These otherwise have all of the functionality of the
MXD-700 panels.
MXD-700 Installation
• For more detailed installation instructions including important notes on thermal
concerns with Rack and Wall installations, refer to the X-Series Touch Panels
MXD/T-1000, MXD/T-700 & MXD-430 Instruction Manual (available to view/download
from www.amx.com).
• Detailed specifications drawings for the MXD-700 are available to download from
www.amx.com.
MXD-700
FG5968-08
FG5968-14
NFC Sensor Sleep Button
MXD-700-L
7" Modero X Series
The MXD-700 may be installed directly into a solid surface environment, using either solid
surface screws or the included locking tabs for different mounting options.
Once installed, the MXD-700 is contained within a clear outer housing known as the Backbox
(FIG. 2). The Backbox is removed to install it into a wall, or when using the optional Rough-In
Box accessory (FG039-18).
Locking tab
Locking tab
FIG. 2
MXD-700 Backbox (rear view)
Note: For typical mounting surfaces, such as drywall, use the locking tabs as the primary
method for securing the Backbox to the surface. For thin walls or solid surfaces, use
mounting screws (not included).

Power Via PoE

Power for the MXD-700 is supplied via PoE (Power Over Ethernet), utilizing an AMX-
certified, capacitive touch-compliant PoE injector or other approved AMX PoE power source.
The incoming Ethernet cable should be connected to the RJ45 port on the MXD-700.
Installing the MXD-700 Into a Wall
The MXD-700 comes with a clear plastic Backbox (designed to attach the panel to most
standard wall materials. This Backbox has two locking tabs (one on top and one on bottom)
to help lock the Backbox to the wall.
These locking tabs are only extended AFTER the Backbox is inserted into the wall (FIG. 3).
Backbox knockouts (X4)
FIG. 3 MXD-700 (Landscape)
• When installing the Backbox, make sure that the assembly is in the correct position
and in the correct place. Once the locking tabs are extended and locked into place,
removing the Backbox may be difficult without having access to the back of the wall or
causing damage to the wall.
• In order to ensure a stable installation of the MXD-700, the thickness of the wall
material must be a minimum of .50 inches (1.27cm) and a maximum of .875 inches
(2.22cm). The mounting surface should also be smooth and flat.

Installing the Backbox

For best results, use the included Installation Template (68-5968-04) to ensure proper
placement. The template is marked on one side with directions for both landscape and
portrait installations to ensure that the touch panel and Backbox are properly aligned.
WARNING: Using the Installation Template to select the final placement of the Backbox is
highly recommended. The outside edges of the template are the same dimensions as the
touch panel, which allows you to troubleshoot possible conflicts with wall edges, doors, and
other potential obstacles.
1. Prepare the area by removing any screws or nails from the drywall before beginning the
cutout process.
2. After ensuring proper placement, cut out the mounting surface for the Backbox, using the
(included) Installation Template as a guide.
CAUTION: Making sure the actual cutout opening is slightly smaller than the provided
dimensions is highly recommended. This provides a margin of error if the opening needs
to be expanded. Too little wall material removed is always better than too much.
3. Thread the incoming Ethernet cable through the surface opening (FIG. 4).
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
4. Remove the Backbox knockouts and thread the incoming wiring through the knockout
holes.
5. Thread the incoming cables from the mounting surface opening and through the
knockouts.
Quick Start Guide
®
Wall/Flush Mount Touch Panel
RJ45 cable clip
RJ45 Cable/Port
Locking tabs (X2)
Backbox
