1.4 Attaching Belt Loop System
The belt loop system consists of two parts:
A knob located on the back part of the printer just above the battery door
A strap with a click-on connector
To attach the strap, insert the knob located at the bottom of the printer into the slot of the
connector. Pull down until a click is heard; the printer is now secure. Place the loop over
your belt and allow the printer to hang from the left or right hip.
To release the printer, press inward on the two connector latches and pull the knob
clear of the slot.
Note: Do not force or pull the printer from the connector without pressing inward on the two
latches
Knob Connection
APEX2 User's Guide

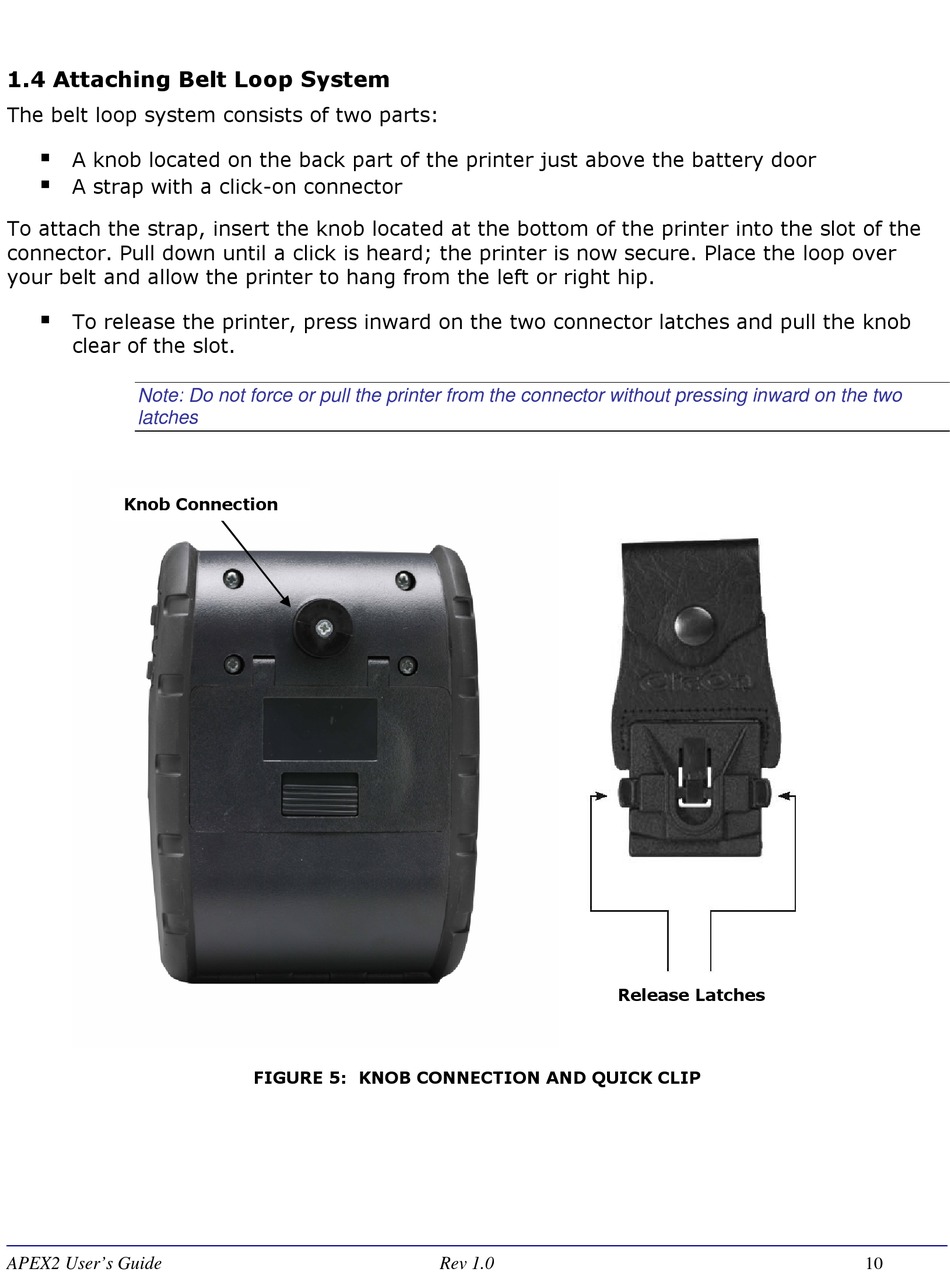

FIGURE 5: KNOB CONNECTION AND QUICK CLIP
Release Latches
Rev 1.0
10
