1.2.2 Charging the Battery


Plug the battery charger adaptor output cable into the battery charger connector as
shown.

Plug the battery charger adaptor into the
appropriate AC line voltage socket.

The Yellow/Amber charging LED will
illuminate indicating that the battery is
charging.

The battery will be fast charged and after
about 180 minutes the LED will turn off.

To remove the battery cartridge, open the
battery door and tip the battery out of the
printer.
Note: To ensure a full charge do not operate the printer while charging.
Note: The wall mounted charger is Class II equipment (
comply with most international standards. The wall mounted charger is not supplied with plugs
for use in Korea.

The wall mounted charger has the following specifications:
Model
Input Voltage/Current
Input Frequency
Output Voltage/Current (
Do not use a charger not approved by Extech for use with the APEX 2 series.
Use of an unapproved charger could damage the battery pack or the printer
and will void the warranty.
The battery terminals are well recessed inside the printer. Do not allow them
to contact conductive material since this may create a short circuit which
could cause injury or start a fire.
When using the wall mounted charger ensure the socket outlet is close to
the printer and easily accessible during the battery recharging process.
Either switch the socket off (if supplied with a socket switch) or pull out the
charger from the socket or disconnect the plug from the printer in the event
of any problems.
APEX2 User's Guide

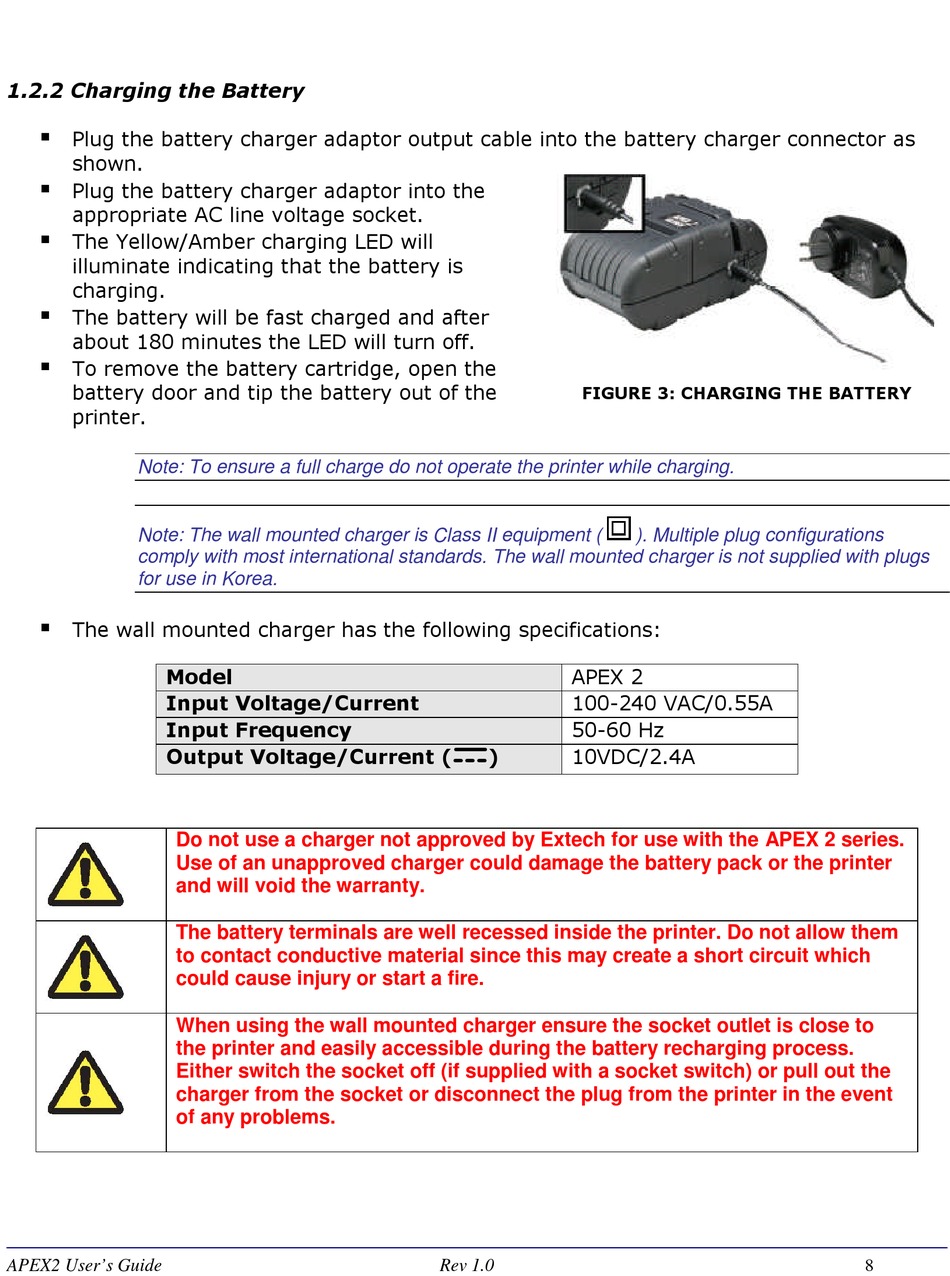

FIGURE 3: CHARGING THE BATTERY
APEX 2
100-240 VAC/0.55A
50-60 Hz
) 10VDC/2.4A
Rev 1.0
