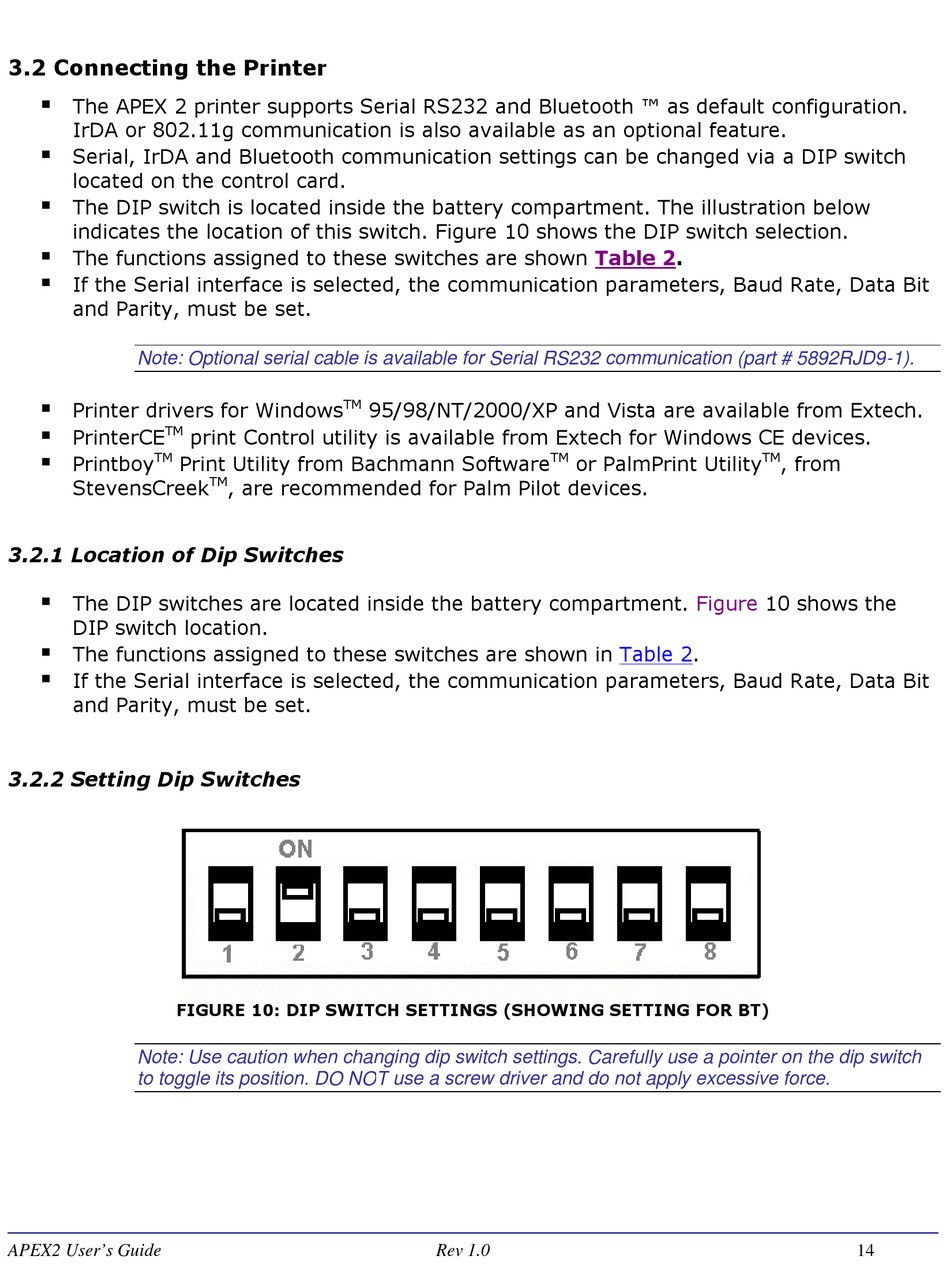

3.2 Connecting the Printer


The APEX 2 printer supports Serial RS232 and Bluetooth ™ as default configuration.
IrDA or 802.11g communication is also available as an optional feature.

Serial, IrDA and Bluetooth communication settings can be changed via a DIP switch
located on the control card.

The DIP switch is located inside the battery compartment. The illustration below
indicates the location of this switch. Figure 10 shows the DIP switch selection.

The functions assigned to these switches are shown

If the Serial interface is selected, the communication parameters, Baud Rate, Data Bit
and Parity, must be set.
Note: Optional serial cable is available for Serial RS232 communication (part # 5892RJD9-1).

Printer drivers for Windows

TM
PrinterCE

TM
Printboy Print Utility from Bachmann Software
StevensCreek
3.2.1 Location of Dip Switches

The DIP switches are located inside the battery compartment.
DIP switch location.

The functions assigned to these switches are shown in

If the Serial interface is selected, the communication parameters, Baud Rate, Data Bit
and Parity, must be set.
3.2.2 Setting Dip Switches
FIGURE 10: DIP SWITCH SETTINGS (SHOWING SETTING FOR BT)
Note: Use caution when changing dip switch settings. Carefully use a pointer on the dip switch
to toggle its position. DO NOT use a screw driver and do not apply excessive force.
APEX2 User's Guide
TM
print Control utility is available from Extech for Windows CE devices.
TM
, are recommended for Palm Pilot devices.
95/98/NT/2000/XP and Vista are available from Extech.
