1.2 Installing and Charging the Battery Cartridge

Note: One battery cartridge is included with the printer. Similar to a cordless phone battery, the
printer's battery must be charged before use.
Extech batteries must be cycled several times to achieve maximum capacity. To
cycle a battery, fully charge it and then allow a full discharge through normal use.
1.2.1: Installing the Battery
Note: Refer to the illustration below to install the battery pack in the printer.

Unlock the battery door by sliding the locking tab down.

Open the battery door to an angle of approx. 90 degrees. Do not force open.

Insert the battery as shown. (Non-contact side first, letting the contact end drop into place).

Close and lock the battery door by sliding the locking tab up.
Note: Ensure that the battery side with 2 contact terminals is facing down to make contact with
the spring probes inside the battery compartment
APEX2 User's Guide

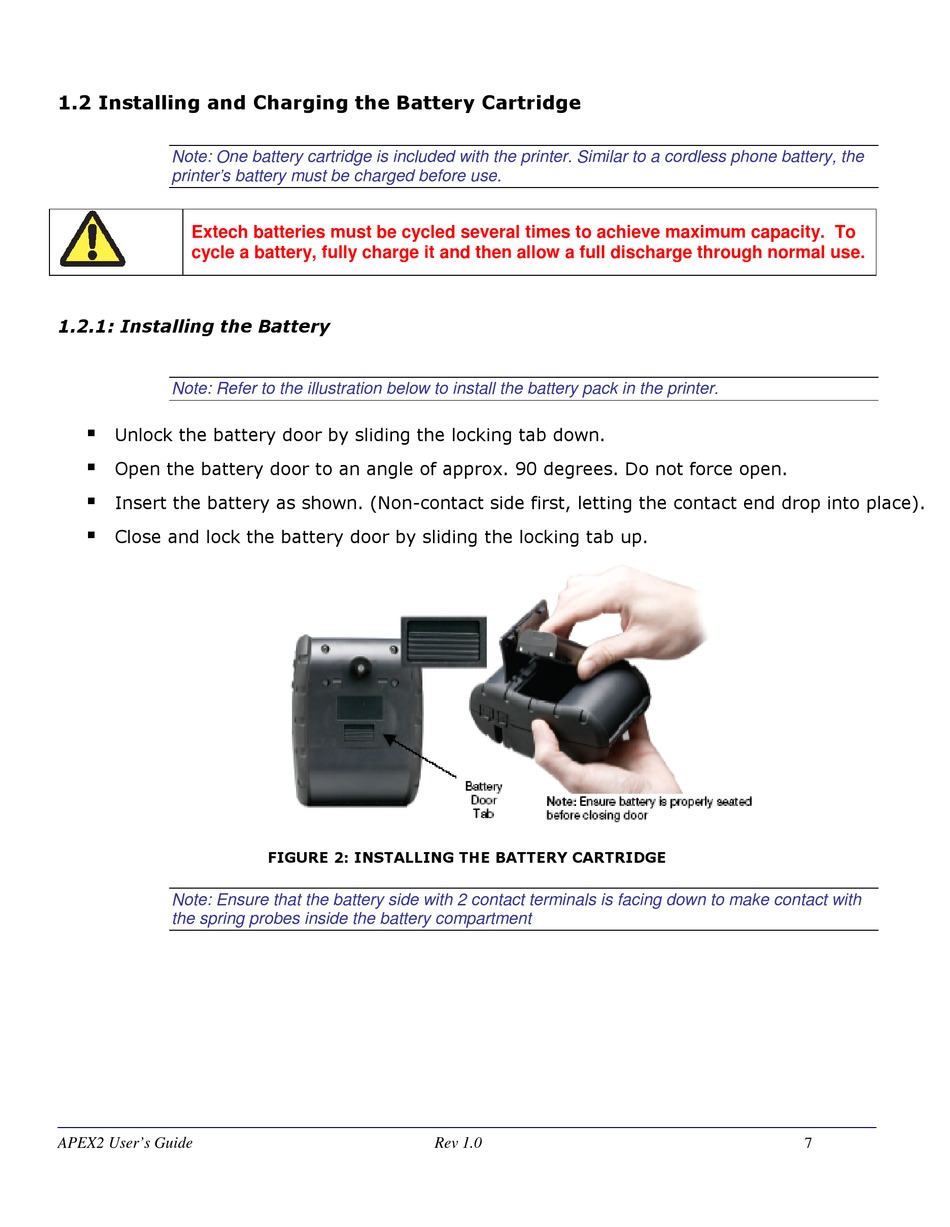

FIGURE 2: INSTALLING THE BATTERY CARTRIDGE
