Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Setting Up a Digicast Digital Satellite Receiver

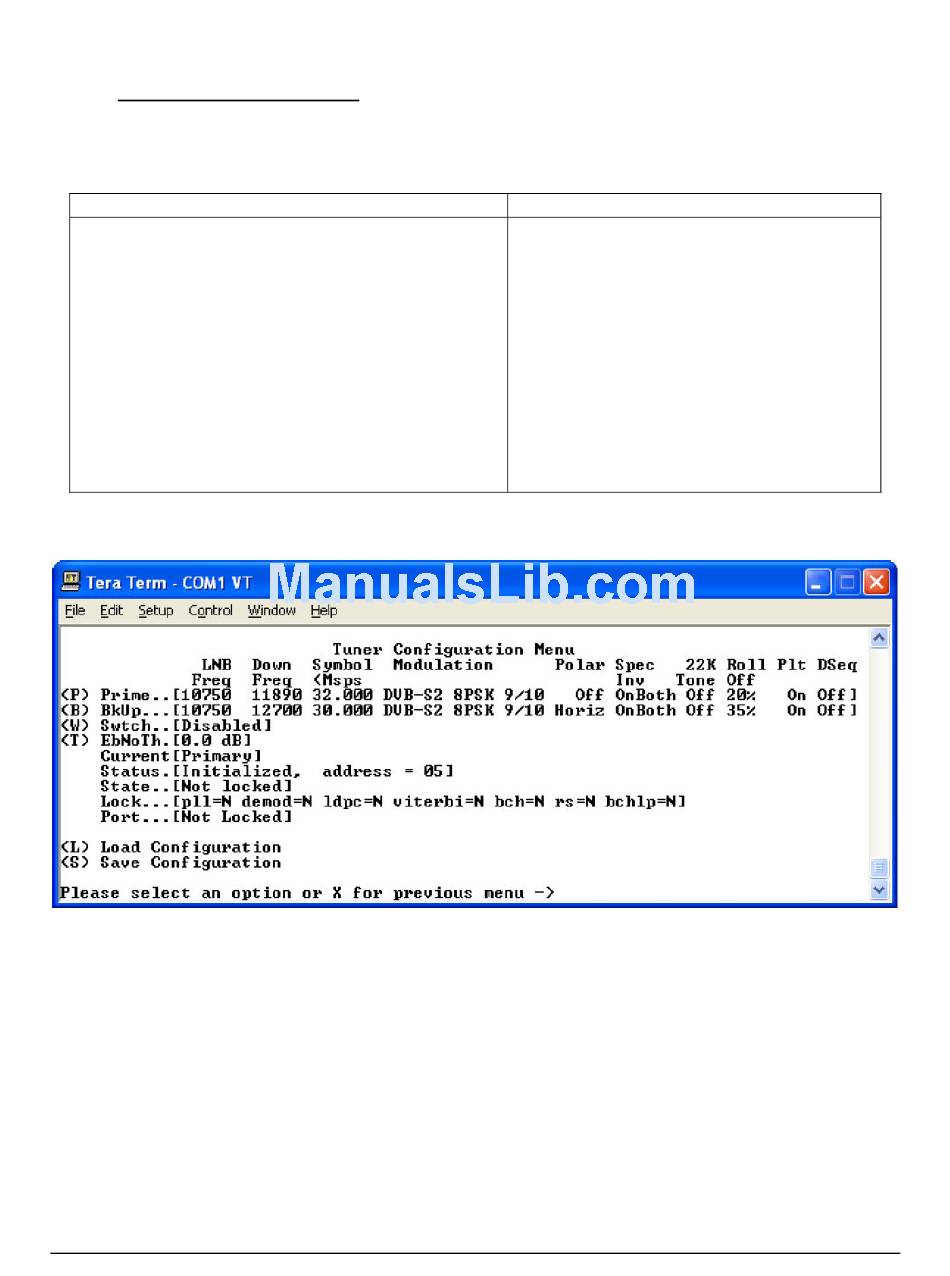

Terminal Interface Example
In the following Terminal interface graphic, the data is shown entered the same way for both the
primary and secondary frequency configurations. The frequencies used are as follows:
Primary (entered as L-Band format):
Ku-Band
LO = 10,750 MHz
Downlink Frequency = 11,890 MHz
L-Band Frequency = | 11,890 MHz – 10,750 MHz |
L-Band Frequency = 1,140 MHz
Symbol Rate = 32 Msps
DVB Type = DVB-S2
Modulation = 8-PSK
FEC = 9/10
Spectral Inversion = Both/On
Pilot = On (DVB-S2 Only)
Filter Roll Off = 20% (DVB-S2 Only)
Secondary (entered as standard format):
Ku-Band
LO = 10,750 MHz
Downlink Frequency = 12,700 MHz
Symbol Rate = 30 Msps
DVB Type = DVB-S2
Modulation = 8-PSK
FEC = 9/10
Spectral Inversion = Both/On
Pilot = Off (DVB-S2 Only)
Filter Roll Off = 35% (DVB-S2 Only)
