Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
4.2.9

Unicast Routing Configuration

The Unicast Routing Configuration page addresses the MR-S2's configuration for handling
Unicast traffic over the transport stream. This feature is only used in the MPE/IP configuration.
Allow Unicast
Selects whether the MR-S2 will support the routing of Unicast traffic.
Route unknown to default gateway
When selected, all incoming Unicast that is not destined for the CMR local network subnet will
be directed to the configured default gateway.
Filter on Satellite MAC (MPE/IP)
The hardware Media Access Control (MAC) address assigned for Unicast operation. When the
satellite MAC is defined, the MR-S2 will only route Unicast traffic that is specifically addressed
to the satellite MAC. This value does not affect the characteristics of multicast data flow.
Digicast receivers do not need to filter on MAC. Some third party encapsulators/receivers may
need to filter on MAC, and if the MAC is configured on the Encapsulator for a Unicast Route, do
not use the CMR-5975 Ethernet MAC – you will need to create your own MAC.

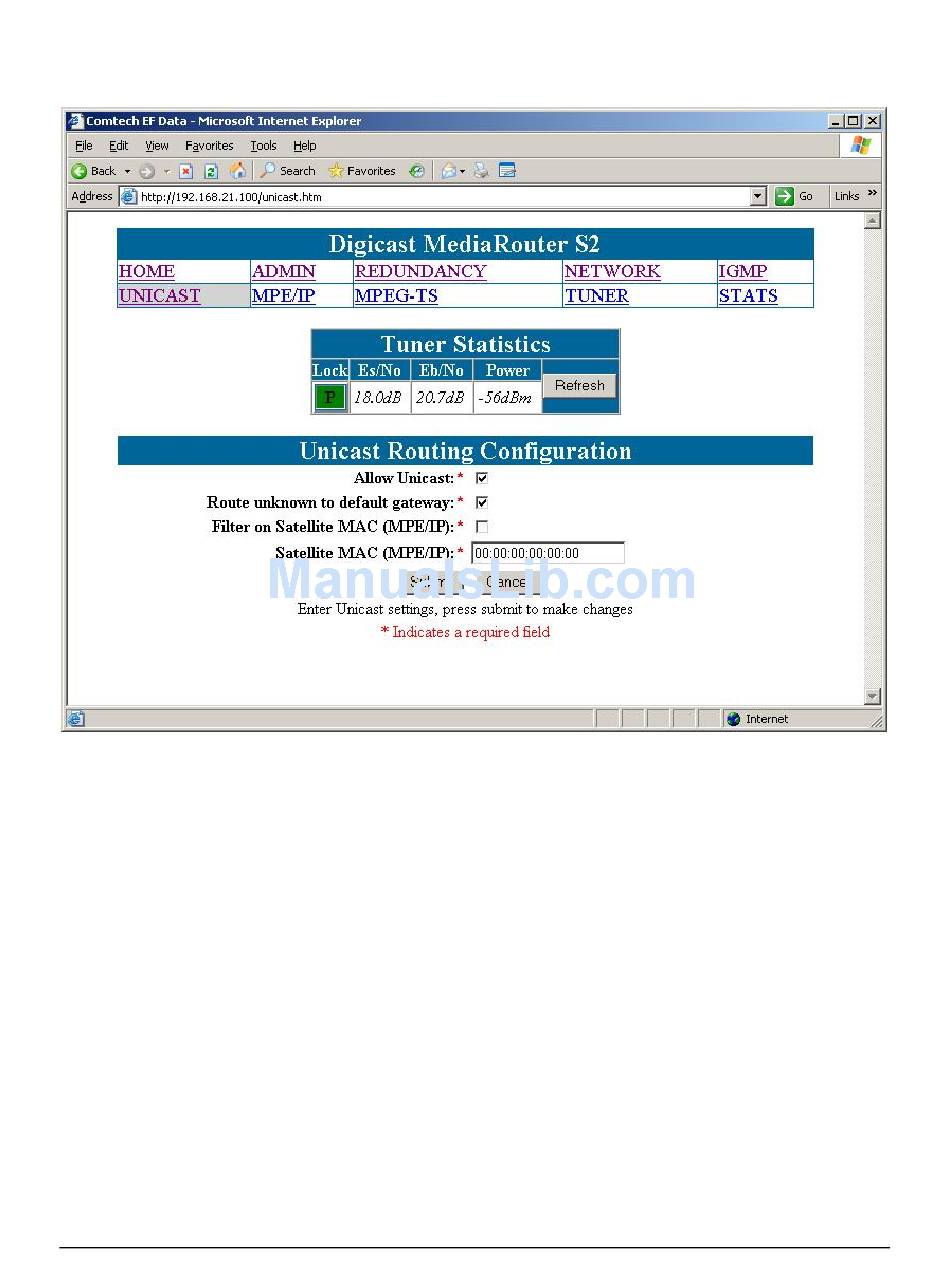

Figure 4-12. Unicast Routing Configuration page

4-14
Revision 3
MN-CMR5975-IOM
