Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
4.3.8

Unicast Routing Configuration Menu

The Unicast Routing Configuration page addresses the MR-S2's configuration for handling
Unicast traffic over the transport stream. This feature is only used in the MPE/IP configuration.
Allow Unicast
Selects whether the MR-S2 will support the routing of Unicast traffic.
Route unknown to default gateway
If an Address Resolution Protocol (ARP) cannot be achieved, then incoming
Unicast is directed to the configured default gateway.
Filter on TSD MAC (MPE/IP)
Allows the MR-S2 to route only Unicast that is specifically destined to this unit. The MAC
address in the MPE header must exactly match the configured TSD MAC field.
Satellite MAC (MPE/IP)
The hardware Media Access Control (MAC) address assigned for Unicast operation.

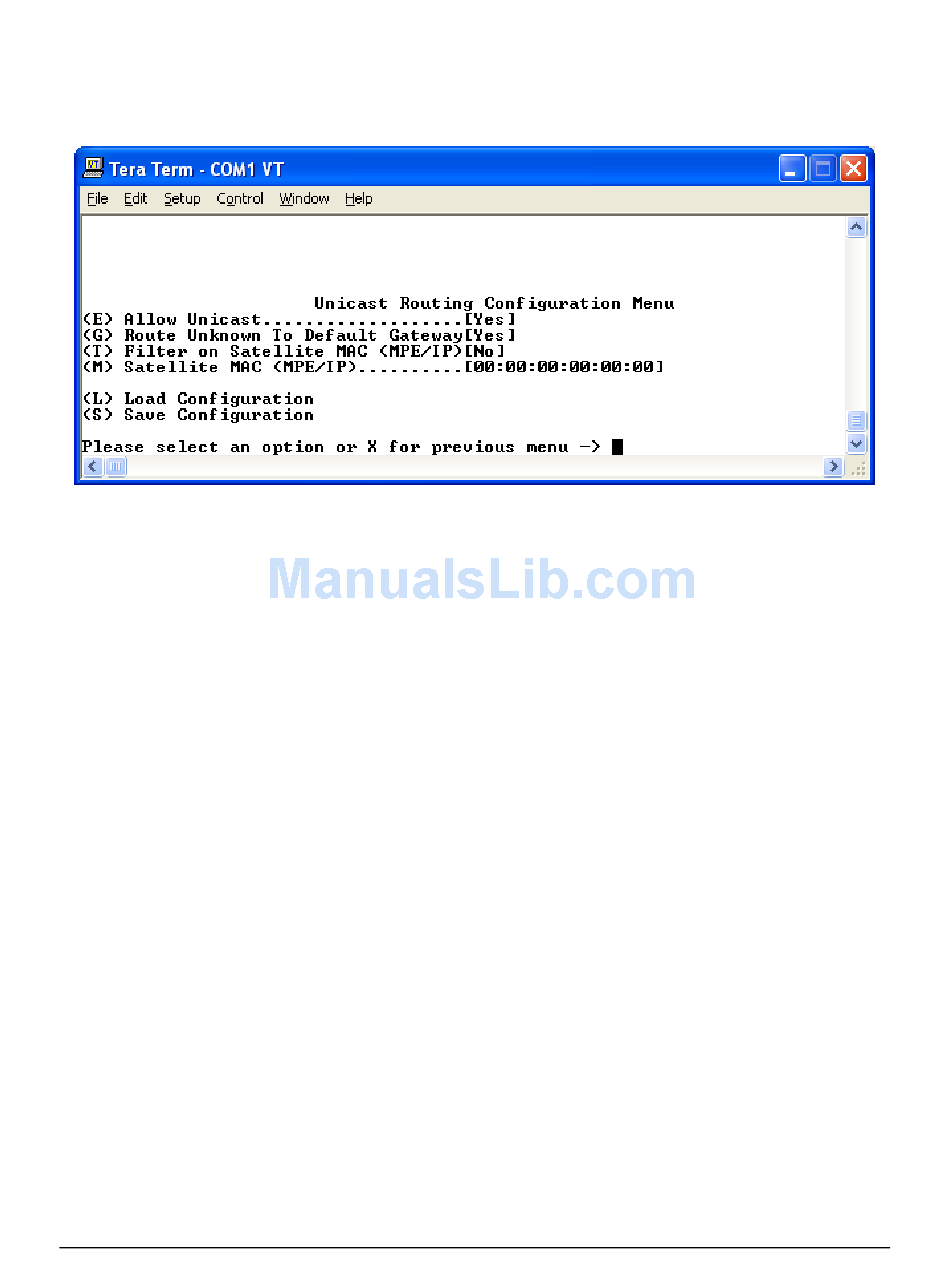

Figure 4-40. Unicast Routing Configuration Menu

4-47
Revision 3
MN-CMR5975-IOM
