Setting Up a Digicast Digital Satellite Receiver
D.4

Configure the Equipment

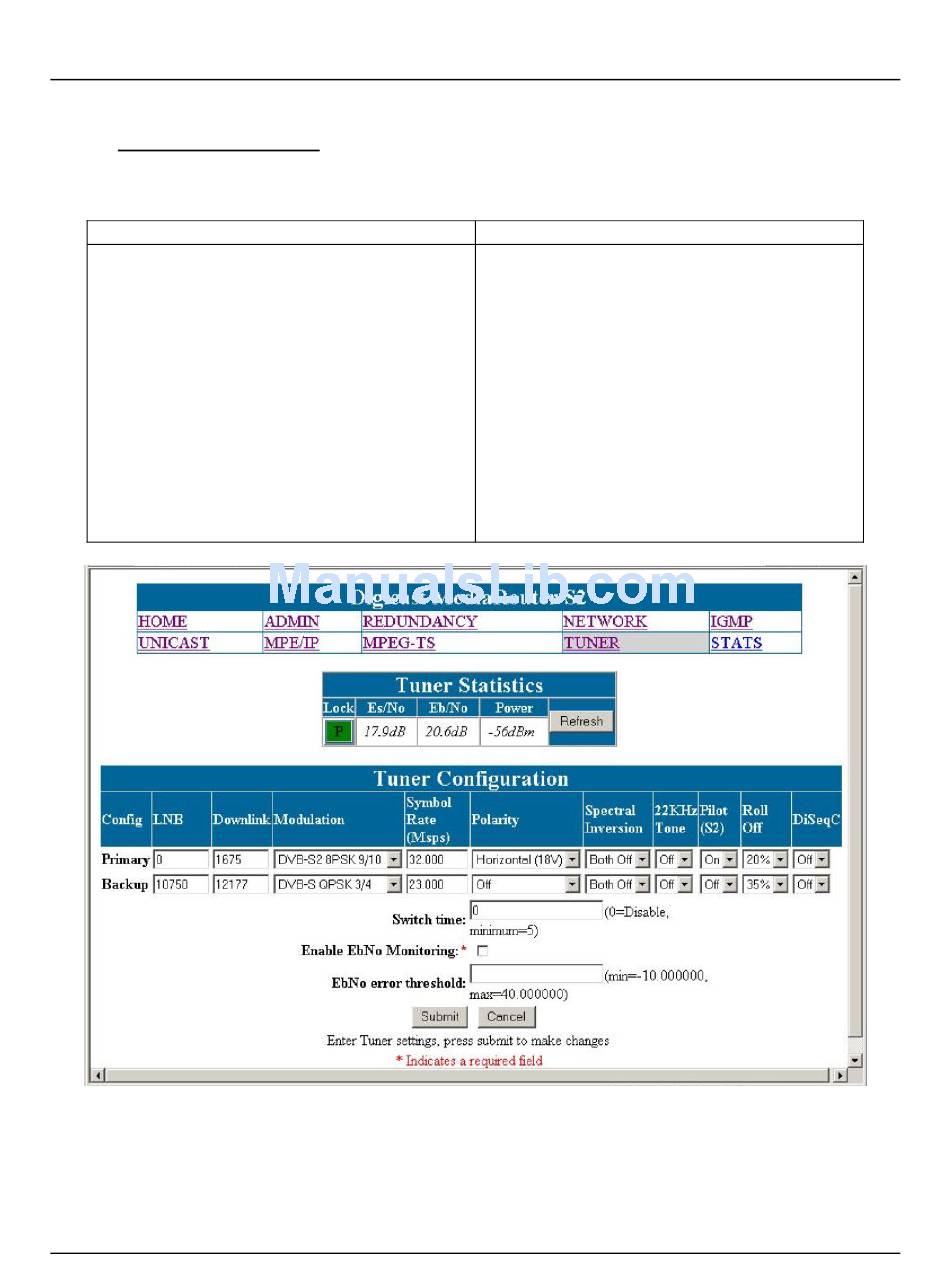

Web Interface Example
In the following Web interface graphic, the data is shown entered two different ways for the
primary and secondary frequency configurations. The frequencies used are as follows:
Primary (entered as L-Band format):
Ku-Band
LO = 10,750 MHz
Downlink Frequency = 12,425 MHz
L-Band Frequency = | 12,425 MHz – 10,750
MHz |
L-Band Frequency = 1,675 MHz
Symbol Rate = 32 Msps
DVB Type = DVB-S2
Modulation = 8-PSK
FEC = 9/10
Spectral Inversion = Both/Off
Pilot = On (DVB-S2 Only)
Filter Roll Off = 20% (DVB-S2 Only)
Secondary (entered as standard format):
Ku-Band
LO = 10,750 MHz
Downlink Frequency = 12,177 MHz
Symbol Rate = 23 Msps
DVB Type = DVB-S
Modulation = QPSK
FEC = 3/4
Spectral Inversion = Both/Off
Pilot = Off (DVB-S2 Only)
Filter Roll Off = 35% default (DVB-S2
Only)
