Digicast Media Router S2 Receiver CMR-5975 (MR-S2)
Device Management via User Interfaces
4.3.9.3 Tuner MPEG TS Configuration Menu
Name
The name of the incoming program that is extracted from the Program Service Information.
Program Number
The program number to be routed to the Ethernet as Transport Stream over IP.
PMT PID Number
The PMT PID to be routed to the Ethernet as Transport Stream over IP.
Destination IP
The IP address to be used when routing the Transport Stream over Ethernet IP.
Port Number
The Port Number to be used when routing the Transport Stream over Ethernet IP.
Enable
Enables or disables the route.

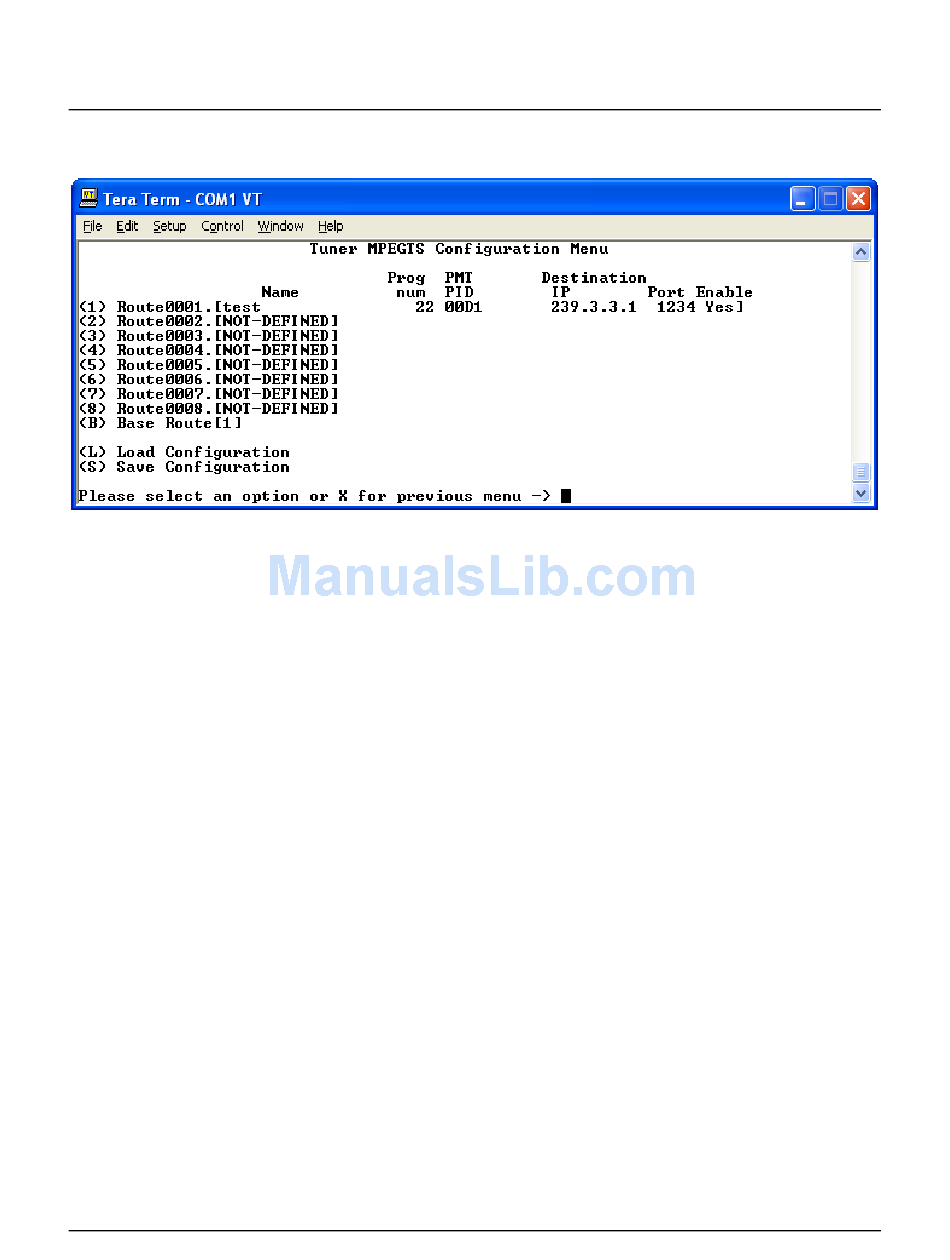

Figure 4-44. Tuner MPEG TS Configuration Menu

4-53
Revision 3
MN-CMR5975-IOM
