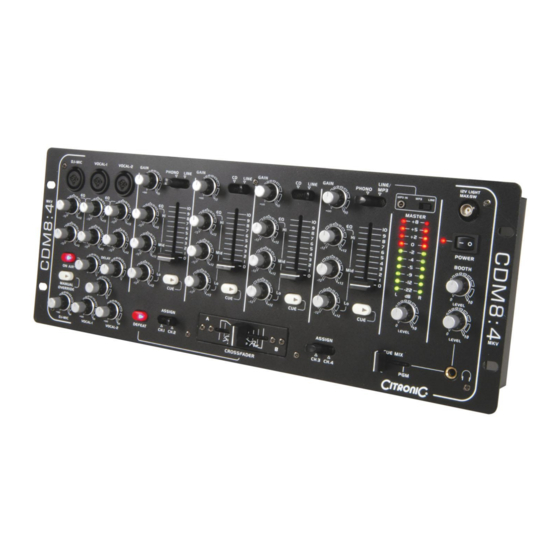

MAIN FEATURES
19" rack mountable (4U)
45mm rail glide replaceable crossfader with assign/defeat
3-band EQ on all stereo channels
DJ mic + 2 vocal mic inputs for karaoke
Internal digital delay or FX loop for vocal mics
Front panel 3.5mm input for personal media player
Individual gain control for each music channel
Hi & Lo EQ for each mic channel
12Vdc BNC output for console light
USER MANUAL
CDM8:4 mkV
Rackmount DJ Mixer
172.775UK
Version 1.0
©
2010
Advertisement
Table of Contents
Related Manuals for Citronic 172.775UK
Summary of Contents for Citronic 172.775UK
-
Page 1: User Manual

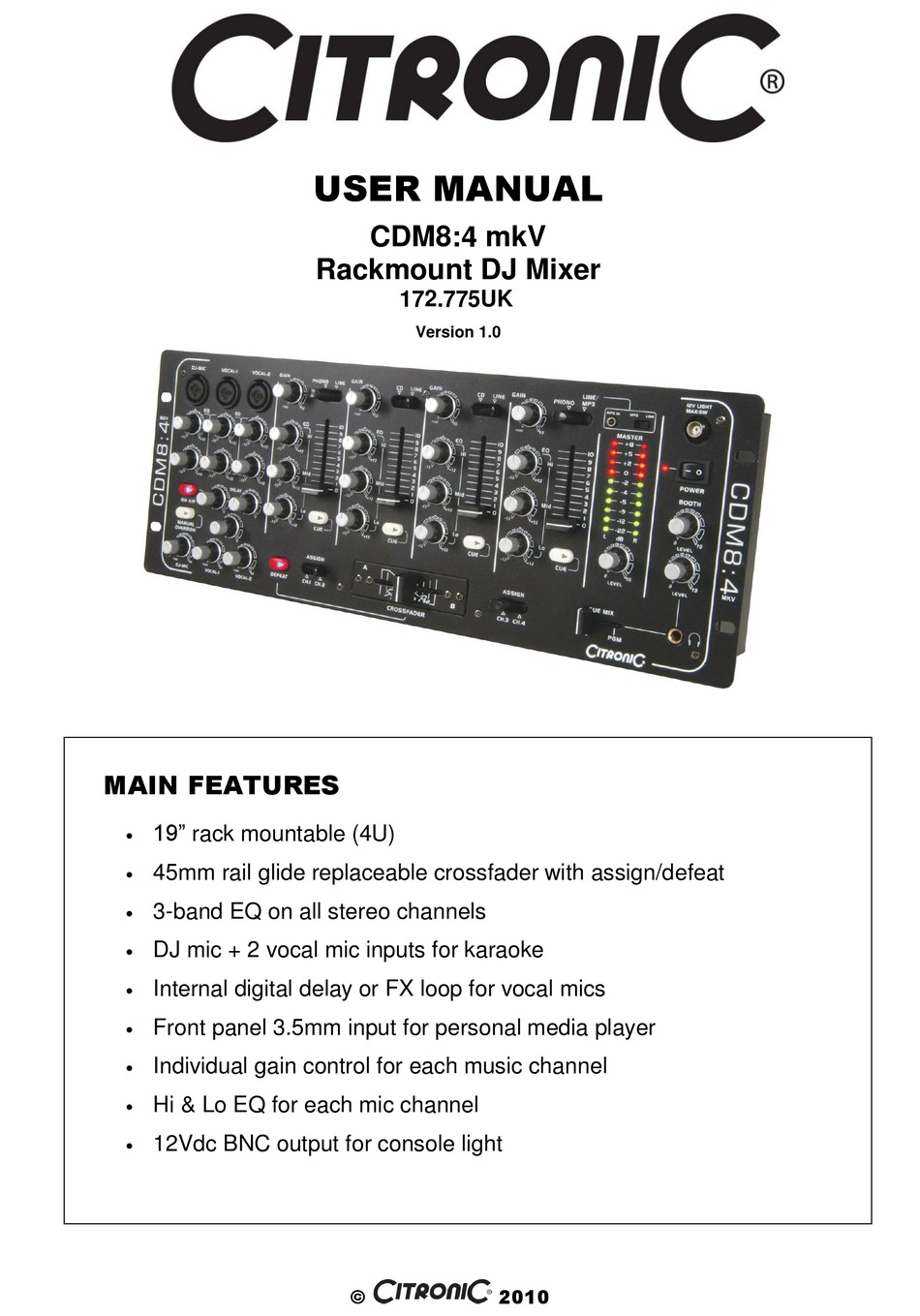

USER MANUAL CDM8:4 mkV Rackmount DJ Mixer 172.775UK Version 1.0 MAIN FEATURES 19” rack mountable (4U) 45mm rail glide replaceable crossfader with assign/defeat 3-band EQ on all stereo channels DJ mic + 2 vocal mic inputs for karaoke ... - Page 2 Instruction manual INTRODUCTION Thank you for purchasing the Citronic CDM8:4 mkV Rackmount DJ Mixer. This product is intended to give long term, reliable service in normal usage. Please read these instructions before use to avoid incorrect operation and to help outline the functions and controls.
-
Page 3: Master Section
Stereo Section CH.1 PHONO/LINE – Input selector for channel 1, turntable or line input (10) CH.2 CD/LINE – Input selector for channel 2, CD player or line input (11) CH.3 CD/LINE – Input selector for channel 3, CD player or line input (12) CH.4 PHONO/LINE/MP3 –... -
Page 4: Rear Panel
Rear Panel (33) Mains inlet – IEC connector to connect to mains using the supplied lead (34) Fuse Holder – 20mm mains fuse holder - please note correct rating when replacing (35) RETURN L+R – When these 6.3mm jacks are connected to the outputs of an external processor, the output of the external unit will override the internal digital delay effect for Vocal mics 1 + 2. - Page 5 OPERATION Check mains for correct voltage as indicated near to the IEC mains inlet on the rear panel. Connect to mains supply using the IEC cable provided. Connect the Main unbalanced RCA and/or balanced XLR outputs to the main PA and ensure that the volume levels are turned down to avoid damage.
-
Page 6: Troubleshooting
TROUBLESHOOTING NO OUTPUT - Check mains power is on Check leads and connections Check MASTER LEVEL and mic or channel fader is turned up Check CROSSFADER by trying the DEFEAT switch DISTORTED OUTPUT - Check line input isn't connected to PHONO Check channel and MASTER faders are not too high Check volume control of amplifier, active speakers or recording equipment MICROPHONE FEEDBACK...
