Summary of Contents for Citronic CDM8:4 USB

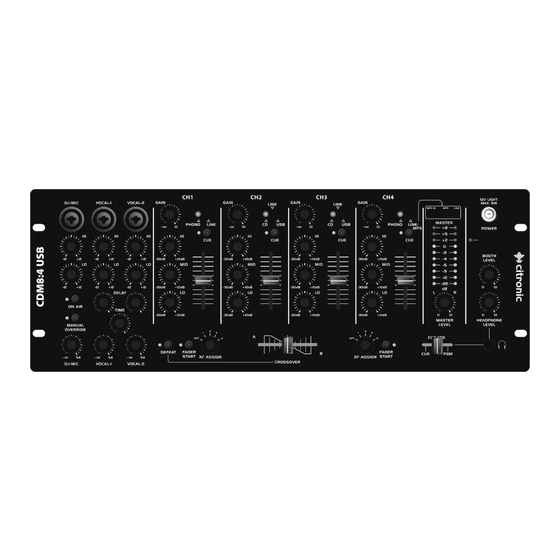

- Page 1 CDM8:4 USB Citronic CDM8:4 USB Order ref: 172.776UK User Manual Version 1.1 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
-
Page 2: Maintenance
Introduction Thank you for purchasing the Citronic CDM8:4 USB Rackmount DJ Mixer. This product is intended to give long term, reliable service in normal usage. Please read these instructions before use to avoid incorrect operation and to help outline the functions and controls. -
Page 3: Microphone Section
Controls Microphone Section: 1. MICROPHONE - Combo XLR and 6.3mm jack inputs for DJ mic and 2 Vocal mics 2. Hi EQ – High frequency cut/boost for mic inputs 3. Lo EQ – Low frequency cut/boost for mic inputs 4. ON AIR – Switches on or mutes DJ Mic 5. -
Page 4: Stereo Section
Stereo Section: 9. CH.1 PHONO/LINE – Input selector for channel 1, turntable or line input 10. CH.2 CD/LINE – Input selector for channel 2, CD player or line input 11. CH.3 CD/USB1/LINE – Input selector for channel 3, USB, CD player or line input 12. -
Page 5: Master Section
22. FADER START – Activates fader start for the channel assigned to the left side of the cross fader. 23. ASSIGN – Selects channel 1, 2, 3 or 4 for left side of crossfader 24. Crossfader – Allows seamless fading between 2 assigned channels 25. - Page 6 45. CHANNEL 3 LINE – RCA L+R inputs for line level source (CD, DVD, MP3, PC etc.) 46. CHANNEL 3 CD – RCA L+R inputs for CD player (or other line level source) 47. Ground (earth) – Screw terminal for grounding equipment to the case of the CDM8:4 USB. Attach turntable ground spade connectors here.
-
Page 7: Connection Guide
51. CHANNEL 1 PHONO – RCA L+R phono inputs for turntable 52. REMOTE STARTS – 3.5mm mono jack outputs sending “start” trigger signals from channel faders 1 to 4 to start play on compatible CD players automatically when the fader is moved upward from the lowest point. -
Page 8: Operation
Operation: Check mains for correct voltage as indicated near to the IEC mains inlet on the rear panel. • Connect to mains supply using the IEC cable provided. • Connect the Main unbalanced RCA and/or balanced XLR outputs to the main PA and ensure •... -
Page 9: Troubleshooting
Troubleshooting NO OUTPUT - Check mains power is on Check leads and connections Check MASTER LEVEL and mic or channel fader is turned up Check CROSSFADER by trying the DEFEAT switch DISTORTED OUTPUT - Check line input isn't connected to PHONO Check channel and MASTER faders are not too high Check volume control of amplifier, active speakers or recording equipment MICROPHONE FEEDBACK... -
Page 10: Specifications
Specifications Parameter Phono Line/CD Sensitivity -53dBu 46dBu 0dBu (1.73mV) (4mV) (775mV) Input Impedance Max Gain 50dB <-70 to +10dB S/N Ratio 68dB 73dB > 87dB Freq Response 25Hz to 30KHz RIAA < 10Hz to 24 KHz 0.042% < 0.005% Microphone Equalisation Lo = ±...
