- Page 1 Item ref: 170.862UK CMA-series 170.864UK 170.866UK Compact Mixers with FX/BT/USB User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
-
Page 2: Safety Symbol And Message Conventions
Introduction Thank you for choosing a Citronic CMA-series mixer as part of your professional sound system. This product has been developed to provide a wide range of facilities for professional and reliable sound reinforcement. Please read and keep this manual to achieve the best results from your purchase and avoid damage through misuse. -
Page 3: Console Layout

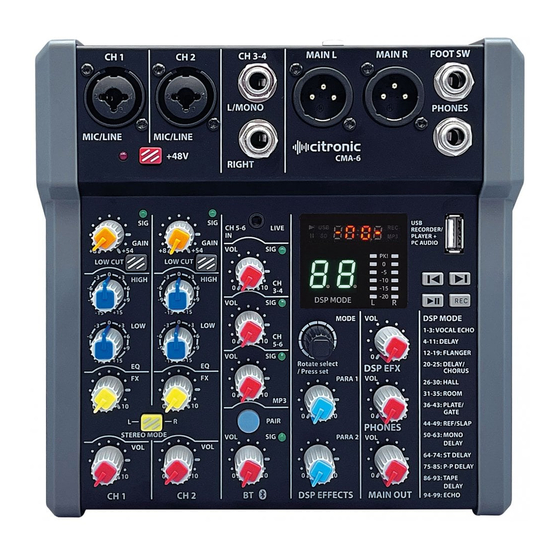

Console layout Each CMA compact mixing console has a bank of mono input channels which can accept a balanced microphone input or switchable line/instrument input. There is also a stereo input for playback devices or line level instruments. All preamps have studio grade, low noise architecture for the cleanest possible path throughout the signal chain. -
Page 4: Stereo Inputs
8. FX This control regulates the amount of the channel signal that is fed to the DSP effects section, varying the amount of effect. 9. STEREO All mono channels are pre-set to centre of the stereo field by MODE default (equal left & right). Pressing this button in “hard pans” the 2 mono channels left &... - Page 5 DSP Effects CMA-series mixers have an internal 24-bit DSP processor for audio effects, as detailed on the DSP Table in the appendix of this manual. 22. Preset selector Rotate until required preset is shown and press to select that preset 23.
-
Page 6: Operation
If a smart phone or tablet is to be connected as a wireless music source, press the BT PAIR button (17) and it will flash blue rapidly. Search on the smart phone or tablet for a device called “Citronic” and select to connect for audio playback. The BT PAIR button (17) will be lit blue constantly when paired successfully. -
Page 7: Specifications
When a track is being, the BT PAIR button will flash slowly. Turn up the BT VOL control (18) to hear the track being played. Pressing the BT PAIR button again will disable the Bluetooth receiver. Turn down the MAIN OUT volume control before powering down to avoid loud noises through connected equipment. - Page 8 DSP Effects Presets & Parameters Name Para 1 Para 2 Name Para 1 Para 2 KTV Echo 3 Dly Time Decay Time Mono Delay 60 Repeat Delay Time KTV Echo 2 Dly Time Decay Time Mono Delay 100 Repeat Delay Time KTV Echo 1 Repeat Decay Time...
