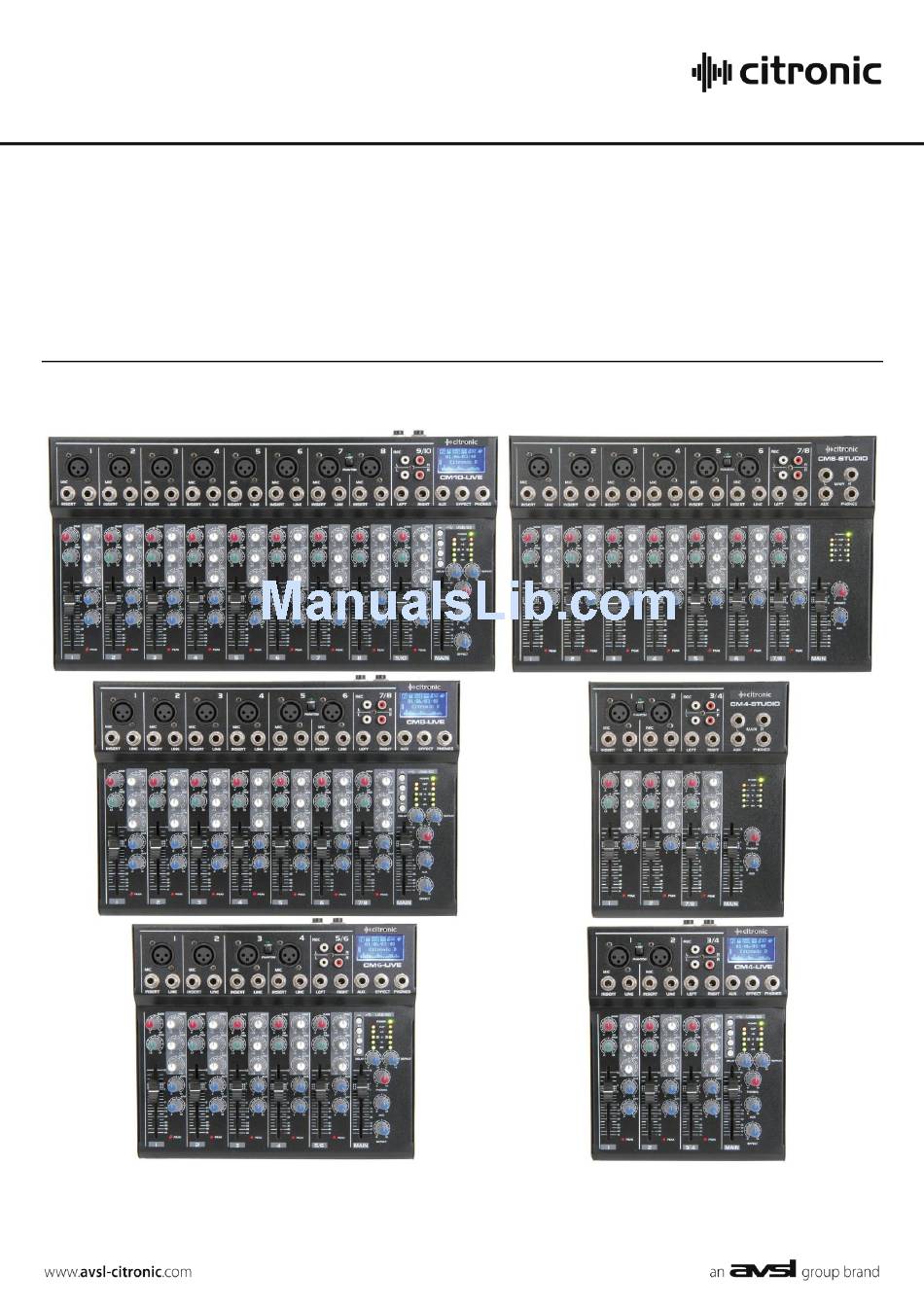

- Page 1 CM SERIES Compact Live and Studio Mixers Item ref: 170.800UK, 170.801UK, 170.802UK, 170.803UK, 170.810UK, 170.812UK User Manual...
- Page 2 Damage caused by misuse is not covered by the warranty Introduction: Thank you for choosing a Citronic CM series mixer. This product has been designed to offer reliable, high quality mixing for stage and/or studio applications with unfailing consistency. In order to gain the best results from this equipment and avoid damage through misuse, please read and follow these instructions and retain for future reference.
-
Page 3: Control Panel

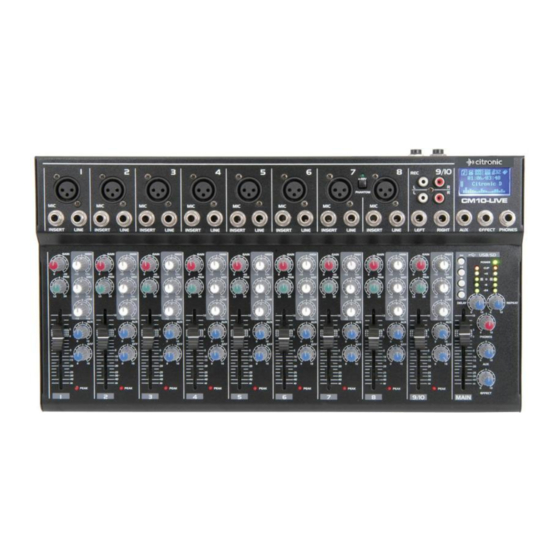

Control panel 1. XLR MIC input 2. Channel INSERT – TRS 6.3mm jack 3. LINE input 6.3mm jack 4. Channel GAIN rotary 5. PAN (L-R balance) control 6. 3-band EQ (HIGH/MID/LOW) controls 7. Channel AUX output level 8. EFF rotary – internal delay or EFFECT out (CM-LIVE) 9. - Page 4 Connection Before connecting to amplifier or other equipment, turn down all volume controls to avoid loud noises which may cause damage to other equipment. Always switch amplifier power on last in line with volume levels down. Using good quality 6.3mm jack leads (balanced or unbalanced), connect L + R outputs from the mixer to the amplifier, recorder or whichever equipment is to receive the main mix output.
-
Page 5: Operation
Operation Each channel has a 3-band EQ (LOW/MID/HIGH), which can be used to balance the mix of frequencies and emphasise certain aural characteristics in the signal. Adjust these as required, noting that and overall increase may require an equivalent reduction of the GAIN control to compensate (otherwise clipping may occur from EQ boost). -
Page 6: Usb Features
USB features For the CM-LIVE models, The USB and SD card connection is for the internal media player, which can offer playback of compressed digital audio files through the stereo channel. When a USB pen drive or SD card with such files on is connected via the rear panel, the player recognises this and automatically begins playback through the stereo channel. -
Page 7: Specifications
Specifications Model CM4-LIVE CM6-LIVE CM8-LIVE CM10-LIVE CM4-STUDIO CM8-STUDIO (Stock Code) (170.800) (170.801) (170.802) (170.803) (170.810) (170.812) Power Supply 12Vac 1000mA (included) Phantom Power Switchable +48V (XLR inputs) Frequency Response 20Hz - 20kHz Mic/Line inputs (bal/unbal) 2 x XLR/jack 4 x XLR/jack 6 x XLR/jack 8 x XLR/jack 2 x XLR/jack... -
Page 8: Troubleshooting
Troubleshooting Ensure power adapter is working and connected properly No power LED on control panel Ensure mains outlet voltage is as stated on adapter Check input signals and condition of connection leads Check jack is connected to input and not channel insert Check GAIN is not too low on channel input Power LED is on but no other Check channel fader is not fully down...
