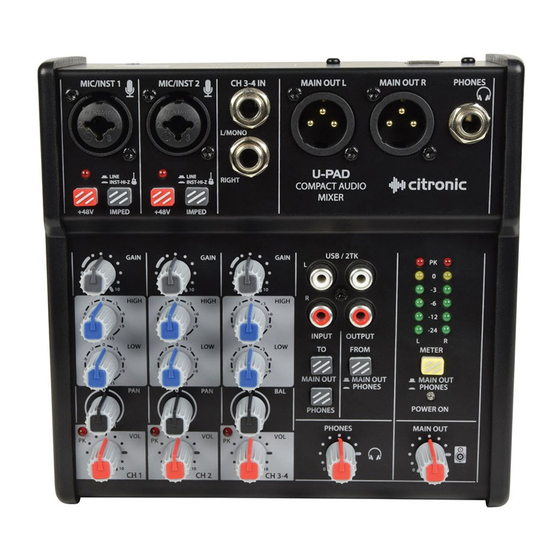

Citronic U-PAD User Manual

Compact mixer with usb interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

U-PAD
Compact Mixer with USB Interface
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
Version 1.0
Item ref:
170.879UK
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U-PAD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citronic U-PAD

Summary of Contents for Citronic U-PAD

  • Page 1 U-PAD Item ref: 170.879UK User Manual Compact Mixer with USB Interface Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...

  • Page 2: Safety Symbol And Message Conventions

    Introduction Thank you for choosing a Citronic U-PAD mixer as part of your recording setup or stage sound system. This product has been developed to provide a wide range of facilities for professional and reliable sound reinforcement. Please read and keep this manual to achieve the best results from your purchase and avoid damage through misuse.

  • Page 3: Console Layout

    Console layout The U-PAD mixing console has 2 mono input channels which can accept a balanced microphone input or switchable line/instrument input. There is also a stereo input for playback devices or line level instruments. All preamps have studio grade, low noise architecture for the cleanest possible path throughout the signal chain.

  • Page 4: Channel Controls

    Channel controls 6. GAIN This control adjusts the input level to match lower output sources to suit the channel line level. Increase for lower output sources (e.g.) microphones or reduce for higher output sources (line level) If the PEAK LED (below) is lighting constantly, the GAIN set too high. The METER select button enables visual monitoring of the MAIN OUT or PHONES out, which is useful to check if overall levels are too high.

  • Page 5: Output Section

    Output Section 19. PHONES Output Stereo 6.3mm jack output for headphone monitoring 20. MAIN OUT L+R Left and Right main balanced line outputs via XLRM connectors to be fed onto amplification or recording equipment. 21. VU Meters Left & Right LED main out level indicators. 22.

  • Page 6: Operation

    Channels 1, 2 and 3/4 each have a volume control (10) to adjust the balance of each input in the mix. When using the U-PAD as a main mixer for a digital recording setup via USB, the U-PAD is recognized as a generic plug &...

  • Page 7: Specifications

    Specifications Power supply 5.5Vdc (USB) Gain -14 to +40dB EQ: low ±15dB @ 80Hz EQ: high ±15dB @ 12kHz Phantom power +48V individually switchable (XLR inputs only) Input impedance: mic 2kΩ Input impedance: instrument 1MΩ Input impedance: line 20kΩ Frequency response 20Hz - 20kHz (±0.5B) USB computer interface Duplex stereo in/out AD/DA...
