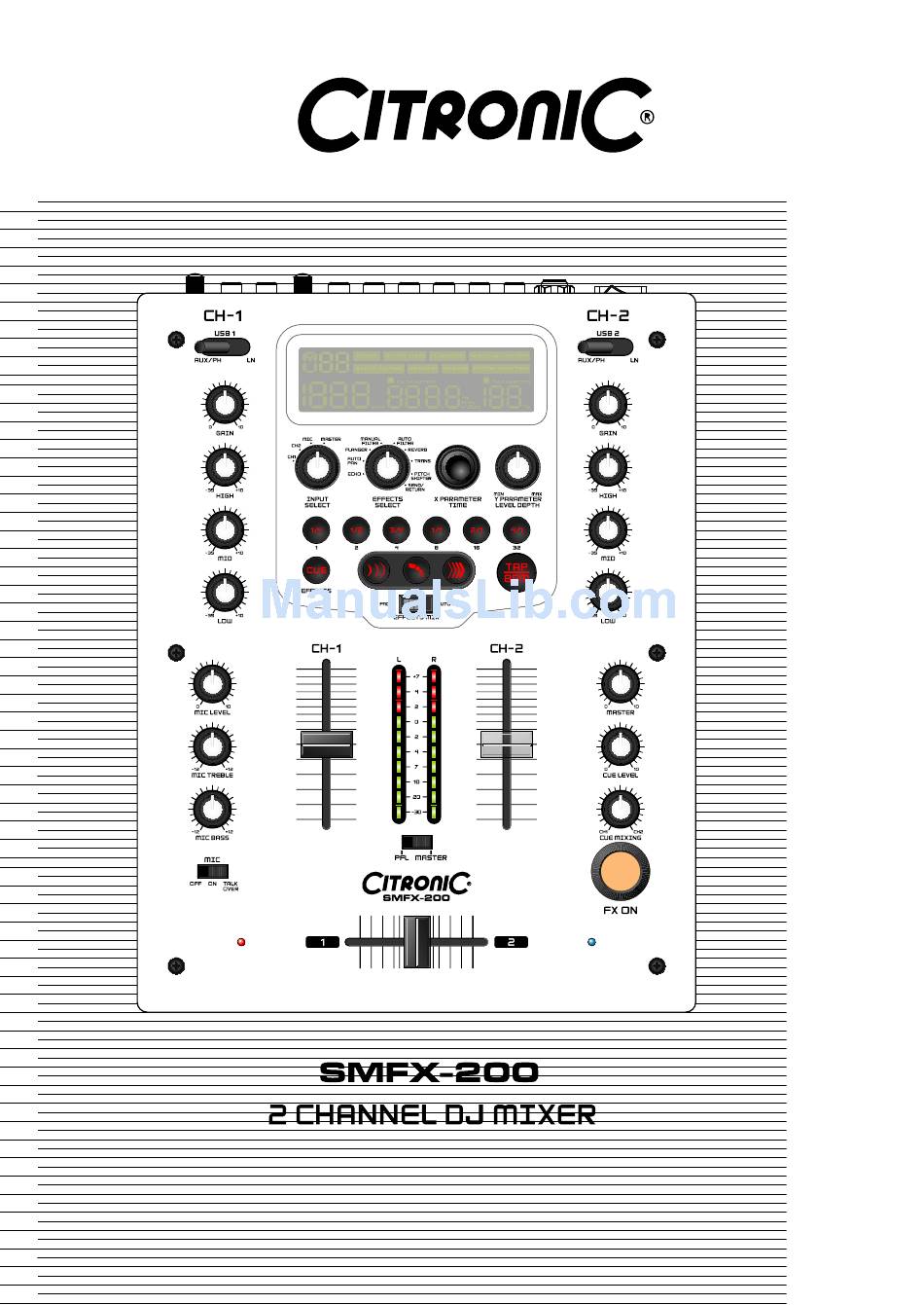

Citronic SMFX-200 Instruction Manual

2 channel dj mixer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMFX-200 and is the answer not in the manual?

Questions and answers

Related Manuals for Citronic SMFX-200

Summary of Contents for Citronic SMFX-200

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these Instructions Keep these Instructions Heed all Warnings Follow all Instructions Do not use this apparatus near water Clean only with a dry cloth. 7. Do not block any of the ventilation openings. Install in accordance with the manufacture’s instructions.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. CAUTION To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure FEATURES •...

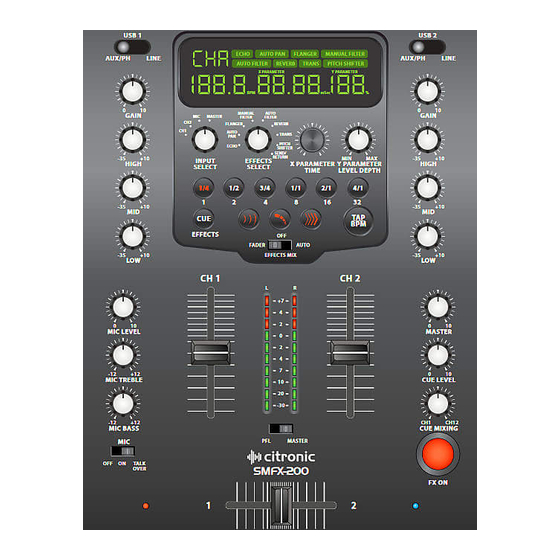

  • Page 4: Part Names And Functions

    PART NAMES AND FUNCTIONS...
  • Page 5 PART NAMES AND FUNCTIONS 1. Source input selector switch - These 6. Channel fader - Adjusts the volume for switches are used to select the input CH1 and CH2. source assigned to each channel. Each channel may only be assigned one input source at a time.
  • Page 6 14. Level meter - The dual LED's 21. Time array (parameter X) - Used to indicators are used to detail either the adjust the value of the parameter X (time) master output level, a combination of the of the effector. master output level or the PGM monaural level.

  • Page 7: Front Panel

    Rear Panel Front Panel 34. Power switch - Turn this unit power ON/OFF. 35. AC inlet - Use the accessory power cord to connect to an AC power outlet. 36. Master balanced output - These 1/4” TRS jacks provide a balanced line level 28.
  • Page 8 Rear Panel 43. Aux/Phono selector switches - These switches are used to change the mode of phono input jacks. When connecting turntable to these jacks be sure the switch is in the phono position, and when using line level input devices select AUX. Always be sure main power is shut off before change the position of the Aux/Phone selector switch.

  • Page 9: Quick Setup Diagram

    QUICK SETUP DIAGRAM Study this setup diagram. Make sure all faders are at "zero" and all devices are off. First, connect all input sources and processors. Next, connect your microphone and monitor headphones. Finally, connect the stereo outputs to the power amplifier(s) and/or audio receivers such as tape decks.

  • Page 10: Specifications

    SPECIFICATIONS Model SMFX200 2ch DJ mixer Power AC 100~240V, 60/50Hz, 14 Watts Dimensions 223 (W) x 296.7 (D) x 105.9 (H)mm Weight ca.6 kg Input/output impedance & sensitivity: (EQ flat, maximum gain, FX OFF, load=100K ohm) Input impedance and reference level: Line 10K ohm /-14dBV +/-0.1dB (200mV) 47K ohm /-14dBV +/-0.1dB (200mV)
  • Page 11 SPECIFICATIONS 12 +/-2dB, -12 +/-2dB at 100Hz 12 +/-2dB, -12 +/-2dB at 10KHz Channel 10 +/-2dB, below -32dB at 70Hz 10 +/-2dB, below -32dB at 1KHz 10 +/-2dB, below -32dB at 13KHz Channel balance Within 3dB from 0 to -40dB Fader kill More than 80dB at 1KHz for channel fader and crossfader Mic talkover...
