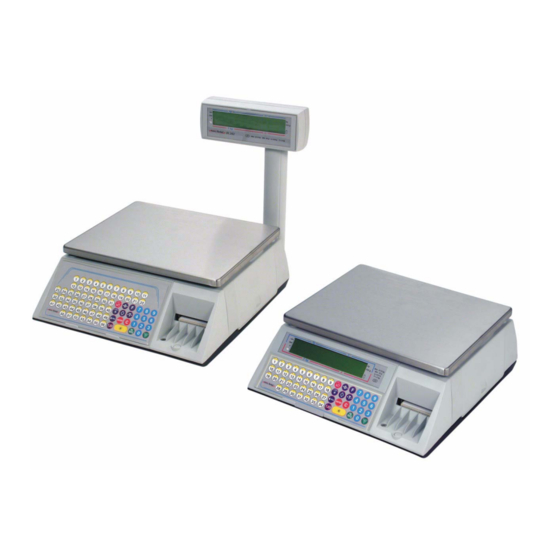

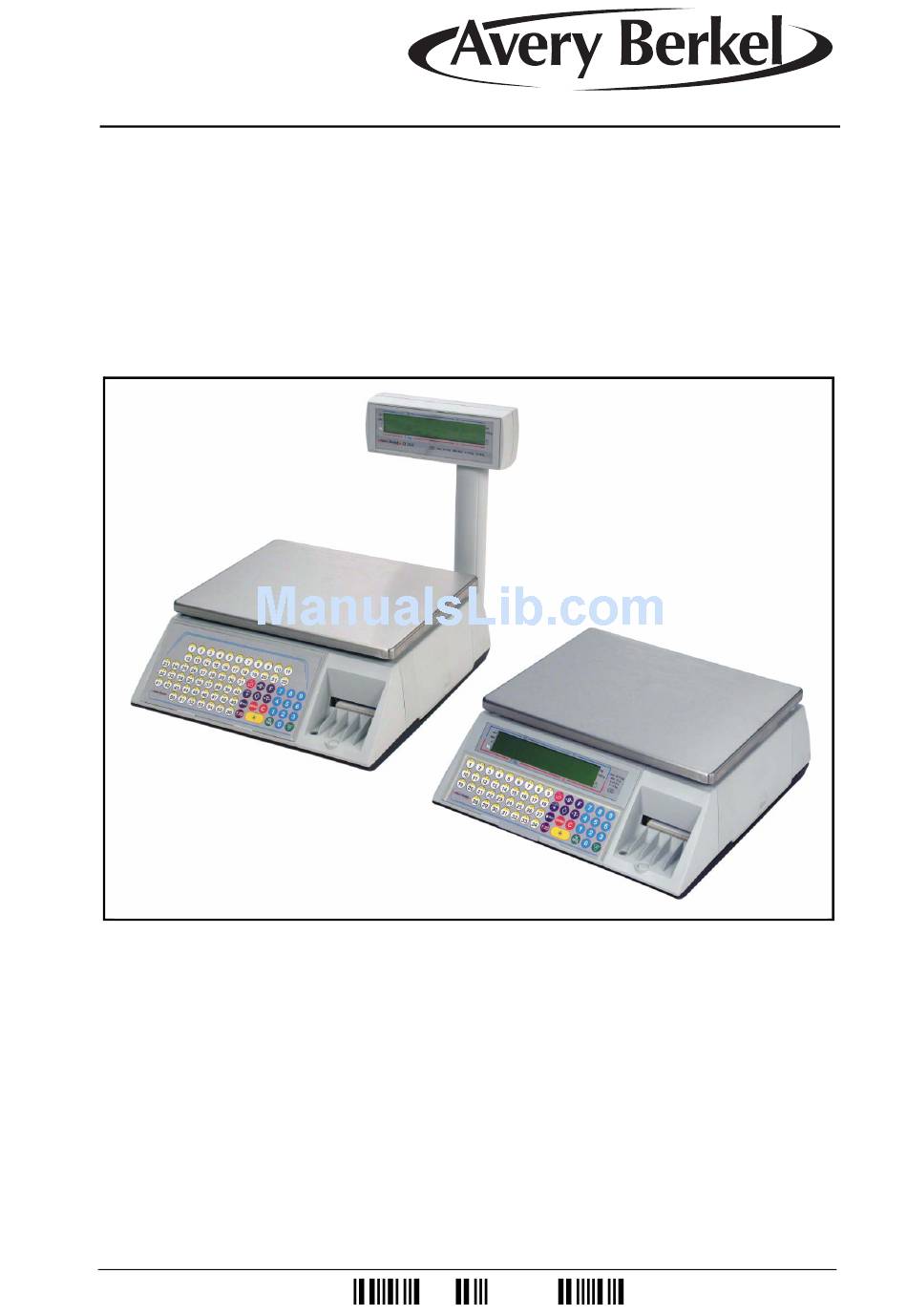

- Page 1 IX series Retail Counter Scale Quick User Guide This booklet describes the functions you need to start using your scale immediately. For further detail and more advanced functions consult the User Instructions on the CD provided. ENGLISH C 76103-832 Issue 02...
- Page 2 © Avery Berkel Limited 2003. All rights reserved. The information contained herein is the property of Avery Berkel Limited and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission.
-
Page 3: Declaration Of Conformity
A copy of the original signed declaration for this instrument is available from: Avery Berkel Limited, Foundry Lane, Smethwick, West Midlands B66 2LP England... -
Page 4: Safe Installation
RCD to BS7071 or BS7288 or IEC1008-2-2 BS EN 61008:1995. IF IN DOUBT SEEK ADVICE FROM A QUALIFIED ELECTRICIAN. IX series Quick User Guide... -
Page 5: Installation
EMC compliance This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. Installation Handling Levelling Adjustable feet IX series Quick User Guide... -
Page 6: Legal Requirements
Serial port On/Off switch (optional) External battery connection(optional) Ensure that cables are held in place using the clips on the base of the machine and are not trapped under the feet as this could damage them IX series Quick User Guide... -
Page 7: External Battery
Hold the overlay by the tab and slide it down to remove it from behind the clear protective cover. Reverse the overlay to reveal the programming side. Slide the top edge of the overlay up under the protective cover until the bottom edge rests on the supports. IX series Quick User Guide... - Page 8 Selects the other price base when entering the price of an open, weighed PLU or a hand entered pricee Enables you to enter the price of a non weighed item. IX series Quick User Guide...
-
Page 9: Programmable Keys
The white, numbered, keys on the sales keyboard are programmable keys. You may assign dedicated keys such as PLU, Operator and Payment keys to any of the programmable keys. Selecting label/receipt mode (not IX110 and IX212) Operator mode Label Receipt Select other mode IX series Quick User Guide... -
Page 10: Basic Programming
To exit Manager Mode: Operator PIN The default operator number is 1 and the default operator PIN is 4296. For added security, give each operator a PIN that is different from the one set up. IX series Quick User Guide... - Page 11 When at top level of menu, return to operator mode. Move across menu items. Move up one level. PLU Create/edit quick save Save data entered up to this point. To exit Manager Mode from within a menu IX series Quick User Guide...
-
Page 12: Programming Products
The instructions given here describe how to disable PLU Text 1 but any of the options displayed can be disabled or enabled in the same way. Manager mode Until you see PLU Text 1 Select Disabled IX series Quick User Guide... -
Page 13: Changing Prices
Assign PLU key Unit/item price Assigning PLU keys Manager mode PLU number Assign PLU key Changing prices Use this function if you want to change only the unit/item price Manager mode PLU number New price IX series Quick User Guide... -
Page 14: Programming Operators
Programming operators Manager mode Operator number Operator name 0 - 8 Re-enter PIN Trading/Training Security level 0 - 2 Logged On/Off Assigning operator keys Manager mode Operator number Assign Operator Key 0 - 8 IX series Quick User Guide... -
Page 15: Printing Receipts
ECR Assign Payment Payment Key No. Enter required payment key number (1) 1 - 5 Assign payment key Basic operations Receipt machines Assigning transactions Sales mode Assign transaction Printing receipts Sales mode £ To display sub-total IX series Quick User Guide... -
Page 16: Counter Receipts
Sales mode Display op. subtotal Press until you see the transaction you want to void Voiding last transaction (IX110 and IX212) Sales mode Display op. subtotal Press until you see the transaction you want to void IX series Quick User Guide... -
Page 17: Label Machines
Label machines Printing labels Sales mode Operator functions Using the overide key Sales mode New price PLU number Receipt mode Label mode Using the FIX key Sales mode PLU and/or Tare Receipt mode Label mode IX series Quick User Guide... - Page 18 Using a tare Sales mode Zero Zero PLU number Receipt mode Label mode IX series Quick User Guide...
- Page 19 Paper route Labels with backing rewound Continuous paper Receipts and reports Rewinding the backing paper (labels) Clean regularly snap swab IX series Quick User Guide...
- Page 20 This document contains a general guide only of the product and shall not form part of any contract unless specifically agreed by Avery Berkel Limited in writing in each case on the Order Acknowledgement. The specification of the products described herein may vary from time to time and may be altered without notice.
