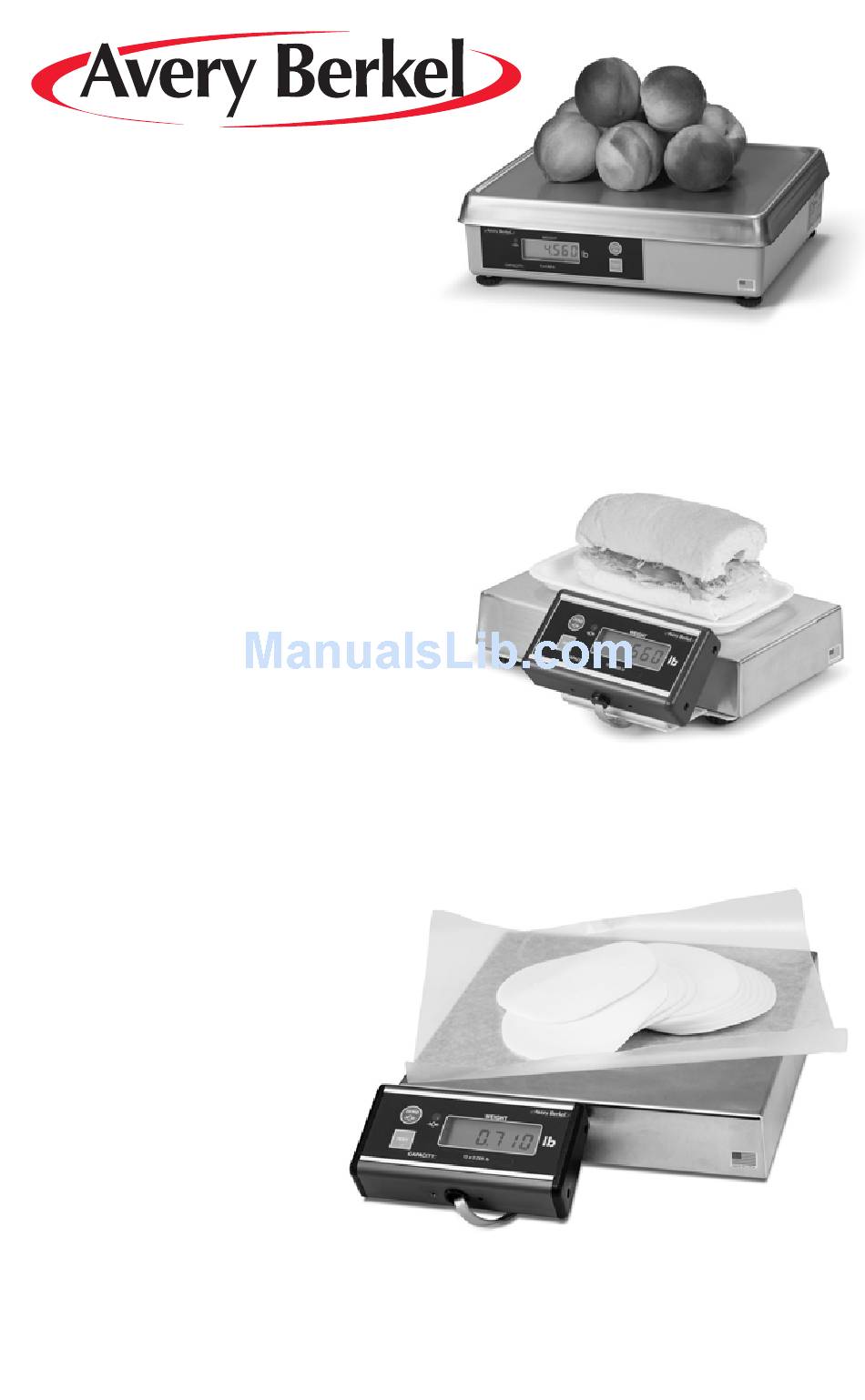

- Page 1 Model 6700 Family Model 6720 Point-of-Sale Interface Scales Model 6702 Model 6710 User’s Manual...
- Page 2 CAUTION Risk of electrical shock. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. Avery Berkel reserves the right to change specifications at any time. October 2009 6700_u_en_7424_14787.p65 Issue AJ Printed in USA Model 6700 Family User’s Manual...
-
Page 3: Table Of Contents
Menu Structure ..........11 Diagnostics Mode ..........13 Configuration Mode ........... 17 Calibration Mode ..........19 Review/Test Scale Settings ....... 21 Communication ..........22 Error Codes ............23 Troubleshooting..........24 Spare Parts Listing ..........26 Model 6700 Family User’s Manual... -
Page 4: Specifications

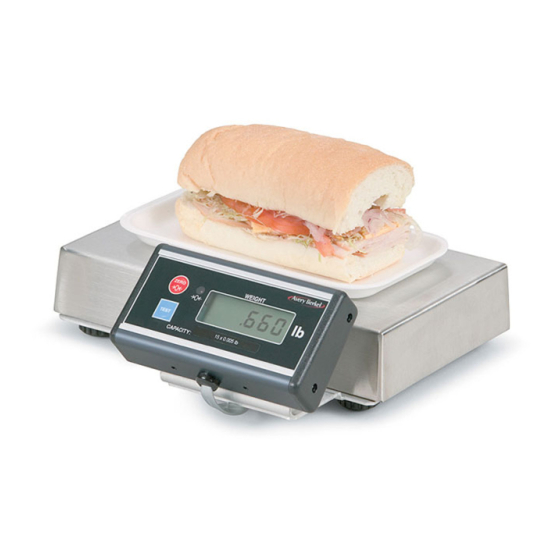

Specifications Description The Avery Berkel 6700 models are digital electronic bench scales specifically designed for point-of-sale applications and are “Legal-for- Trade.” The scales are easily interfaced with a cash register, computer or other POS terminal. Important! Weights and Measures normally... - Page 5 Zero Window Initial automatic zero setting is ±10% of maxi- mum capacity—active at power up. Manual zero setting range is ±2% of maximum capacity— active using the ZERO key. Model 6700 Family User’s Manual...
- Page 6 PC interfaces. Not a null modem. RS-232 bidirectional, configurable 1200 to 19.2K baud. Transmits weight and scale status whenever ASCII “W” <CR> is sent by the POS terminal. Standard ECR protocol is OPOS compatible. For Protocol details contact factory. Model 6700 Family User’s Manual...
-
Page 7: Initial Setup
Scale Dimensions Min. Cut-Out Dimensions Model 6720 D 12.6 in. (32.0 cm) 13.25 in. (33.7 cm) W 14.1 in. (35.8 cm) 14.75 in. (37.5 cm) H 4.1 in. (10.4 cm)* *Adjustable to 4.6 in. (11.7 cm) Model 6700 Family User’s Manual... -
Page 8: Operation
Random Access Memory (RAM) and a test condition. See “Error of Read Only Memory (ROM) is performed. Codes” section. If everything is OK, the display will show zero weight and the scale is ready for use. Model 6700 Family User’s Manual... - Page 9 This key also acts as YES or ACCEPT in the Menu mode. Accessing the The 6700 models power up ready for weighing Menu Mode operations. Access the Menu mode by setting Switch 1 shown in Figure 1 or 2 to the OPEN or Menu mode position.
- Page 10 The structure for these menus is shown in Figure 3. Specific information about each mode followed by step-by-step instructions for access- ing them are described in the following pages. Model 6700 Family User’s Manual...
-
Page 11: Menu Structure
Figure 3 Menu Structure Model 6700 Family User’s Manual... - Page 12 Alternate The Avery Berkel 6700 bench scales allow Calibration Points calibration using less than full capacity weights. See Table 1 for alternative weights that can be used to calibrate your scale for its designated capacity. Table 1 Alternative Alternative Capacity...
-
Page 13: Diagnostics Mode
100,000 counts of dis- played resolution. AZT is disabled. Viewable configuration settings include: LN FR Line frequency FILT Filter setting PROT Serial protocol BAUD Baud rate Scale capacity UNITS Unit of measure Model 6700 Family User’s Manual... - Page 14 7. Press the TEST key to perform the ROM test . . . PASS or FAIL is displayed briefly; then 8. Press the ZERO key… I/O is displayed. This stands for the INPUT/OUTPUT test. Model 6700 Family User’s Manual...
- Page 15 LN FR is displayed. This stands for line scroll through the frequency. menu to verify the settings, but to make 17. Press the TEST key... changes, you must enter configuration or The current line frequency (50 or 60) is calibration. displayed. Model 6700 Family User’s Manual...
- Page 16 The current capacity/resolution selection is displayed. 24. Press the ZERO key… UNITS is displayed. This stands for unit- of-measure. 25. Press the TEST key. The current unit-of-measure LBS (for pounds) or 1000G (for kilograms), is displayed. Model 6700 Family User’s Manual...
-
Page 17: Configuration Mode
1. From the DIAG display, press the ZERO key until CONF is displayed, or from the normal weighing mode, move Switch 1 to the Menu mode or the OPEN position; then press the ZERO key until CONF is displayed. Model 6700 Family User’s Manual... - Page 18 10. Press the ZERO key to scroll through the choices. When the choice you want is displayed, press the TEST key. The choice is accepted and the display shows the PROT item. Model 6700 Family User’s Manual...
-
Page 19: Calibration Mode
When the choice you want is displayed, press the TEST key… The scale capacity is displayed. (Example: 9.995) If a different capacity selection is de- sired, press the ZERO key to scroll through the choices. Model 6700 Family User’s Manual... - Page 20 The scale returns to abort the process and normal weighing mode. retain the original calibration data. The scale is now tested, configured, and cali- brated. It is ready for use in your application. Model 6700 Family User’s Manual...
-
Page 21: Review/Test Scale Settings
When finished running tests or viewing the settings, press the ZERO key until DONE is displayed. Then press the TEST key to return to normal (i.e., weighing) mode of operation. Model 6700 Family User’s Manual... -
Page 22: Communication
Communication The 6700 is capable of interfacing with an EIA Standard RS-232, full duplex, asynchronous, or smart device for output of weight data to an ECR device. The 6700 9-pin style is capable of RS-232 communication only. Communications Serial commands will be responded to only Enabled when the scale is in the ‘normal’... -
Page 23: Error Codes
RS-232 Interface The 9-pin version of the 6700 has DE type female connector accessible at the rear of the unit. The functional pinout of this connector is compatible with a standard PC with a pass- through cable. DE-9 Female Scale... -
Page 24: Troubleshooting
2. Check for interference of weighing platform. 3. Power down, remove all items from the platter, and then power up the scale. 4. Recalibrate the scale. 5. Replace the load cell. 6. Replace the main board. Model 6700 Family User’s Manual... - Page 25 1. Remove all items from the scale. 2. Press the ZERO key. 3. Power down, and then power up the scale. 4. Recalibrate the scale. 5. Replace the load cell. 6. Replace the main board. Model 6700 Family User’s Manual...
-
Page 26: Spare Parts Listing
Power Supply - 6720 1148-15536 RS-232 Cable - PC 1140-13842 6700-7 Kg (15 lb) Loadcell 7154-16323-07 6700-15 Kg (30 lb) Loadcell 7154-16323-15 6700-30 Kg (60 lb) Loadcell 7154-16323-30 6700-60 Kg (120 lb) Loadcell 7154-16323-50 Remote Display Kit 7300-16577-04 Remote Pole Kit 7200-14837 Remote Pole/Displ Kit 7’... - Page 27 Model 6700 Family User’s Manual...
- Page 28 Avery Berkel North America 1000 Armstrong Drive Fairmont, MN 56031 PH Toll-Free: 800-237-1886 FAX Toll-Free: 800-237-2063 sales@AveryBerkelUSA.com www.AveryBerkelUSA.com...
