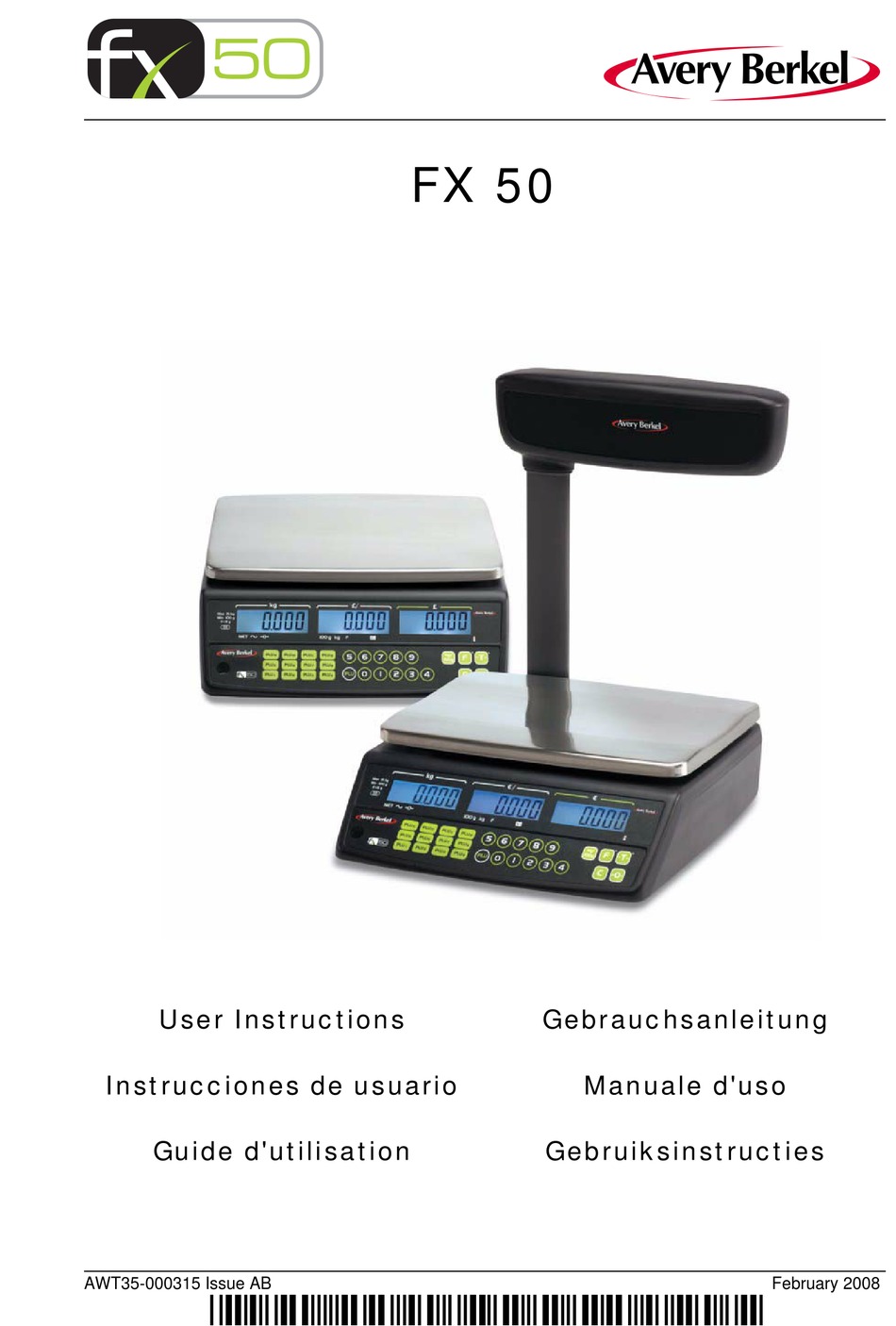

  • Page 1 FX 50 User Instructions Gebrauchsanleitung Instrucciones de usuario Manuale d'uso Guide d'utilisation Gebruiksinstructies AWT35-000315 Issue AB February 2008 *AWT35-000315*...

  • Page 2: Fx 50 User Instructions

    Full acknowledgment of the source must be given. Avery Berkel is a division of ITW Limited. This publication was correct at the time of going to print and is supplied without liability for errors or omissions.
  • Page 3 Comformity Statement FX50 User Instructions...

  • Page 4: Table Of Contents

    4.10 Weighing using direct PLUs ......35 FX 50 User Instructions...
  • Page 5 4.12 Weighing using indirect PLUs ......37 Error codes FX 50 User Instructions...
  • Page 6 Thank you for choosing this Avery Berkel product. Please read these safety and user instructions before you use this product. Please read all the sections of this document that have Danger, Warning and Caution symbols and notices. WARNING! This is a Warning symbol. Warnings mean that failure...

  • Page 7: Warnings And Cautions

    The electrical supply to the outlet must give over-current protection of an appropriate rating. WARNING: If in doubt, ask a qualified electrician for advice. Cautions for using the scale safely Fig 1-1. Picking up the scale correctly FX 50 User Instructions...
  • Page 8 1. Warnings and cautions Fig 1-2. Cautions for using the scale FX 50 User Instructions...

  • Page 9: Cleaning The Scale

    Fig 1-3. Cleaning the scale To clean the outside of the scale, wipe it down with a clean cloth moistened with water containing a small amount of mild detergent or unscented washing-up liquid. FX 50 User Instructions...

  • Page 10: Main Parts, Keyboard And Display

    2.1 Main parts Main parts, keyboard and display Main parts Fig 2-1. Main parts of the FX 50 monoblock & tower variants FX 50 User Instructions...
  • Page 11 Item Part Item Part Monoblock variant AC adaptor Tower variant On/Off switch Stainless steel weigh pan AC adaptor socket Keyboard Rechargeable battery Operator display Levelling feet Customer display Levelling bubble Tower assembly Locknut for levelling feet FX 50 User Instructions...

  • Page 12: Keyboard Variants

    2.2 Keyboard variants Keyboard variants Fig 2-2. USA keyboard (above) and Europe & Rest of the World (RoW) keyboard (below) FX 50 User Instructions...
  • Page 13 Zero key Manually zero the scale and return the unit price and total weight displays to zeros. Clear key Clear incorrect entries and error conditions. Multiply by 2 key Multiply the total price by two. (USA only) FX 50 User Instructions...
  • Page 14 (USA only) Indirect PLU key Recall and set up prices against up to 38 indirect Price Look-Up (PLU) keys. Direct PLU keys Recall and set up prices against up to 12 direct Price Look-Up (PLU) keys. FX 50 User Instructions...
  • Page 15 2. Main parts, keyboard and display Fig 2-3. USA display Fig 2-4. UK display Fig 2-5. Europe & Rest of the World (RoW) display Unit Price $ Total Price $ Fig 2-6. Canada display FX 50 User Instructions...
  • Page 16 Stable indicator An arrow shows that a tare weight is set and the displayed weight is a net weight (the displayed Net weight weight excludes the tare weight). indicator FX 50 User Instructions...

  • Page 17: Installing The Scale

    3.1 Assembling the tower variant Installing the scale Assembling the tower variant Fig 3-1. Assembling and installing the tower variant FX 50 User Instructions...

  • Page 18: Levelling The Scale

    3. Installing the scale Levelling the scale Fig 3-2. Levelling the scale FX 50 User Instructions...

  • Page 19: Charging The Battery

    (ON, OFF and AUTO) that the scale displays in the total price display. NOTE: To cancel changing the backlight mode and return to weighing press the key. 4. Press the key to save the backlight mode you selected and return to weighing. FX 50 User Instructions...

  • Page 20: Setting The Auto Power Off Mode

    5 = Scale turns off after 5 minutes of inactivity. • 30 = Scale turns off after 30 minutes of inactivity. 4. Press the key to save the auto power off mode you selected and return to weighing. FX 50 User Instructions...

  • Page 21: Changing The Battery

    3.6 Changing the battery Changing the battery Fig 3-3. Changing the battery FX 50 User Instructions...
  • Page 22 3. Installing the scale Fig 3-4. Changing the battery (continued) FX 50 User Instructions...

  • Page 23: Operating The Scale

    Put the item in a container or wrapping (or another type of tare weight) on the weigh pan . Remove the item and the container Put items of the same unit price on the weigh pan such as ‘pick and mix’ sweets. Remove the items FX 50 User Instructions...
  • Page 24 Multiplies the total net price of the item the scale has weighed by either two or four. NOTE: These keys are for the USA variant only. Select a Direct PLU key. Select the Indirect PLU key. Repeat the numbered steps shown. FX 50 User Instructions...

  • Page 25: Switching On And Setting Up The Scale

    Switching on and setting up the scale To switch on and set up the scale so that it is ready to use do the steps as follows: Fig 4-1. Switching on and setting up the scale FX 50 User Instructions...

  • Page 26: Weighing Individual Items

    4. Operating the scale Weighing individual items Do these steps to weigh items that have different weights and different unit prices: Fig 4-2. Weighing individual items FX 50 User Instructions...

  • Page 27: Weighing Items Of The Same Unit Price

    To weigh items of the same unit price do the steps as follows: 00086_A Fig 4-3. Weighing items of the same unit price FX 50 User Instructions...

  • Page 28: Weighing Using Known Tares

    PLU. See Sections 4.9 - 4.12 for information about PLUs. To enter a tare weight that you know and then weigh an item that has the same tare weight do the steps as follows: Fig 4-4. Weighing using known tares FX 50 User Instructions...
  • Page 29 4.5 Weighing using known tares Fig 4-5. Weighing using known tares (continued) FX 50 User Instructions...

  • Page 30: Weighing Using Unknown Tares

    PLU or an indirect PLU. See Sections 4.9 - 4.12 for information about PLUs. Do the steps as follows to weigh and save an unknown tare weight: Fig 4-6. Weighing using unknown tares FX 50 User Instructions...

  • Page 31: Using Proportional Tares

    NOTE: At step 6 you can manually enter the unit price of the item or you can recall the item price using either a direct PLU or an indirect PLU. Refer to Sections 4.9 - 4.12 for information about PLUs. FX 50 User Instructions...
  • Page 32 4. Operating the scale To enter an example proportional tare weight of 25% do the steps as follows: Fig 4-8. Using proportional tares FX 50 User Instructions...

  • Page 33: Multiplying A Unit Price

    PLU or an indirect PLU. Refer to Sections 4.9 - 4.12 for information about PLUs. To multiply a unit price you entered by a multiple of either two or four do these steps: Fig 4-9. Multiplying a unit price FX 50 User Instructions...

  • Page 34: Programming Direct Plus

    To store the units of weight (or the price base) together with a price against an example direct PLU of number 8 do the steps as follows: Fig 4-10. Programming direct PLUs NOTE: An additional 38 indirect PLUs are available. See Sections 4.11 and 4.12. FX 50 User Instructions...

  • Page 35: Weighing Using Direct Plus

    You can put the item on the scale and then press the direct PLU key or you can press the direct PLU key and then put the item on the scale (see steps 2 & 3 below). Fig 4-11. Weighing using direct PLUs FX 50 User Instructions...

  • Page 36: Programming Indirect Plus

    To store the units of weight (or the price base) together with a price against an example indirect PLU of number 20 do the steps as follows: Fig 4-12. Programming indirect PLUs FX 50 User Instructions...

  • Page 37: Weighing Using Indirect Plus

    PLU. To weigh an item using an example indirect PLU of number 20 do the steps as follows: Fig 4-13. Weighing using indirect PLUs FX 50 User Instructions...

  • Page 38: Error Codes

    Keyboard error. The keyboard has a short circuit so it must be replaced. Please contact your Avery Berkel dealer. Err 6 A/D converter error. The scale needs calibration or service. Please contact your Avery Berkel dealer. FX 50 User Instructions...
