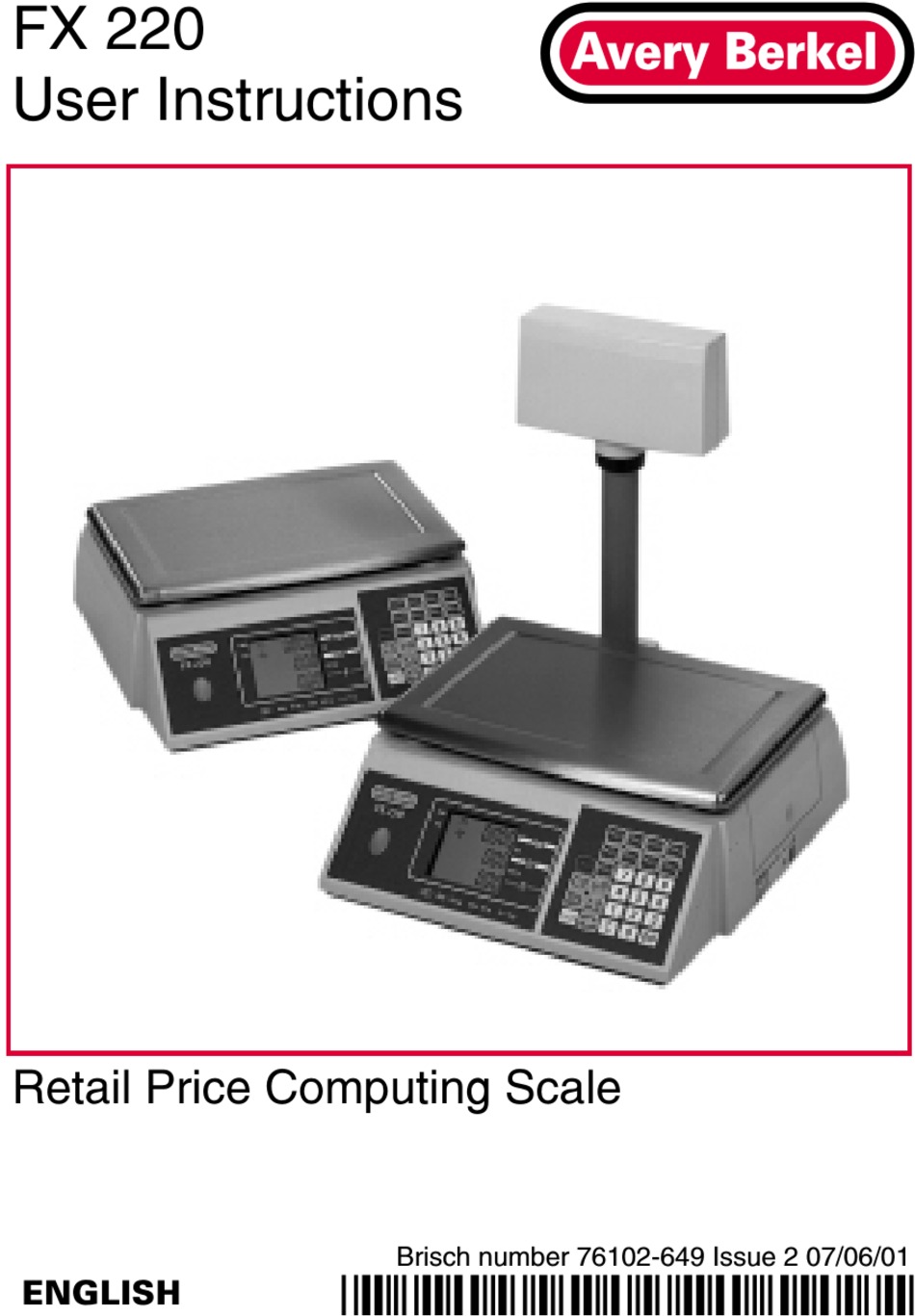

Page 1: User Instructions

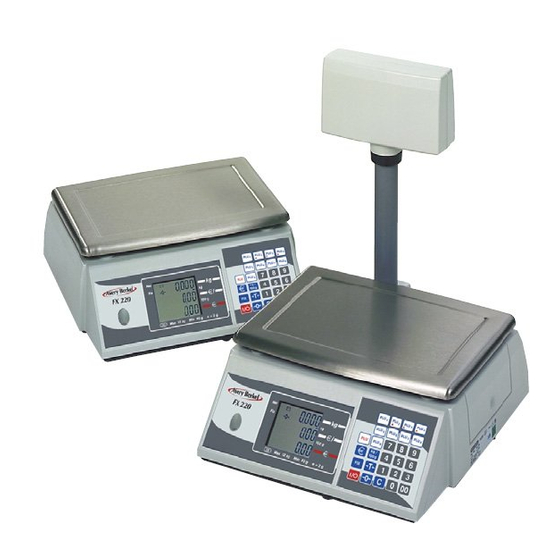

FX 220 User Instructions Retail Price Computing Scale Brisch number 76102-649 Issue 2 07/06/01 *76102-649* ENGLISH... -
Page 2: Cleaning The Scale
Warnings For your protection, all mains (110V or 230V) equipment used where damp or wet conditions may occur, must be supplied from a correctly fused source and protected by an approved RCD to BS7071 or BS7288 or IEC1008-2-2 BS EN 61008:1995. IF IN DOUBT SEEK ADVICE FROM A QUALIFIED ELECTRICIAN. -
Page 3: Error Messages
Installing the head-up display option Using a flat-bladed screwdriver, remove the blanking plate from the back of the scale. Attach the display to the scale using the two slotted screws. Carefully insert the plug from the display into the socket at the back of the scale. -
Page 4: Switching On The Scale
Switching on the scale Connecting to the mains - Plug in the mains cable, replace the cover and weighplate then switch on using the mains ON/OFF switch. Warning: Do not use the mains adaptor if it is damaged. Using batteries - Plug the battery pack into the scale and place the pack into the recess. -
Page 5: Testing The Display/Selecting Sleep Mode
Bleeps Short press (Press once) Long press (Press and hold) Testing the display/Selecting sleep mode Service 101d information = 0-6-0 Short press Short press SLEEP Wake up: Long press Short press Using the scale Zeroing the scale - Make sure that the scale is at zero before weighing any goods. -
Page 6: Multiplying A Unit Price
Retaining a unit price 1, 5 72 0, 2 6 0, 4 0 Unit price Short press Short press Repeat until all the goods have been weighed To cancel a unit price: Long press Short press Multiplying a unit price 1, 5 72 1, 5 72 0, 2 6... -
Page 7: Cumulative Tare
Using tares Semi-automatic tares 1, 5 72 0, 2 6 Unit price 0, 4 0 Short press Short press Retaining a tare Short press Short press 1, 5 72 0, 2 6 0, 4 0 Unit price Short press Repeat until all the goods have been weighed To cancel a retained tare: Short press... -
Page 8: Using Plus
Programming a weighed goods PLU hot-key Assign a tare to the PLU (if required) Note: For some countries, the tare value canot be saved. % of tare Tare value Short press Short press Short press Short press Short press Assign a unit price to the the PLU (if required) Select the PLU key: Note: To programme PLUs 10 - 20 refer to... -
Page 9: Management Mode
Management mode 6 2 3 1 Entering management mode Make a note of this Short press number, cut out and keep in a safe place. Short press Navigating management mode Branch Sub-branch For Example: 1 9 . 0 0 Branch ( Value Sub-branch ( Branch (... - Page 10 Switching the bleeper alarm on/off Go to branch 19, Sub-branch 00 1 9 . 0 0 0 = Off 1 = On Switching the keyboard bleeper on/off Go to branch 19, sub-branch 01 1 9 . 0 1 0 = Off 1 = On Target bleep Branch 19, sub-branch 02 - Not applicable for this machine.
- Page 11 Changing the duration of a 'Long' press Go to branch 29, sub-branch 00 Enter a value in units of 10 milliseconds (50 -255). For example : 2 9 . 0 0 200 = 2 seconds 2 0 0 150 = 1½ seconds 100 = 1 second Changing the default price base Go to branch 61, sub-branch 00...
- Page 12 This document contains a general guide only of the product and shall not form any contract unless specifically agreed by Avery Berkel in writing in each case on the Order Acknowledgment. The specification of the products described herein may vary from time to time and may be altered without notice.
