- Page 1 4K/UHD HDMI Over HDBaseT TX/RX with PoE AT-UHD-EX-70-KIT User Manual Please check http://www.atlona. com/UHD-EX-70-KIT.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
Front Panel ................... 5 b. Rear Panel ................... 5 6. Connection and Installation ................... 6 7. Specifications ................... 7 8. Safety Information ................... 8 9. Warranty ................... 9-10 10. Atlona Product Registration ................... 10 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
With 4K and Dolby TrueHD/DTS-HD Master Audio the UHD-70 extenders provide the best quality experience for an affordable price. The Atlona 4K HDMI extenders provide up to 70 meters (230 feet) of stable audio and video with a simple plug and play connection. -
Page 4: Category Cable
Using the wrong size of connectors may result in interference causing loss of signal. Important! “EZ RJ45 connectors” are not recommended with HDBaseT extenders. Doing so may result in stray EMI/RFI signals to be picked up and interfere with audio and video transmissions. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -

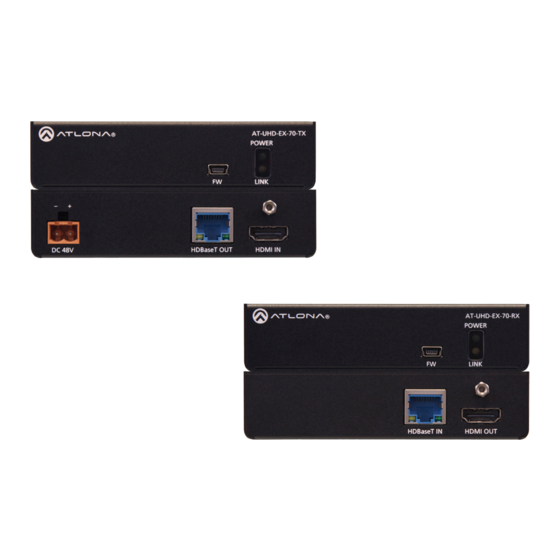

Page 5: Panel Description
(check your outlet or the power cable) 3. HDBaseT IN Port: Connect a category cable from here to an AT-UHD-EX-70-TX (included) 4. HDMI OUT Port: Connect HDMI or DVI display here (with adapter) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 6 Power Chaining Multiple kits can be powered by one power supply. The included power supply can support up to 3 kits. To power four kits use the optional power supply AT-PSU-48V1.25A (purchase through atlona.com). AT-UHD-EX-100CE-RX AT-UHD-EX-100CE-RX AT-UHD-EX-100CE-RX AT-UHD-EX-100CE-RX POWER POWER...
-
Page 7: Connection And Installation
ZONE 2 ZONE 3 ZONE 4 LINK HDMI matrix switcher (model: AT-H2H-44M) AT-UHD-EX-70-TX HDBaseT IN HDMI OUT POWER LINK DC 48V HDBaseT OUT HDMI IN AT-UHD-EX-70-RX Display POWER LINK Display HDBaseT IN HDMI OUT Display Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 8: Specifications
1.10 x 4.69 x 3.50 (inch) Weight 0.29 kg 0.64 lbs 0.27 kg 0.59 lbs Certification Power Supply CE, FCC, cULus, RoHS, CCC, RCM Product CE, FCC **4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 10: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 11: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
