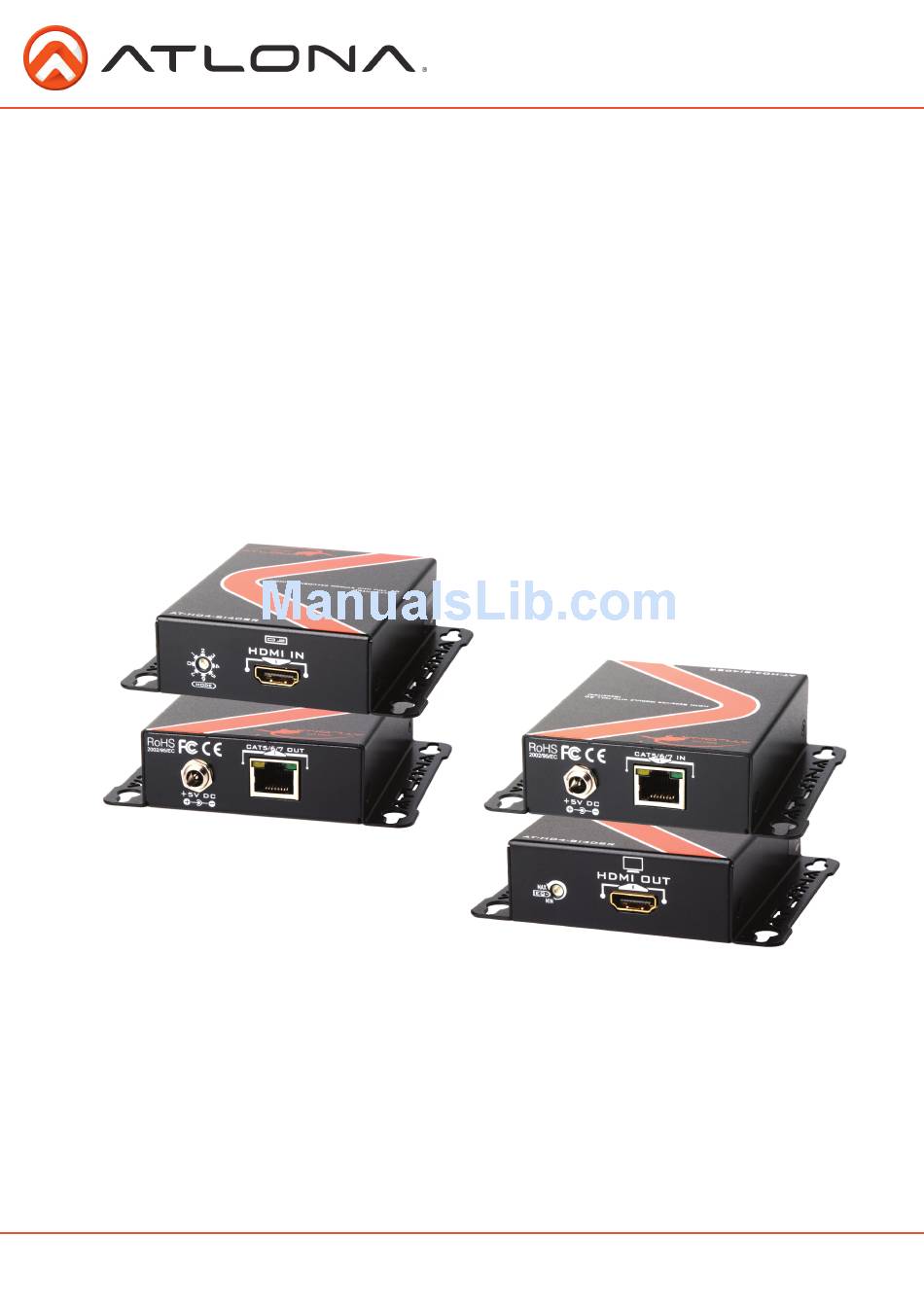

- Page 1 Atlona HDMI Extender over Single CAT5/6 up to 130 feet with 3D Support AT-HD4-SI40SR User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
7. EDID Learning ....................8.1. HDMI ..........8.2. CAT5 [RJ45] ..........9. Connection Diagram ..........10. Performance Guide ..........11. Notice ..........12. Safety Information ..........13. Warranty ..........14. Atlona Product Registration ..........Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
The AT-HD4-SI40SR boosts up your video/audio transmission distance up to 60m (200ft) in HDTV 1080i format, 40m (130ft) in HDTV 1080p format, and 20m (65ft) in HDTV 1080p with 36-bit color depth. AT-HD4-SI40SR also supports the most advanced 3D video format complaint with HDMI the highest 3D video compatibility on the market. -
Page 4: Specifications
1.1 lbs (480g) Package 1.7 lbs (780g) Fixedness Wall-mounting case with screws Power supply 5V 2A DC Power consumption 1.5 W Operation temperature 32~104°F (0~40°C) Storage temperature -4~140°F (-20~60°C) Relative humidity 20~90% RH (no condensation) Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Panel Descriptions
HDMI male-male cable 5.1.2. Rear Panel 1. +5V DC: Connect to 5V DC power supply. 2. CAT5/6/7 OUT: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Transmitting module. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Receiving Module
HDMI male-male cable. 5.2.2. Rear Panel 1. +5V DC: Connect to 5V DC power supply. 2. CAT5/6/7 IN: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Receiving module. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 7: Installation
4. Make sure this Cat-5/5e/6 cable is tightly connected and not loose. 5. Plug in 5V DC power supply module to the power jack of the receiving module of AT-HD4-SI40SR. 6. Plug in 5V DC power supply module to the power jack of the transmitting module of AT-HD4-SI40SR. -
Page 8: Hdmi Tm
Color Color Function PAIR3 TX0- TX0- TX0+ PAIR2 PAIR1 PAIR4 TX0+ TX1- TX1- TX2- TX2- W-BL TX2+ TX2+ TX1+ W-BL W-O O W-G G W-BR W-BR TXC- TX1+ JACK POSITION TXC+ TXC- W-BR TXC+ Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 9: Connection Diagram
CONNECTION DIAGRAM AT-HD4-SI40SR HDMI Source Single CAT 5e AT-HD4-SI40SR AT-H HDMI Cable Single CAT 5e HDMI Display AT-DVI15SRS AT-HD15SRS HDMI Projector/Display DVI Projector/Display PERFORMANCE GUIDE Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Solid Unshielded (UTP) ****... -
Page 10: Notice
Please try Learning EDID of the AVR while the AVR HDMI out is connected to the display (both AVR and Display should be ON) b. Select “MODE” on the transmitter to # 0, #2 or # 4 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 11: Safety Information
Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-HD4-SI40SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 12: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. - Page 13 Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
