Summary of Contents for Atlona AT-DVI60SRS
-

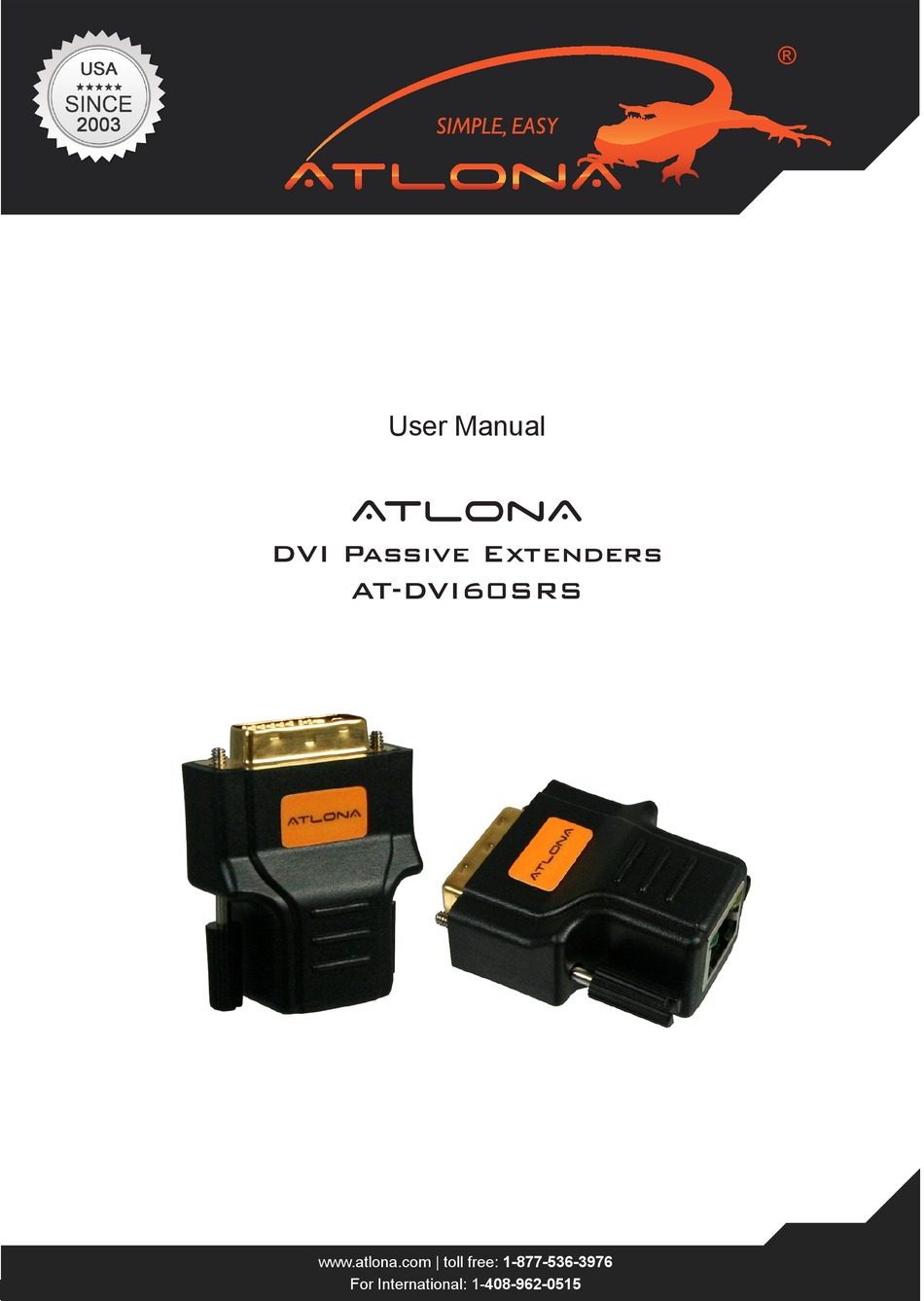

Page 1: User Manual
User Manual AtlonA DVI Passive Extenders AT-DVI60SRS www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 2: Table Of Contents
2. Package Contents ..........3. Features ..........4. Specification ..........4.1. Support Resolutions ..........5. Hardware Installation ..........6. Performance Guide ..........7. Atlona Product Registration ..........8. Safety Information ..........9. Warranty ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction

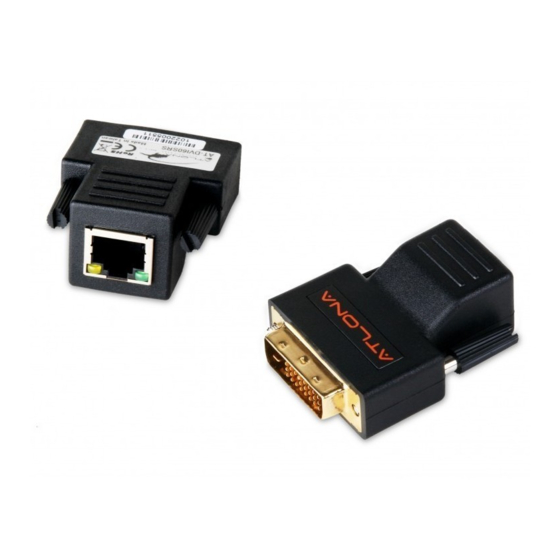

INTRODUCTION The AT-DVI60SRS is a DVI Passive Extender kit that allows to extend high resolution DVI digital sig- nals great distances. The DVI60SRS can transmit resolution such as 1920x1200 up to 160ft away or 1024x768 up to 180ft. With AT-DVI60SRS, users can send high quality digital video from DVI enabled PC/Laptop through single cost effective Cat5, Cat6 or Cat7 cable to the remote monitor or projector, instead of using short and expensive DVI cables. -
Page 4: Specification
[TX/RX] – 50g [1.8 oz] Package 180g [6.3 oz] Fixedness Direct plug-in Power supply None Power consumption 0.5 Watt [max] Operation temperature 0~40 C [32~104 Storage temperature -20~60 C [-4~140 Relative humidity 20~90% RH [no condensation] www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Hardware Installation
160ft HARDWARE INSTALLATION 1. Connect one of the AT-DVI60SRS to your DVI source. 2. Connect the other AT-DVI60SRS to your DVI display. 3. Make sure the Cat5, Cat6 or Cat7 cable is tightly connected between the DVI source and the display with the AT-DVI60SRS. -
Page 6: Performance Guide
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. -
Page 7: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 8: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
