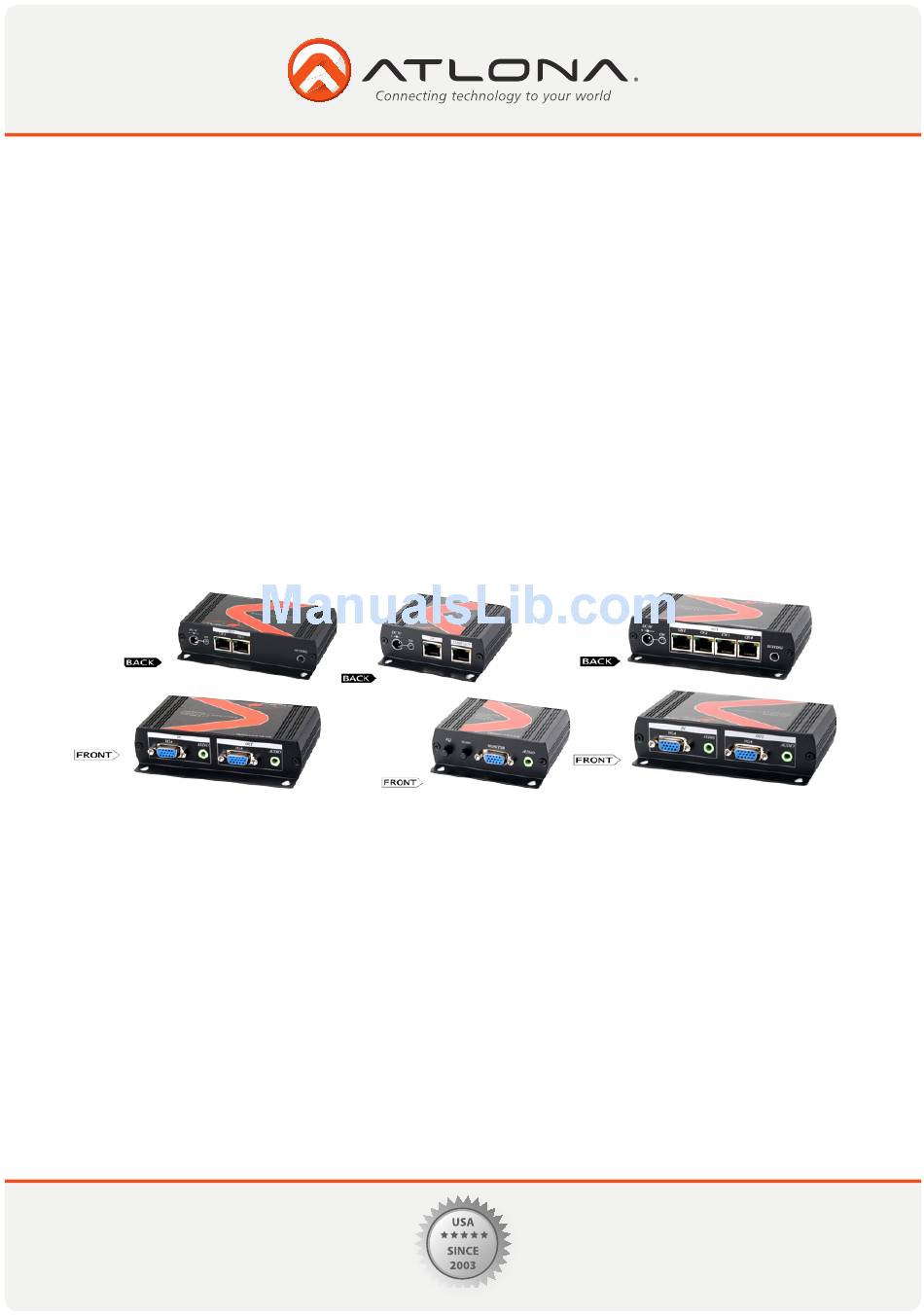

- Page 1 VGA & Stereo Audio CAT5 Extender With Chainable Output models: AT-2VGA300SL, AT-4VGA300SL, AT-VGA300RL AT-2VGA300SL AT-VGA300RL AT-4VGA300SL User Manual Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction 2. Specifications 3. Panel View 4. Switch Settings 5. Connection and Installation 6. Safety Information 7. Warranty 8. Atlona Product Registration Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
INTRODUCTION AT-2VGA300SL, AT-4VGA300SL (sender units ) are designed to transfer VGA & Stereo Audio signal over cost effective CAT5 cable. AT-VGA300RL ( receiver unit ) has built in chainable output to cascade the other receiver for working range over 1000ft (300 meters). -
Page 4: Specifications
SPECIFICATIONS ITEM NO. AT-2VGA300SL AT-4VGA300SL Resolution Up to 1600 x 1200 Video Bandwidth Sender 750MHz / Receiver 350MHz-3db Video Input / Output RGB Analog, 75Ω, 0.7Vp-p Sync Input / Output H/V Separated, 5V TTL Horizontal Frequency 30-95 KHz Vertical Frequency... -
Page 5: Panel View
DDC (1280x1024@75Hz Max) setup DDC of local monitor setup DDC backup of local monitor backup DDC of local monitor AT-2VGA300SL LED: Blue (front panel): power on/off RJ45 LE D (Link cable connector) : Yellow LE D status indication:... -
Page 6: Connection And Installation
Memory writes error Blink six times: Memory verify error AT-2VGA300SL/AT-4VGA300SL Duplicate DDC step: 1. Dip switch 1 & 2 at “down” position, if the Sender already connected to the local monitor; please jump to the third step. 2. If Sender has not connected with local monitor yet, the yellow LED will keep lit to wait local monitor connection. -
Page 7: Installation Tips
Normally it happens on long CAT 5 cable runs. 2. Recommend to use following cabling design to reduce skew status, and to add special made “skew immunized adap- tor” (2 pieces included at the package). Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 8: Safety Information
It may also cause damage to your AT- 2VGA300SL, AT-4VGA300SL, AT-VGA300RL. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or con- tact Atlona directly. -
Page 9: Warranty
To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, inciden- tal, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. -
Page 10: Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
