AtlonA
Component Video with Stereo Audio Extender
MODEL: AT-COMP150SR
User's Manual
Rev.1004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-COMP150SR and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-COMP150SR

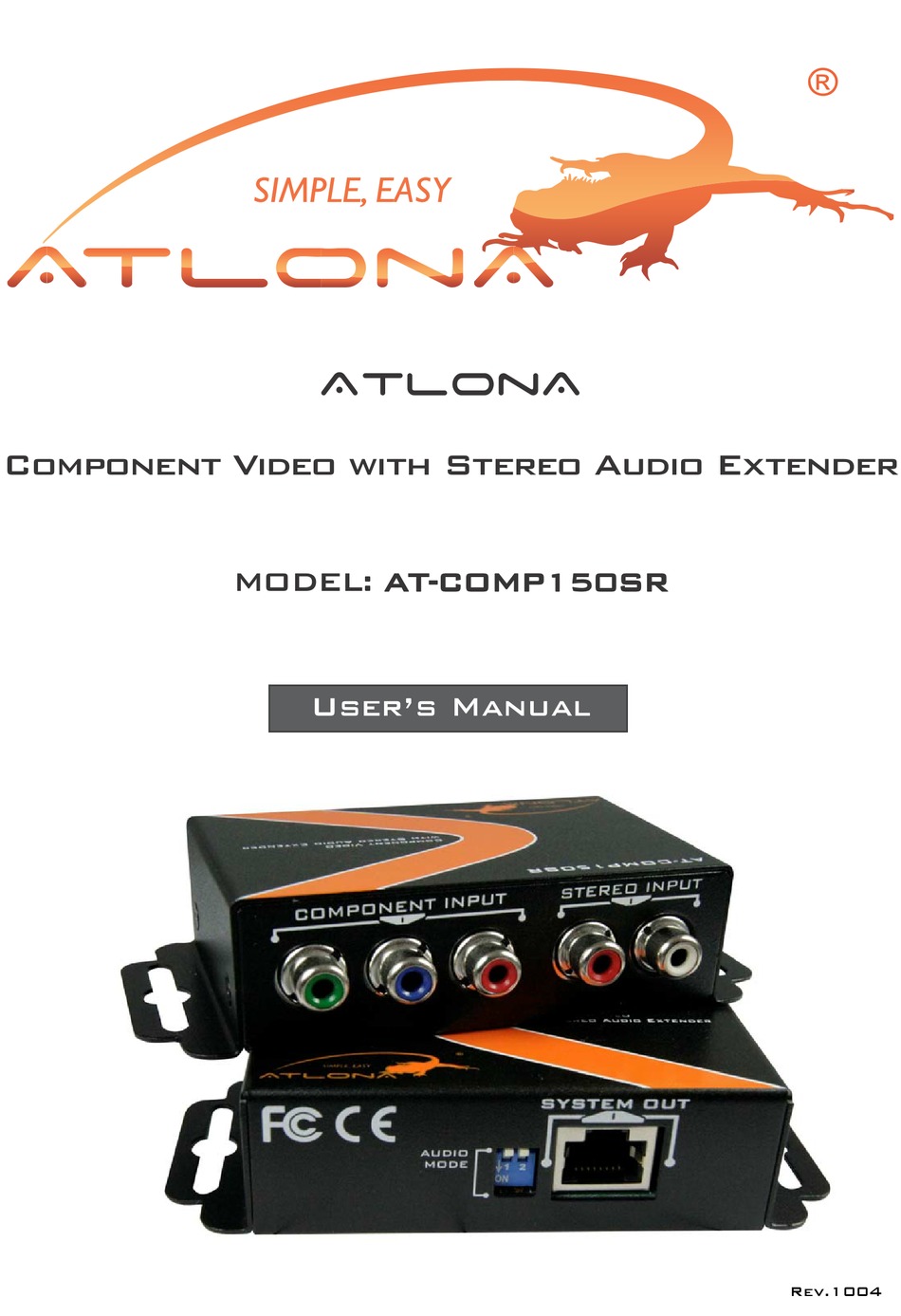

  • Page 1 AtlonA Component Video with Stereo Audio Extender MODEL: AT-COMP150SR User’s Manual Rev.1004...
  • Page 2: Table Of Contents

    ............... 4. Specifications ............... 5. Panel Description ............... 6. Audio Mode ............... 5 7. Installation ............... 6 8. Notice ............... 6 9. Safety Information ..............7 10. Warranty ..............11. Atlona Product Registration ..............9 12. Performance Guide ..............9...
  • Page 3: Introduction

    AT-COMP150SR can easily extend component (YPbPr) or composite (CVBS) video with stereo audio over only one CAT5/6 cable. The AT-COMP150SR lets you extend signals to cover the distance up to 330m (1,000ft). The devices are composed of a transmitter and a receiver.
  • Page 4: Package Contents

    PACKAGE CONTENTS 1x AT-COMP150SR (Sender unit and Receiver unit) 1x User's manual SPECIFICATIONS Model Name AT-COMP150SR Technical Role of usage Sender (TX) Receiver (RX) Video support Up to 720p60, 1080i60, 1080p30 Audio support L/R stereo analog audio HD 720p/1080i – 185m (600ft) Transmission 480i –...
  • Page 5: Panel Description

    PANEL DESCRIPTION Sender Unit: AT-COMP150S Input Panel 1. COMPONENT INPUT: Conennet to one component video or three composite video sources. 2. STEREO INPUT: Connect to an analog stereo audio source. Output Panel 3. AUDIO MODE: See next section for more detail. 4.
  • Page 6 Receiver Unit: AT-COMP150R Input Panel 5. AUDIO MODE: See next section for more detail. 6. SYSTEM IN: Connect a CAT5e/6 cable and link to the SYSTEM OUT port on the Sender unit. Output Panel 7. COMPONENT OUTPUT: Conennet to one component or three composite video displays. 8.
  • Page 7: Audio Mode

    AUDIO MODE DIP Switch Position Audio Description Pin 1 Pin 2 Set both Sender unit and Receiver unit at this position to get ON [ ] ON [ ] Mono mono Left channel audio with Right channel grounded to get better audio clarity Set both Sender unit and Receiver unit at this position to get OFF [ ]...
  • Page 8: Installation

    INSTALLATION 1. Switch off all devices, including monitors. 2. Connect the Sender unit of AT-COMP150SR to the video and audio sources. 3. Connect the Receiver unit of AT-COMP150SR to component or composite display(s) and stereo speakers. 4. Power on the displays and speakers.
  • Page 9: Safety Information

    If the wall plug does not fit into your local power socket, hire an electrician to replace Use only accessories recommended by ATLONA your obsolete socket. to avoid fire, shock or other hazards. Do not modify the wall plug.
  • Page 10: Warranty

    Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt.
  • Page 11: Atlona Product Registration

    At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
