- Page 1 USER MANUAL VGA WITH STEREO AUDIO EXTENDER KIT OVER SINGLE CAT5/6/7 WITH DDC SUPPORT AT-RGB45SR Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
6. Hardware Description ..........4 6.1. Front Panel ..........4 6.2. Rear Panel ..........4 7. Connection and Installation ..........5 8. Safety Information ..........6 9. Warranty ..........7 10. Atlona Product Registration ..........8 Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 3: Introduction

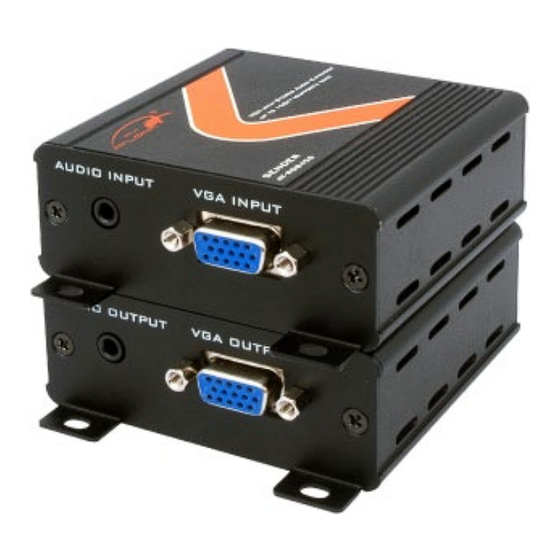

INTRODUCTION The Atlona AT-RGB45SR (transmitter and Receiver) Extender units with stereo Audio allow users to extend Video signal with resolutions VGA~WUXGA (640x480~1920x1200) up to 150ft (45m). The RGB45SR is designed to extender both audio and video on a single low cost CAT5, 6 or 7 Cable. The extenders are fea- tured with DDC (EDID) support, which is needed for video cards to know what the display capabilities are. -
Page 4: Specification
1W, Receiver: 1W Operating Temperature Storage Temperature Relative Humidity 20~90% RH (non-condensing) * Atlona recommends using CAT6 UTP (solid) cables; however the RGB45SR unit can work with standard Cat5, Cat5e, Cat6, and Cat7 cables. Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 5: Hardware Description
4. VGA OUTPUT: This output is for connecting video output from receiver module to VGA (HD15) input on the computers monitor/projector. USB202 Installation 6.2. Rear Panel Transmitter Receiver 1. RJ-45 OUTPUT / INPUT: Connect CAT5, 6 or 7 cable up to 150ft 2. DC 5V: Connect with supplied power supplies Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 6: Connection And Installation
CONNECTION AND INSTALLATION Toll free: 1-877-536-3976 www.atlona.com Local: 1-408-962-0515... -
Page 7: Safety Information
It may also cause damage to your AT-RGB45SR. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 8: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 9: 10. Atlona Product Registration
ATLONA PRODUCT REGISTRATION Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
