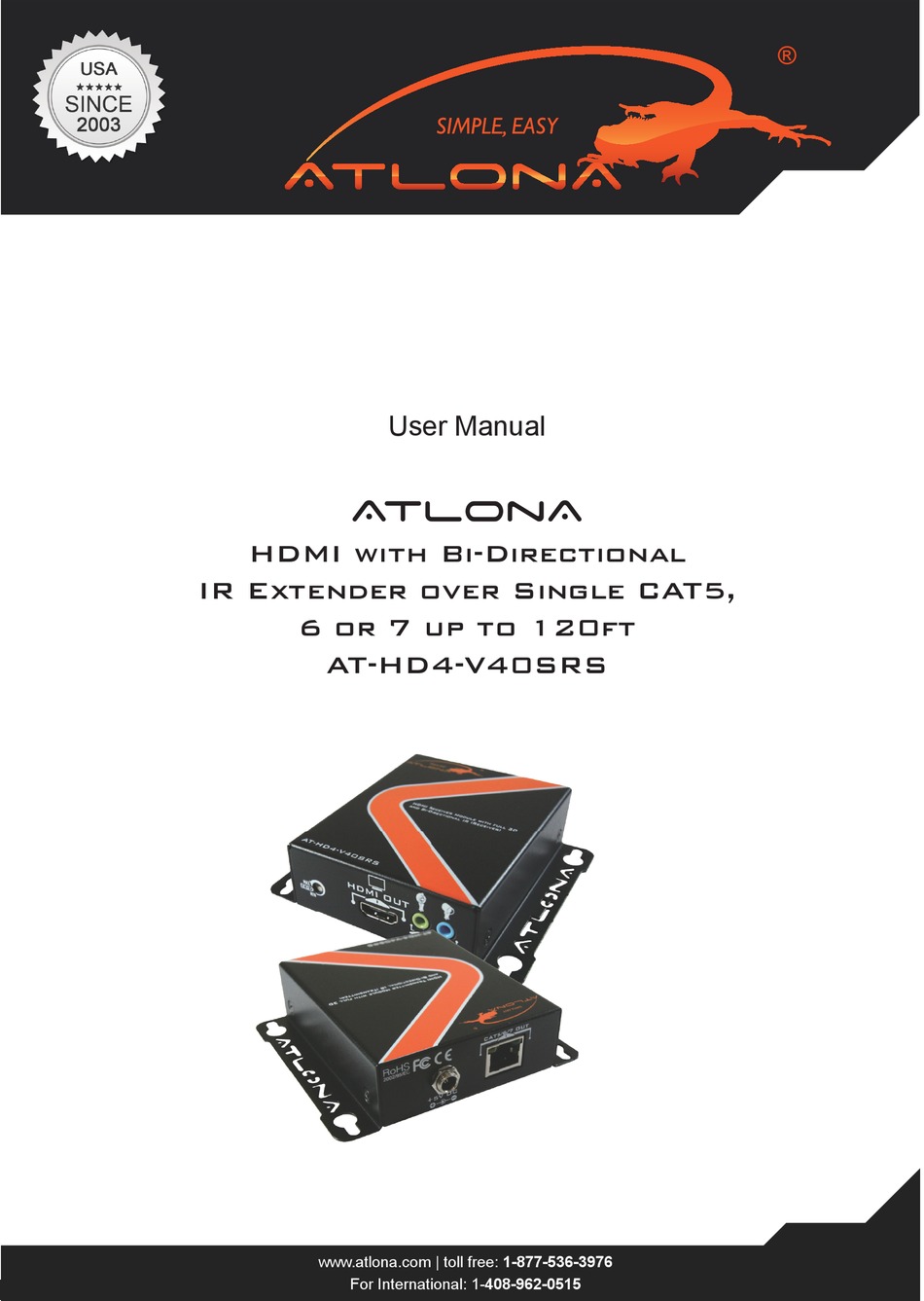

- Page 1 User Manual AtlonA HDMI with Bi-Directional IR Extender over Single CAT5, 6 or 7 up to 120ft AT-HD4-V40SRS www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515...
-
Page 2: Table Of Contents
9. Pin Definition ..........9.1. HDMI ..........9.2. CAT5 [RJ45] ..........10. Connection Diagram ..........11. Performance Guide ..........12. Notice ..........13. Safety Information ..........14. Warranty ..........15. Atlona Product Registration ..........www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 3: Introduction

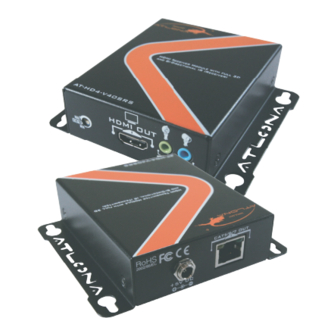

INTRODUCTION: The Atlona AT-HD4-V40SRS is an HDMI with Bi-Directional IR Extension Kit. The extenders are designed to handle full 1080p up to 130ft and 1080i/720p up to 200ft. The HD4-V40SRS are capable of supporting very high bandwidth and there are able to handle all 7 x 3D formats. -
Page 4: Specification
Package 1.7 lbs (780g) Fixedness Wall-mounting case with screws Power supply 5V 2A DC Power consumption 1.5 W Operation temperature 32~104°F (0~40°C) Storage temperature -4~140°F (-20~60°C) Relative humidity 20~90% RH (no condensation) www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 5: Panel Descriptions
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 5.1.2. Rear Panel 1. +5V DC: Connect to 5V DC power supply. 2. CAT5/6/7 OUT: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Transmitting module. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 6: Receiving Module
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster 5.2.2. Rear Panel 1. +5V DC: Connect to 5V DC power supply. 2. CAT5/6/7 IN: Plug in a Cat-5/5e/6/7 cable that needs to be linked to the Receiving module. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 7: Ir Pass-Through
1 2 3 * User can purchase any IR extension cables in the market that are compatible to the definition of the IR sockets. However, IR cables longer than 2m (6-ft) may not work. www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 8: Supported Ir Data Format
1. Connect a HDMI or DVI source (such as a Blu-ray Disc player) to the transmitting module of AT-HD4- V40SRS. 2. Connect a HDMITM or DVI display (such as a LCD TV) to the receiving module of AT-HD4-V40SRS. 3. Connect IR Blaster/Receiver to both TX and RX modules. -
Page 9: Pin Definition
Pin 13 CEC Pin 7 TMDS Data0+ Pin 14 Reserved (N.C. on device) 9.2. CAT5 [RJ45] RJ-45 Jack Data Link TIA/EIA-568-B Color Function TX0- TX0+ TX1- TX2- W-BL TX2+ TX1+ W-BR TXC- TXC+ www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 10: Connection Diagram
Performance rating Type of category cable Wiring Shielding CAT5 CAT5e CAT6 Solid Unshielded (UTP) **** ***** Shielded (STP) **** Stranded Unshielded (UTP) Shielded (STP) Termination Please use EIA/TIA-568-B termination (T568B) at any time www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 11: Notice
Please try Learning EDID of the AVR while the AVR HDMI out is connected to the display (both AVR and Display should be ON) b. Select “MODE” on the transmitter to # 0, #2 or # 4 www.atlona.com | toll free: 1-877-536-3976 For International: 1-408-962-0515... -
Page 12: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 13: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 14: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited war- ranty rights. To register go to www.atlona.com/registration www.atlona.com | toll free: 1-877-536-3976...
