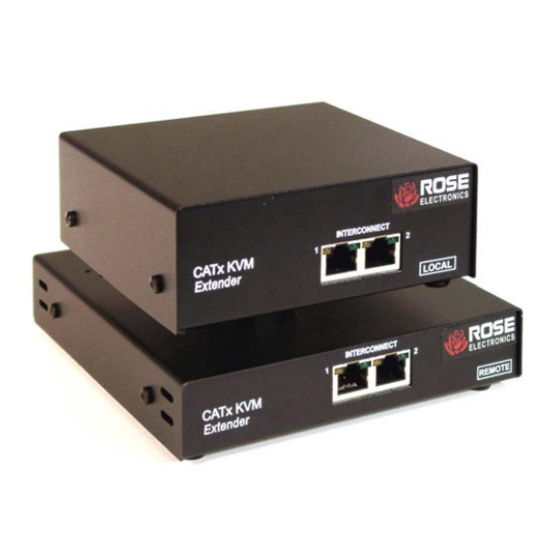

- Page 1 CrystalView Plus USB ENHANCED CAT5 KVM EXTENDER INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 Internet: WWW.ROSE.COM...
- Page 2 Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or new.
- Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A digital device in accordance with the specifications of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference...
- Page 4 EUROPEAN UNION DECLARATION OF CONFORMITY ACCORDING TO COUNCIL DIRECTIVE 89/336EEC & 73/23EEC This equipment is in conformity with the protection requirements of the following Council Directives: The Declaration of Conformity is based upon compliance of the product with the following harmonized standards: EN55022: Class A EN55024...
-
Page 5: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer ...................... 1 System introduction ..................1 Features ....................2 Compatibility ..................... 3 Package contents ..................3 Dual video Local models ................4 Dual video Remote model ................5 Cables ......................6 Serial cable ....................6 Audio cable .................... - Page 6 Figures Figure 1. Dual Video (Local models) ............. 4 Figure 2. Dual Video (Remote models) ............5 Figure 3. Dual Video Connections ..............9 Figure 7. Color skew delay compensation........... 16 Figure 8. Video Test Card................17 Figure 9 HF / LF adjustment guide.............. 17 Tables Table 1.
-
Page 7: Disclaimer
RJ45 connectors. All models can extend the distance from the CPU up to 1,000 feet. CAT-x cable can be ordered from Rose Electronics in 25-1,000 foot lengths. Using the CrystalView Plus USB to remotely access your computer has several applications that make it convenient for the users. -
Page 8: Features
Low frequency (LF) and high frequency (HF) equalization adjustments for optimum video tuning Compatible with Rose Electronics family of KVM switches such as ServeView Pro, UltraView Pro and UltraMatrix Compatible with Windows, Windows NT, OS/2, Unix, Linux and other operating systems ... -
Page 9: Compatibility
Installation and operations manual. Video, serial, audio and CAT-x cables are usually ordered separately. Rose Electronics web site Visit out web site at www.rose.com for additional information on the CrystalView Plus USB and other products that are designed for data center applications, classroom environments and other applications. -
Page 10: Dual Video Local Models
Dual video Local models Front view Rear view Figure 1. Dual Video (Local models) Connectors: Front RJ45 (2) CATx cable connection (front panel) Rear HD15F CPU video connection. (2) to CPU Video card / (2) to local monitors ... -
Page 11: Dual Video Remote Model
Dual video Remote model Front view Rear view Figure 2. Dual Video (Remote models) Connectors: Front RJ45 CATx cable connection (front panel) Rear Remote HD15F (2) KVM video connection. USB (4) USB Type A Keyboard / mouse / USB device or hub connections ... -
Page 12: Cables
The Local Unit is connected to the Remote Unit with up to 1,000 feet of standard CAT-x UTP/STP “solid core” cable terminated with RJ45M connectors. Rose Electronics cable part number CAB-08UTPnnn. The unit uses two CAT-x cables from the local unit to the remote unit. - Page 13 If you want to use a microphone on the remote unit, there are two ways to set this up: 1. Method #1 a) Connect the “LINE OUT” connector on the local unit to the “MIC” input on the CPUs sound card b) Connect a microphone to the remote units “LINE IN”...
-
Page 14: Installation
Local Unit. The Local Unit gets its power from the USB port of the CPU. Rose Electronics can supply a power transformer that connects to the Local Unit to provide this power. This power transformer can be... -
Page 15: Connecting The Cables
Connecting the cables CATx CABLE LOCAL REMOTE Dual Video + USB connection KVM STATION Figure 3. Dual Video Connections Local unit to CPU cabling Use standard HD15MM cables to connect the primary and secondary video outputs from the video card to the local unit’s HD15F connectors. A type A to Type B USB cable connects from the computer to the units Type A connector. - Page 16 Serial port The serial port is a DB9F on the local unit and DB9M on the remote unit. The serial port on the remote unit is the same as the DB9M serial connector on your computer. Serial devices such as Touchscreens can connect directly to the serial port on the remote unit Audio ports A set of powered computer speakers can connect directly to the CrystalView...
-
Page 17: Keyboard Commands
KEYBOARD COMMANDS Keyboard commands Note: Use only the numeric keys above the keyboard to initiate the keyboard commands from the remote unit. Do not use the numeric keypad. NOTE: All keyboard commands are initiated from the Remote unit. Before any keyboard command can be issued, the unit must be in the command mode and a channel selected. -
Page 18: Keyboard Command Descriptions
CrystalView Plus USB Local unit instead of the connected computer. In the command mode, the yellow LED on the remote units RJ45 connector for channel 1 will light indicating that the unit is in the command mode. The keyboard status LEDs (Num lock, Caps Lock, and Scroll Lock) will flash indicating which channel is selected. - Page 19 Reset EQ & Delay values – [L-Ctrl] + [Home] Issuing this command resets the LF and HF equalization and the red, green, and blue delay values for the selected channel. Next Assisted EQ setting – [L-Ctrl] + [PgUp] This command resets the LF and HF equalization settings, then each time the command is issued, incrementally steps through a table of preset LF and HF equalization values for different cable lengths in 25m increments from 0 to 375m.
- Page 20 Toggle GREEN delay – [L-Ctrl] + [G] Each time this command is issued, the GREEN video component delay is toggled between 0 and 19ns. Toggle BLUE delay – [L-Ctrl] + [B] Each time this command is issued, the BLUE video component delay is toggled between 0 and 19ns.
-
Page 21: Local Unit Keyboard Commands
Reset keyboard and mouse – [F1] Pressing the [F1] key while in the command mode will reset the keyboard and mouse, and then exit the command mode. Use this command if the keyboard or mouse lock up or the mouse does not initialize properly. Send NULL mouse byte –... -
Page 22: Adjusting The Video
VIDEO ADJUSTMENTS Adjusting the video All video adjustments are performed from the remote unit. Make sure all connections are in place and the video from the computer(s) connected to the local unit are powered up and operating properly. An online test card has been developed for assisting in the video skew and color delay adjustments. -
Page 23: Figure 8. Video Test Card
Black on White White on Black White on Gray Black on gray White on Cyan Yellow on gray Red on gray Red on black Green on black Blue on black SKEW SKEW KVM EXTENDER TEST CARD Figure 5. Video Test Card To begin adjusting the LF and HF equalization, display the text card as shown in Figure 5. - Page 24 3 – 7 on this and all other channels. When you enter the “Command Mode” to adjust a channel’s video, the yellow LED on the Rj45 connector for channel one will light (Not blink). When you are adjusting the video, keyboard commands are directed to the CrystalView Plus USB remote unit.
-
Page 25: Operating Instructions- All Units
CPU. All applications, upgrades and PC configurations can be performed normally. Each RJ45 connector on the remote unit has two LEDs. The left LED is yellow, the right one is green. The green LED on all channels will flash if a video signal is being received from the local unit. -
Page 26: Ddc Emulation
DDC Emulation The CrystalView Plus USB local unit emulates a universal monitor (both channels) and communicates with the graphic card that it is capable of all standard video resolutions and refresh rates, including several wide screen modes. This emulation ensures that the majority of graphic cards and monitors will operate correctly. -
Page 27: Usb Descriptor Transfer
USB Descriptor Transfer The local unit emulates a standard USB keyboard and mouse. This emulation is normally sufficient for general KVM use. To support non- standard (device specific) features such as multimedia keyboards, the USB descriptor from these non-standard USB devices can read and saved to the local unit. -
Page 28: Troubleshooting
CrystalView Plus USB and for general troubleshooting. If you have any problems or questions concerning the installation, operation or usage of the CrystalView Plus USB that is not covered in this manual, please contact Rose Electronics for technical support. Image is not sharp / smeared ... - Page 29 Only video is required, but no picture appears. The probable cause is that power to the Local Unit is not applied. The Local Unit obtains its power from the CPUs USB port. A USB cable must be connected from the Local Unit to the CPU even if no keyboard or mouse is required.
-
Page 30: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 31: Safety
SAFETY Safety The CrystalView Plus USB KVM extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView Plus USB should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. - Page 32 Safety and EMC Regulatory Statements Safety information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
-
Page 33: Appendices
APPENDICES Appendix A. General specifications Maximum resolution 1600 x 1200 @ 60 Hz (Less than 650 feet / 200M) 1280 x 1024 @ 75 Hz (650 -1,000 feet / 200 – 300M) Video compatibility Analog VGA to UXGA, RGB Video levels 0.7V P-P Video coupling Sync type... - Page 34 Width Depth Height Dimensions In / mm In / mm In / mm Local Unit Single video 4.88 / 124 4.44 / 113 1.18 / 30 Single video w/serial-audio 4.88 / 124 4.44 / 113 1.73 / 44 Dual video 4.88 / 124 4.44 / 113 1.73 / 44...
-
Page 35: Appendix B. Parts And Cables
Appendix B. Parts and cables Part Number Description CRV-DLU1 Local unit - Single video CRV-DLU2V Local unit – Dual video CRV-RU1V Remote unit – Single video CRV-RU2V Remote unit – Dual video /AUD Audio & serial option TFR-05D400FSUB-2.1 Remote / Optional local power supply CAB-08UTPnnn* CAT-5 UTP cable** CAB-D9MFnnn*... -
Page 36: Appendix C. Rack Mount Instructions
Appendix C. Rack mount instructions The optional rack mount kit includes the following items: Two black anodized mounting brackets or 3 unit mounting shelf. 6 - 32 x 3/8” flat head mounting screws. To rack mount a single unit, attach the two rack mounting brackets to your Unit with the short flange against the Unit or mount up to three units on the Rackmount shelf. -
Page 37: Appendix E. Quick Installation/Setup Guide
Appendix E. Quick Installation/Setup Guide This appendix provides a quick installation and video compensation guide for experienced users. Refer to the complete installation guide for a more detailed set of instructions. Install units 1. Connect Remote unit to KVM, serial & audio devices, additional video monitors and power 2. - Page 38 NOTES: CRYSTALVIEW PLUS USB INSTALLATION AND OPERATIONS MANUAL...
- Page 40 10707 Stancliff Road Houston, Texas 77099 Phone: (281) 933-7673 Internet: WWW.ROSE.COM...
