- Page 1 CrystalView EX DVI Multi Multi-head CATx Extender • DVI/USB 2.0/Audio • 330' (100m) Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 CrystalView EX DVI Multi to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 Copyright Rose Electronics 2017. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and recording, without the prior written permission of Rose Electronics. manual-crystalview-ex-dvi-multi-2018-04-24.docx...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Additional Installation Items System Overview CrystalView EX DVI Dual Models Connectors Indicators System Installation Transmitter installation Receiver installation Installation Verification Connecting USB Devices System Operation System Troubleshooting Safety Maintenance and Repair Technical Support Figures Figure 1. -
Page 5: Disclaimer
System Introduction Thank you for choosing the CrystalView EX DVI Multi extender from Rose Electronics for your remote accessing needs. The CrystalView EX DVI Multi system consists of a Transmitter unit and a Receiver unit. The Transmitter unit connects to your computer’s DVI-D and USB Type A connectors using DVI and USB cables. -
Page 6: Features
Features ■ Available as multi-unit (each video has USB extension), multi-head (only one video has USB extension), or video-only (no USB) ■ Uncompressed video extension provides uncompromised quality at resolutions of 1920×1200@60Hz, 1920×1080@60Hz, and others ■ Supports USB 2.0 at speeds to 40 Mbps and USB 1.1 and 1.0 at speeds from 1.5 to 12 Mbps ■... -
Page 7: Crystalview Ex Dvi Dual Models

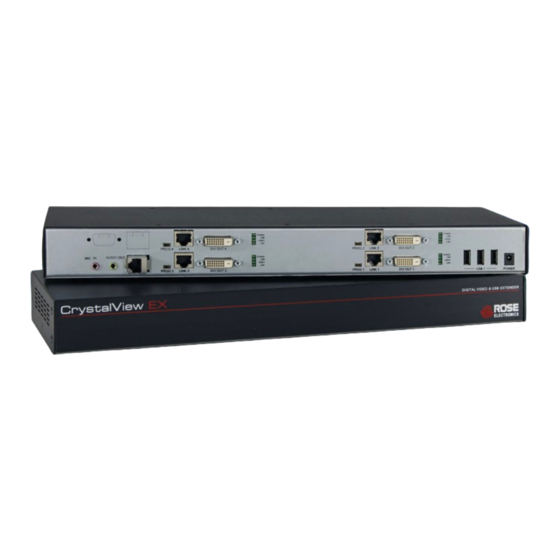

MODELS CrystalView EX DVI Dual Models The CrystalView EX DVI Multi is highly customizable. It comes in a dual chassis with two DVI cards, or a quad chassis with four DVI cards. Each card has optional USB connections. Other options include a second power supply, a serial and an audio connection. -
Page 8: Connectors
Connectors Transmitter: ■ Video In (always present): DVI-D Female 2x for Dual Chassis 2x - 4x for Quad Chassis (depending on how many main cards are present) ■ Main Card Link (always present): RJ45 Female 2x for Dual Chassis ... -
Page 9: Indicators
Receiver: ■ Video Out (always present): DVI-D Female 2x for Dual Chassis 2x - 4x for Quad Chassis (depending on how many main cards are present) ■ Main Card Link (always present): RJ45 Female 2x for Dual Chassis ... -
Page 10: System Installation
INSTALLATION AND OPERATION System Installation Before installing the CrystalView EX DVI Multi, plan the layout of the computer, the Transmitter, the Receiver, and the equipment that will be connected to the Receiver. The Transmitter and Receiver units should be in a location that are easily accessible. -
Page 11: Installation Verification
Installation Verification The Power, Link, Video, and USB LEDs on the Transmitter and Receiver units will provide information regarding the installation, cabling, video, and other items. Verify that the LEDs are registering properly If a Link LED is off, the CAT5e cable between the Transmitter and Receiver is not connected. The Power LED should be solid green. -
Page 12: System Troubleshooting
TROUBLESHOOTING System Troubleshooting All LEDs on the Transmitter or Receiver are off ■ Check the DC power adapter connection to the Unit ■ Verify there is power at the power source Link LED on the Transmitter and Receiver are off ■... -
Page 13: Safety
PRODUCT SAFETY Safety The CrystalView EX DVI Multi, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. ... -
Page 14: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. See the Limited Warranty page for more information. -
Page 15: Appendices
APPENDICES Appendix A — Specifications Mini: 8.8” × 4.85” × 1.75” / 223 × 123 × 44 mm Dimensions Wide: 16.7” × 4.85” × 1.75” / 424 × 123 × 44 mm (W × D × H) Mini chassis: 4.4 lb (2 kg) Weight Wide chassis: 6 lb (2.7 kg) 100-240 VAC 50-60Hz... -
Page 16: Appendix B - Part Numbers
Appendix B — Part Numbers CRYSTALVIEW EX DVI MULTI — EXTENDER KITS (Includes transmitter unit, receiver unit, and power supply external adapters) — MULTI-UNIT KIT 2, 3, or 4 DVI+USB Part number CHASSIS POWER SUPPLIES CRK-1DTXT2DM-2T-EX6 Mini CRK-1DTXT2D-2T-EX6 Wide CRK-1DTXT3D-3T-EX6 Wide CRK-1DTXT4D-4T-EX6 Wide... -
Page 17: Crystalview Ex Dvi Multi - Transmitter Only
CRYSTALVIEW EX DVI MULTI — TRANSMITTER ONLY (Includes transmitter unit and power supply external adapter) — MULTI-UNIT TRANSMITTER 2, 3, or 4 DVI+USB Part number CHASSIS POWER SUPPLIES CRV-SLDTXT2DM-2T-EX6 Mini CRV-SLDTXT2D-2T-EX6 Wide CRV-SLDTXT3D-3T-EX6 Wide CRV-SLDTXT4D-4T-EX6 Wide — MULTI-HEAD TRANSMITTER one USB and 1, 2, 3, or 4 DVI Part number CHASSIS POWER SUPPLIES... -
Page 18: Crystalview Ex Dvi Multi - Receiver Only
APPENDICES CRYSTALVIEW EX DVI MULTI — RECEIVER ONLY (Includes receiver unit and power supply external adapter(s)) — MULTI-UNIT RECEIVER 2, 3, or 4 DVI+USB Part number CHASSIS POWER SUPPLIES CRV-SRDTXT2DM-2T-EX6 Mini CRV-SRDTXT2D-2T-EX6 Wide CRV-SRDTXT3D-3T-EX6 Wide CRV-SRDTXT4D-4T-EX6 Wide *3-port and 4-port receiver units require two power supplies due to increased USB current —... -
Page 19: Crystalview Ex Dvi Compact Units
APPENDICES CRYSTALVIEW EX DVI COMPACT UNITS TRANSMITTER OR RECEIVER — always come with 1 DVI and 1 USB Part number CHASSIS POWER SUPPLIES CRK-1DTXT-EX6 (kit w/ Compact Transmitter & Receiver) CRV-SLDTXT-EX6 (Transmitter) Compact CRV-SRDTXT-EX6 (Receiver) Compact OPTIONS and ACCESSORIES OPTIONS (fitted on multi TX and RX units) Bi-directional Audio Serial RS232 Bi-directional Audio + Serial... - Page 20 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
