Summary of Contents for Rose electronics CrystalView DVI Quad

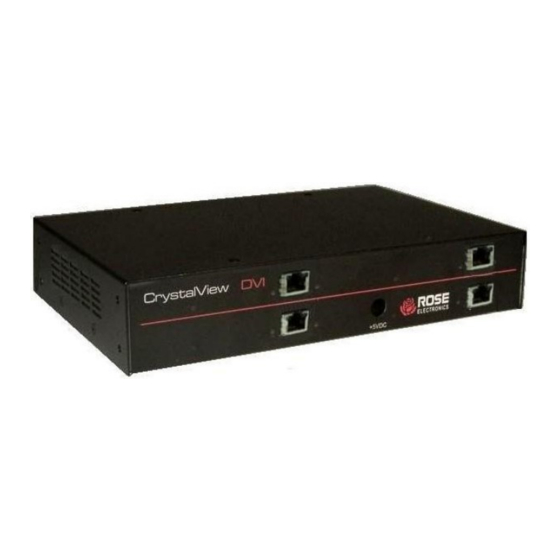

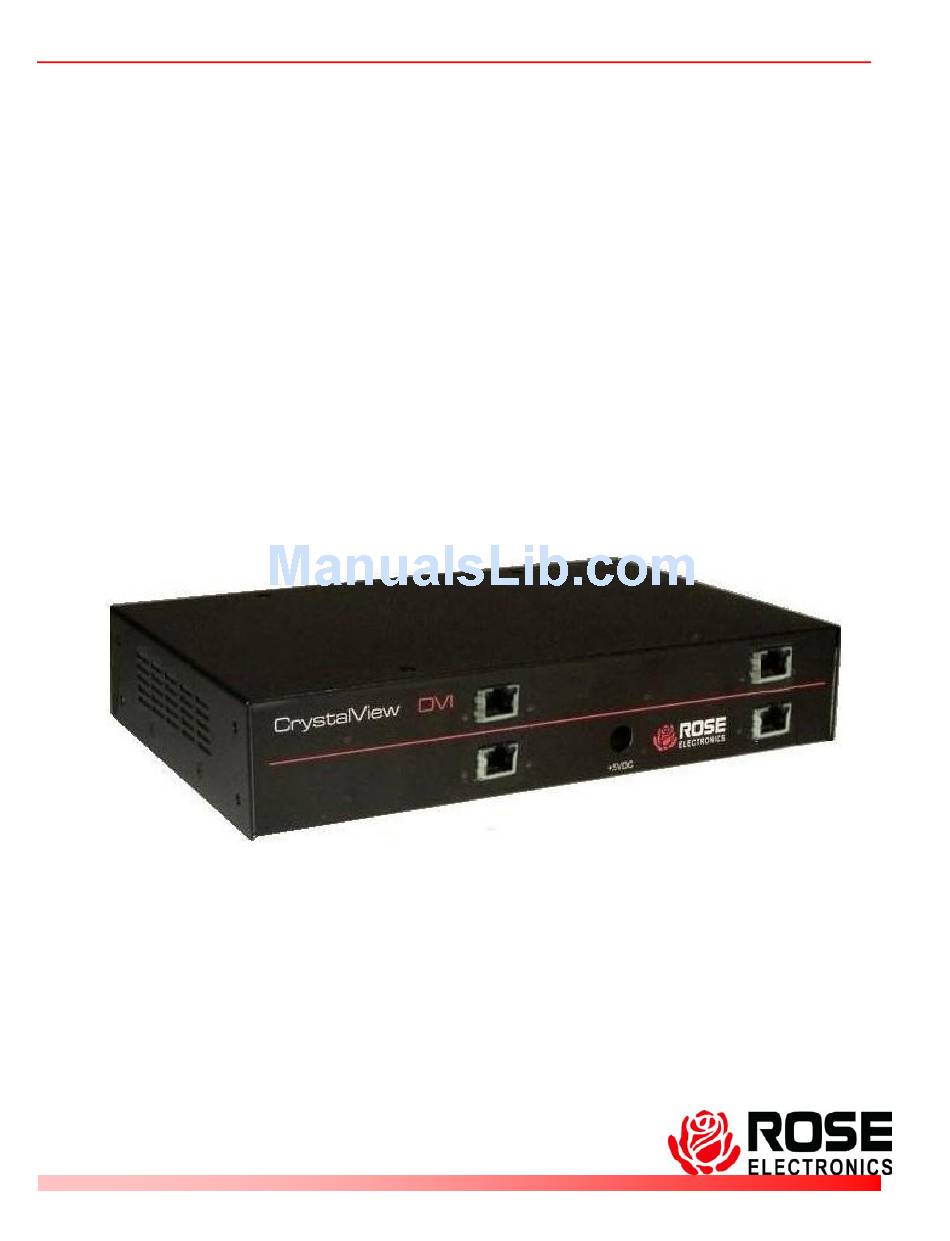

- Page 1 CrystalView DVI Quad ™ DIGITAL CATx or Fiber with USB 2.0 Extender INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 3 LIMITED WARRANTY Rose Electronics warrants the CrystalView DVI Quad to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 4 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY Product CrystalView DVI Quad This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
-
Page 5: Table Of Contents
Disclaimer ....................................2 System Introduction ................................2 Features ....................................2 Compatibility .................................... 3 Package contents ..................................3 CrystalView DVI Quad Models / Connectors .......................... 4 Installation ..................................... 22 LED Indicators ..................................25 Operation ....................................26 Color Depth Selection ................................ 27 Service Information ................................ -
Page 6: Disclaimer
(140 meters) cable. The CrystalView DVI Quad supports a wide variety of DVI-D monitors and video cards, USB or PS/2 keyboards and mice, and USB 2.0 devices, as well as line level analog audio and serial devices. Up to 4 USB 2.0 peripherals, such as USB speakers, printers, USB mass storage devices and web cameras can be directly... -
Page 7: Compatibility
PS/2 Keyboard/Mouse “Y” cable. Mini-DIN 6(M) to 2*mini-DIN 6(F). For connecting local keyboard and mouse to PS/2 equipped transmitter units. If the package contents are not correct, contact Rose Electronics or your reseller, so the problem can be quickly resolved. -
Page 8: Crystalview Dvi Quad Models / Connectors
CRV-DLDTX0D1D/AS/R……DV I Video + Aud/Ser CATx CRV-SRDTX0D1D/AS/R…….DV I Video + Aud/Ser CATx CRV-DLDFM0D1D/AS/R……DVI Video + Aud/Ser, Multi-mode Fiber CRV-SRDFM0D1D/AS/R……DVI Video + Aud/Ser, Multi-mode Fiber CRV-DLDFS0D1D/AS/R……DVI Video + Aud/Ser, Single-mode Fiber CRV-SRDFS0D1D/AS/R…….DVI Video + Aud/Ser, Single-mode Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... - Page 9 CRV-DLDTX0D2D/AS/R……….2x DVI + Aud/Ser, CATx CRV-SRDTX0D2D/AS/R……….2x DVI + Aud/Ser, CATx CRV-DLDFM0D2D/AS/R………2x DVI + Aud/Ser, MM Fiber CRV-SRDFM0D2D/AS/R………2x DVI + Aud/Ser, MM Fiber CRV-DLDFS0D2D/AS/R……….2x DVI + Aud/Ser, SM Fiber CRV-SRDFS0D2D/AS/R……….2x DVI + Aud/Ser, SM Fibe CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 10 CRV-SRDTXPD1D/AUD/R……DVI + PS/2 + Aud/Ser, CATx CRV-DLDFMPD1D/AUD/R…...DVI + PS/2 + Aud/Ser, MM Fiber CRV-SRDFMPD1D/AUD/R…...DVI + PS/2 + Aud/Ser, MM Fiber CRV-DLDFSPD1D/AUD/R……DVI + PS/2 + Aud/Ser, SM Fiber CRV-SRDFSPD1D/AUD/R……DVI + PS/2 + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 11 CRV-DLDFSTD1DP/R…….DVI + PS/2 + USB 2.0, SM Fiber CRV-SRDFSTD1DP/R…….DVI + PS/2 + USB 2.0, SM Fiber CRV-DLDTXTD1DP/AUD/R….DVI+PS/2+USB 2.0+Aud/Ser, CATx CRV-SRDTXTD1DP/AUD/R….DVI+PS/2+USB 2.0+Aud/Ser, CATx CRV-DLDFMTD1DP/AUD/R…DVI+PS/2+USB 2.0+Aud/Ser, MM Fiber CRV-SRDFMTD1DP/AUD/R…DVI+PS/2+USB 2.0+Aud/Ser, MM Fiber CRV-DLDFSTD1DP/AUD/R….DVI+PS/2+USB 2.0+Aud/Ser, SM Fiber CRV-SRDFSTD1DP/AUD/R….DVI+PS/2+USB 2.0+Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 12 CRV-DLDFMUD2D/AS/R…2x DVI + USB HID + Aud/Ser, MM Fiber CRV-SRDFMUD2D/AS/R…2x DVI + USB HID + Aud/Ser, MM Fiber CRV-DLDFSUD2D/AS/R… 2x DVI + USB HID + Aud/Ser, SM Fiber CRV-SRDFSUD2D/AS/R… 2x DVI + USB HID + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 13 CRV-SRDTXTD2D/AS/R…2x DVI+USB HID+USB 2.0+Aud/Ser, CATx CRV-DLDFMTD2D/AS/R..2x DVI+USB HID+USB 2.0+Aud/Ser, MM Fiber CRV-SRDFMTD2D/AS/R…2x DVI+USB HID+USB 2.0+Aud/Ser, MM Fiber CRV-DLDFSTD2D/AS/R..2x DVI + USB HID + USB 2.0+Aud/Ser, SM Fiber CRV-SRDFSTD2D/AS/R….2x DVI+USB HID+USB 2.0+Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 14 CRV-DLDFMPD2D/AS/R…2x DVI + PS/2 + Aud/Ser, MM Fiber CRV-SRDFMPD2D/AS/R…2x DVI + PS/2 + Aud/Ser, MM Fiber CRV-DLDFSPD2D/AS/R… 2x DVI + PS/2 + Aud/Ser, SM Fiber CRV-SRDFSPD2D/AS/R… 2x DVI + PS/2 + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 15 CRV-SRDFSMUD2DP/R…….2x DV I + USB HID + PS/2, SM Fiber CRV-DLDTXUD2DP/AUD/R……2x DV I+USB HID+PS/2+Aud/Ser, CATx CRV-SRDTXUD2DP/AUD/R…...2x DV I+USB HID+PS/2+Aud/Ser, CATx CRV-DLDFMUD2DP/AUD/R…..2x DVI+USB HID+PS/2+Aud/Ser, MM Fiber CRV-SRDFMUD2DP/AUD/R…..2x DV I+USB HID+PS/2+Aud/Ser, MM Fiber CRV-DLDFSUD2DP/AUD/R…2x DVI+USB HID+PS/2+Aud/Ser, SM Fiber CRV-SRDFSUD2DP/AUD/R…2x DV I+USB HID+PS/2+Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 16 CRV-DLDTXTD2DP/AUD/R.…2x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, CATx CRV-SRDTXTD2DP/AUD/R…2x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, CATx CRV-DLDFMTD2DP/AUD/R…2x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, MM Fiber CRV-SRDFMTD2DP/AUD/R…2x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, MM Fiber CRV-DLDFSTD2DP/AUD/R…2x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, SM Fiber CRV-SRDFSTD2DP/AUD/R….2x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 17 CRV-DLDTX0D3D/AS/R………3x DVI + Aud/Ser, CATx CRV-SRDTX0D3D/AS/R……….3x DVI + Aud/Ser, CATx CRV-DLDFM0D3D/AS/R………3x DVI + Aud/Ser, MM Fiber CRV-SRDFM0D3D/AS/R………3x DVI + Aud/Ser, MM Fiber CRV-DLDFS0D3D/AS/R………3x DVI + Aud/Ser, SM Fiber CRV-SRDFS0D3D/AS/R……….3x DVI + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 18 CRV-DLDFMUD3D/AS/R…3x DVI + USB HID + Aud/Ser, MM Fiber CRV-SRDFMUD3D/AS/R…3x DVI + USB HID + Aud/Ser, MM Fiber CRV-DLDFSUD3D/AS/R… 3x DVI + USB HID + Aud/Ser, SM Fiber CRV-SRDFSUD3D/AS/R… 3x DVI + USB HID + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 19 CRV-DLDFMTD3D/AS/R…3x DVI+USB HID+USB 2.0+Aud/Ser, MM Fiber CRV-SRDFMTD3D/AS/R…3x DVI+USB HID+USB 2.0 +Aud/Ser , MM Fiber +Aud/Ser +Aud/Ser CRV-DLDFSTD3D/AS/R…3x DVI + USB HID + USB 2.0 , SM Fiber CRV-SRDFSTD3D/AS/R….3x DVI+USB HID+USB 2.0 , SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 20 CRV-DLDFMPD3D/AS/R…3x DVI + PS/2 + Aud/Ser, MM Fiber CRV-SRDFMPD3D/AS/R…3x DVI + PS/2 + Aud/Ser, MM Fiber CRV-DLDFSPD3D/AS/R… 3x DVI + PS/2 + Aud/Ser, SM Fiber CRV-SRDFSPD3D/AS/R… 3x DVI + PS/2 + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 21 CRV-SRDFSUD3D/AUD/R… 3x DVI+USB HID+PS/2+Aud/Ser, SM Fiber CRV-DLDTXUD3DP/AS/R….3x DVI+USB HID+PS/2+Aud/Ser, CATx CRV-SRDTXUD3DP/AS//R….3x DVI+USB HID+PS/2+Aud/Ser, CATx CRV-DLDFMUD3DP/AS/R…3x DVI+USB HID+PS/2+Aud/Ser, MM Fiber CRV-SRDFMUD3DP/AS/R…3x DVI+USB HID+PS/2+Aud/Ser, MM Fiber CRV-DLDFSUD3DP/AS/R….3x DVI+USB HID+PS/2+Aud/Ser, SM Fiber CRV-SRDFSUD3DP/AS/R… 3x DVI+USB HID+PS/2+Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 22 CRV-SRDTXTD3DP/AS/R 3x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, CATx CRV-DLDFMTD3DP/AS/R 3x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, MM Fiber CRV-SRDFMTD3DP/AS/R 3x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, M Fiber CRV-DLDFSTD3DP/AS/R 3x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, SM Fiber CRV-SRDFSTD3DP/AS/R 3x DVI+USB HID+PS/2+USB 2.0+Aud/Ser, SMFiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 23 CRV-DLDTX0D4D/AS/R………4x DVI + Aud/Ser, CATx CRV-SRDTX0D4D/AS/R………4x DVI + Aud/Ser, CATx CRV-DLDFM0D4D/AS/R………4x DVI + Aud/Ser, MM Fiber CRV-SRDFM0D4D/AS/R………4x DVI + Aud/Ser, MM Fiber CRV-DLDFS0D4D/AS/R………4x DVI + Aud/Ser, SM Fiber CRV-SRDFS0D4D/AS/R……….4x DVI + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 24 CRV-SRDFSUD4DP/R……….4x DVI + USB HID + PS/2, SM Fiber CRV-DLDTXUD4DP/AS/R….4x DVI+USB HID+PS/2+Aud/Ser, CATx CRV-SRDTXUD4DP/AS//R…4x DVI+USB HID+PS/2+Aud/Ser, CATx CRV-DLDFMUD4DP/AS/R…4x DVI+USB HID+PS/2+Aud/Ser, MM Fiber CRV-SRDFMUD4DP/AS/R…4x DVI+USB HID+PS/2+Aud/Ser, MM Fiber CRV-DLDFSUD4DP/AS/R… 4x DVI+USB HID+PS/2+Aud/Ser, SM Fiber CRV-SRDFSUD4DP/AS/R… 4x DVI+USB HID+PS/2+Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 25 CRV-SRDTXTD4DP/AS……….4x DVI + USB HID + PS/2 + USB 2.0 + Aud/Ser, CATx CRV-SRDFMTD4DP/AS……….4x DVI + USB HID + PS/2 + USB 2.0 + Aud/Ser, MM Fiber CRV-SRDFSTD4DP/AS……….4x DVI + USB HID + PS/2 + USB 2.0 + Aud/Ser, SM Fiber CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
-
Page 26: Installation
Keep the cables as short as possible but still give some freedom of movement. Using shorter cables keeps the video noise to a minimum and reduces installation costs. You can mount the CrystalView DVI Quad in a CPU rack with the optional rack mount kit. When mounting the units in a rack provide adequate air circulation to assure that the maximum operating temperature is not exceeded. -
Page 27: Figure 1. Connecting 4-Port Transmitter And Receiver
Receiver Link ports as shown. Distance between To +5V DC Transmitter and Receiver Power can be up to 450 feet. CrystalView DVI Quad Receiver Figure 2. Connecting 3-port Transmitter and Receiver CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 28: Figure 3. Connecting 2-Port Transmitter And Receiver
Receiver Link port as shown. Distance between To +5V DC Transmitter and Receiver Power can be up to 450 feet. CrystalView DVI Quad Receiver Figure 4. Connecting 1-port Transmitter and Receiver CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 29: Led Indicators
LINK ERROR STATUS Figure 6. Fiber Port LED Indicators DVI Video Status LED (Green) Off – No video signal detected • On – Video signal detected, device ready • Figure 7.Video Status LED CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 30: Operation
Non-HID devices such as scanners, printers, cameras and flash memory sticks will not work with the USB HID ports of the CrystalView DVI Quad Extender. The Extender supports two USB HID devices at a time, such as keyboard and mouse or keyboard and touchscreen, but not keyboard and mouse and touchscreen at the same time. -
Page 31: Color Depth Selection
Refer to Figure 8 for the location of JP3. Replace the top chassis. Color Depth 16Bit/24 bit AutoSelect (Depending on screen content – Default) 24 bit Table 3. Color Depth jumper (Transmitter unit) CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 32: Figure 9. Jumper Settings (Receiver Unit)
Switching during HSYNC will have a higher frame rate but horizontal screen breaks may be detectable. Switching during VSYNC has a lower frame rate with no horizontal screen breaks but stepping pictures are possible. CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 33: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. See Limited Warranty for more information. -
Page 34: Product Safety
SAFETY Product Safety The CrystalView DVI Quad has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView DVI Quad should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. -
Page 35: Appendices
Power Transmitter unit 5.0VDC / 4.0A Receiver unit 5.0VDC / 4.0A Environmental Operating Temp. 41ºF to 113ºF ( 5ºC to 45ºC) Storage Temp. -13ºF to 140ºF (-25ºC to 60ºC) Humidity 80% non-condensing max CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 36: Appendix B - Part Numbers
19 inch Rackmount Bracket for “B” chassis units RM-UD-1U Under desk Rackmount plate Appendix C – RackMount Kit Use the RM-UM19 Rack-mount kit to install the product in a standard 19” server rack CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 37: Appendix D - Serial / Audio Setup And Operation
Transmitter Unit’s ‘Line Out’ connection should then be wired to ‘Line In’ (Blue) on your sound card. If your microphone is already amplified, follow the second method but DO NOT install the amplification jumper in the Remote Unit. CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... -
Page 38: Appendix E - Kit Part Numbers
1x DVI + AUD/Ser CRK-2DFS0D1D/R/AUD CRV-DLDFS0D1D/R/AUD CRV-SRDFS0D1D/R/AUD 1x Video 1x DVI+HID+AUD/Ser CRK-2DFSUD1D/R/AUD CRV-DLDFSUD1D/R/AUD CRV-SRDFSUD1D/R/AUD 1x Video 1x DVI+HID+USB2+AUD/Ser CRK-2DFSTD1D/R/AUD CRV-DLDFSXTD1D/R/AUD CRV-SRDFSXTD1D/R/AUD 1x Video 1x DVI+HID+PS2+USB2+AUD/Ser CRK-2DFSTD1DP/R/AUD CRV-DLDFSTD1DP/R/AUD CRV-SRDFSTD1DP/R/AUD 1x Video 1x DVI+PS2+AUD/Ser CRK-2DFSPD1D/R/AUD CRV-DLDFSPD1D/R/AUD CRV-SRDFSPD1D/R/AUD CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL... - Page 39 2x DVI + AUD/Ser CRK-2DFS0D2D/R/AUD CRV-DLDFS0D2D/R/AUD CRV-SRDFS0D2D/R/AUD 2x Video 2x DVI+HID+AUD/Ser CRK-2DFSUD2D/R/AUD CRV-DLDFSUD2D/R/AUD CRV-SRDFSUD2D/R/AUD 2x Video 2x DVI+HID+USB2+AUD/Ser CRK-2DFSTD2D/R/AUD CRV-DLDFSTD2D/R/AUD CRV-SRDFSTD2D/R/AUD 2x Video 2x DVI+HID+PS2+USB2+AUD/Ser CRK-2DFSTD2DP/R/AUD CRV-DLDFSTD2DP/R/AUD CRV-SRDFSTD2DP/R/AUD 2x Video 2x DVI+PS2+AUD/Ser CRK-2DFSPD2D/R/AUD CRV-DLDFSPD2D/R/AUD CRV-SRDFSPD2D/R/AUD CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 40 3x DVI + AUD/Ser CRK-2DFS0D3D/R/AUD CRV-DLDFS0D3D/R/AUD CRV-SRDFS0D3D/R/AUD 3x Video 3x DVI+HID+AUD/Ser CRK-2DFSUD3D/R/AUD CRV-DLDFSUD3D/R/AUD CRV-SRDFSUD3D/R/AUD 3x Video 3x DVI+HID+USB2+AUD/Ser CRK-2DFSTD3D/R/AUD CRV-DLDFSTD3D/R/AUD CRV-SRDFSTD3D/R/AUD 3x Video 3x DVI+HID+PS2+USB2+AUD/Ser CRK-2DFSTD3DP/R/AUD CRV-DLDFSTD3DP/R/AUD CRV-SRDFSTD3DP/R/AUD 3x Video 3x DVI+PS2+AUD/Ser CRK-2DFSPD3D/R/AUD CRV-DLDFSPD3D/R/AUD CRV-SRDFSPD3D/R/AUD CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 41 4x DVI + AUD/Ser CRK-2DFS0D4D/R/AUD CRV-DLDFS0D4D/R/AUD CRV-SRDFS0D4D/R/AUD 4x Video 4x DVI+HID+AUD/Ser CRK-2DFSUD4D/R/AUD CRV-DLDFSUD4D/R/AUD CRV-SRDFSUD4D/R/AUD 4x Video 4x DVI+HID+USB2+AUD/Ser CRK-2DFSTD4D/R/AUD CRV-DLDFSTD4D/R/AUD CRV-SRDFSTD4D/R/AUD 4x Video 4x DVI+HID+PS2+USB2+AUD/Ser CRK-2DFSTD4DP/R/AUD CRV-DLDFSTD4DP/R/AUD CRV-SRDFSTD4DP/R/AUD 4x Video 4x DVI+PS2+AUD/Ser CRK-2DFSPD4D/R/AUD CRV-DLDFSPD4D/R/AUD CRV-SRDFSPD4D/R/AUD CRYSTALVIEW DVI QUAD INSTALLATION AND OPERATIONS MANUAL...
- Page 42 10707 Stancliff Road Houston, Texas 77099 Phone: (281) 933-7673 WWW.ROSE.COM...
