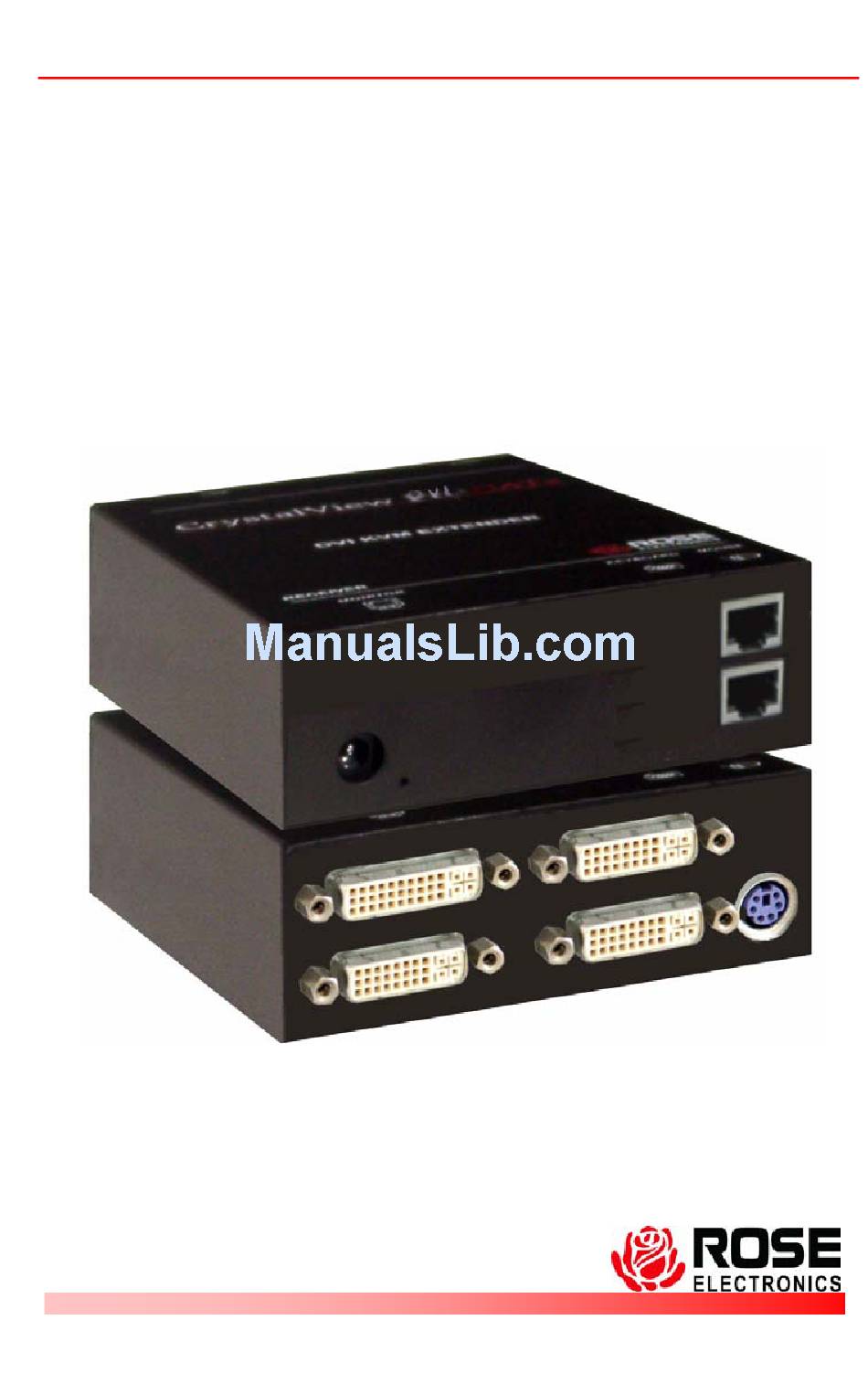

- Page 1 ™ CrystalView DVI CATx DIGITAL CATx KVM EXTENDER INSTALLATION AND OPERATIONS MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
-
Page 2: Limited Warranty
LIMITED WARRANTY Rose Electronics warrants the CrystalView DVI CATx to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. - Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication. It has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer ... 1 System introduction ... 1 Features... 2 Compatibility ... 2 Models ... 3 Cables... 5 Installation... 6 Transmitter to Receiver cabling... 7 Applying power ... 7 LED Indicators ... 8 Figures Figure 1. Typical cabling configurations ... 6 Tables Table 1.transmitter to receiver cabling ... -
Page 5: Disclaimer

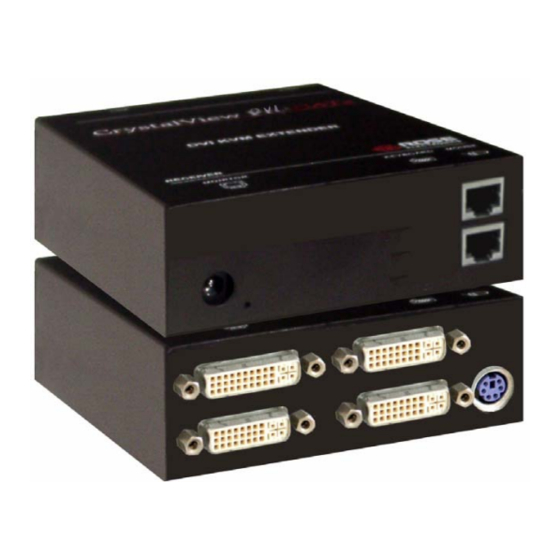

The system consists of two Units, a transmitter and a receiver. The transmitter connects to your CPUs keyboard, DVI monitor, and mouse connectors, or to a Rose KVM switch. The receiver connects to a keyboard, DVI video monitor and mouse or KVM station. The transmitter and receiver are connected together with CATx industry standard cable. -
Page 6: Features
Features Perfect image quality at resolutions up to 1920 x 1200 @ 60Hz using CAT5, 5e, 6, or 7 cable Extend a KVM station from a CPU up to 450 feet (140m) Supports PS/2 or USB keyboards and mouse (Depending on model) Supports all DVI-D graphic cards Single and dual video models available Serial and full stereo audio option... -
Page 7: Models
MODELS Models (Single Video) PS/2 Transmitter PS/2 Receiver USB Transmitter USB Receiver PS/2 Transmitter w/Serial/Audio PS/2 Receiver w/Serial/Audio USB Transmitter w/Serial/Audio USB Receiver w/Serial/Audio Receiver / Transmitter – All Single Video models CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL... - Page 8 Models (Dual Video) PS/2 Transmitter PS/2 Receiver USB Transmitter USB Receiver PS/2 Transmitter w/Serial/Audio PS/2 Receiver w/Serial/Audio USB Transmitter w/Serial/Audio USB Receiver w/Serial/Audio Receiver / Transmitter – All Dual Video models CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL...
-
Page 9: Cables
KVM access. CrystalView DVI CATx to Rose switch cable To connect a transmitter to a Rose switch such as a ServeView, UltraMatrix or UltraView, use a CPU adapter cable. Transmitter unit to Receiver unit cable... -
Page 10: Installation
CrystalView DVI CATX. When installing the CrystalView DVI CATX, locate the transmitter as close as possible to the CPU or switch. Keep the cables as short as possible but still give some freedom of movement. Using shorter cables keeps the video noise to a minimum and reduces installation costs. -
Page 11: Transmitter To Receiver Cabling
TRANSMITTER LOCAL KVM ACCESS Connect the local USB model transmitter as shown below (single or dual video). A USB hub is used for local keyboard and mouse connections to the computer. Transmitter to Receiver cabling Cable type CAT5, 5e, 6, or 7 Table 1.transmitter to receiver cabling Applying power With all cable connections made, plug in the provided power adapters to a... -
Page 12: Led Indicators
INSTALLATION LED Indicators POWER VIDEO OK Off – No power applied, device not ready On- Power applied, device ready Data Error (Green) • Off - No errors, device ready • Blinking / On – Transmitter / Receiver communication not established, cable to long, attenuation to high excess EMI interference Link Status (Green) •... -
Page 13: Operation
OPERATION Operating instructions – Local KVM access Operation of your computer is no different than having your keyboard, monitor, and mouse connected directly to the computer. All functions, applications, upgrades and other items can be done normally. The only difference is the computer can be up to 450 feet away. CrystalView DVI CATx with local KVM access allows an additional KVM station to be connected to the transmitter. -
Page 14: Troubleshooting
TROUBLESHOOTING Troubleshooting The troubleshooting section is used as a guide to understanding the capabilities of the CrystalView DVI CATx and for general troubleshooting. If you have any problems or questions concerning the installation, operation or usage of the CrystalView DVI CATx that is not covered in this manual, please contact Rose Electronics for technical support. - Page 15 SERVICE Service Information Maintenance and Repair This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container.
- Page 16 SAFETY Safety The CrystalView DVI CATx KVM extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView DVI CATx should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.
- Page 17 Safety and EMC Regulatory Statements Safety information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
-
Page 18: Appendices Appendix A. General Specifications
APPENDICES Appendix A. General specifications Maximum resolution Video compatibility Keyboard Mouse Transmitter power Receiver power Connectors Temp/Humidity Weight Dimensions CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL DVI – 1920 x 1200 @ 60Hz DVI-D PS/2 or USB PS/2 or USB 90-240 VAC adapter to 5VDC / app. -
Page 19: Appendix B. Parts And Cables
Appendix B. Parts and cables Part Number CRV-DLDTXPD1D CRV-SRDTXPD1D CRV-DLDTXPD2D CRV-SRDTXPD2D CRV-DLDTXUD1D CRV-SRDTXUD1D CRV-DLDTXUD2D CRV-SRDTXUD2D CAB-DDPMDD66M006 DVI-D w/PS2 to DVI-D & 2 MD6M, 6’ CAB-MD6M2MD6F TFR-05D240FSUB CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL Description DVI-D / PS/2 Single video (Transmitter) DVI-D / PS/2 Single video (Receiver) DVI-D / PS/2 Dual video (Transmitter) DVI-D / PS/2 Dual video (Receiver) - Page 20 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
