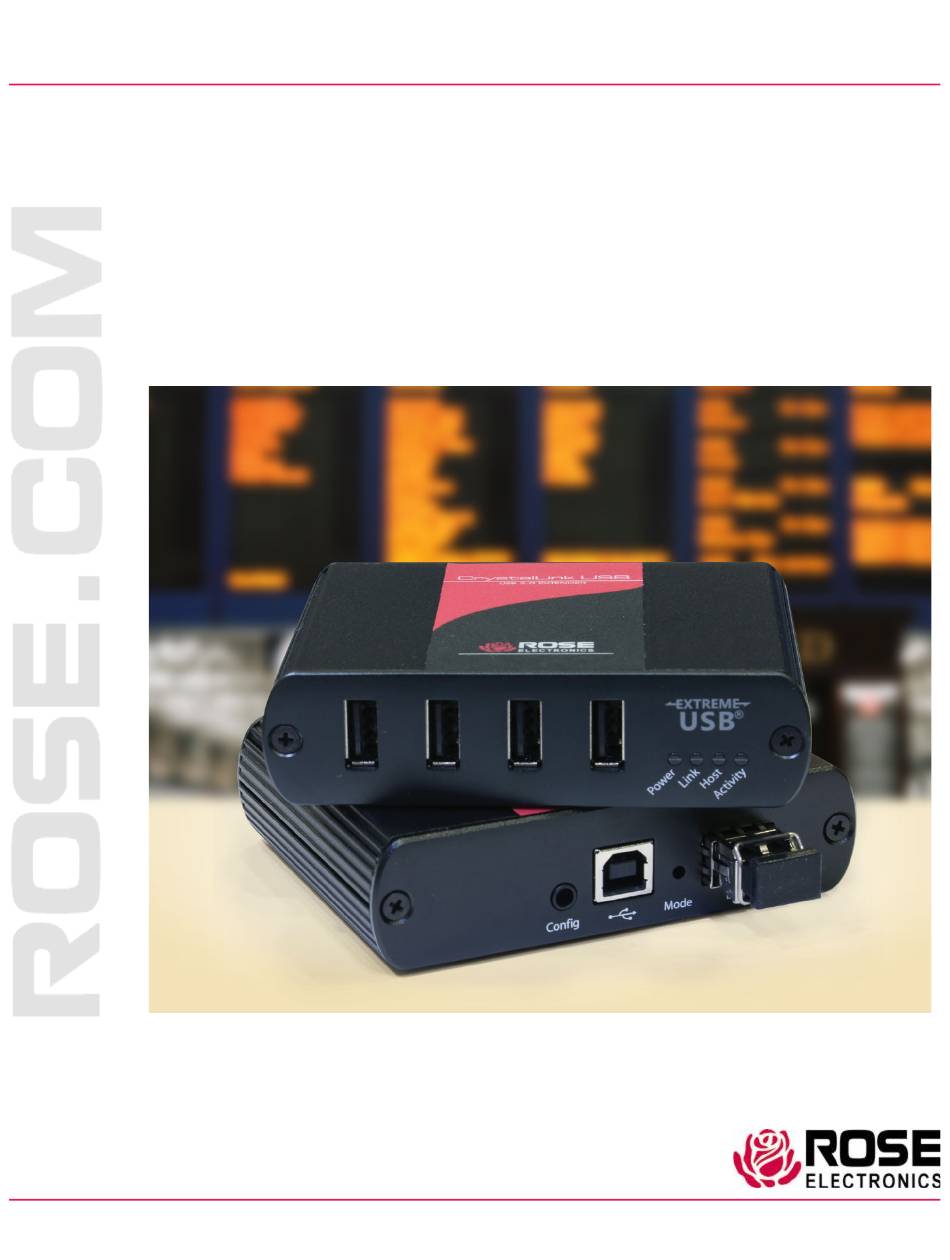

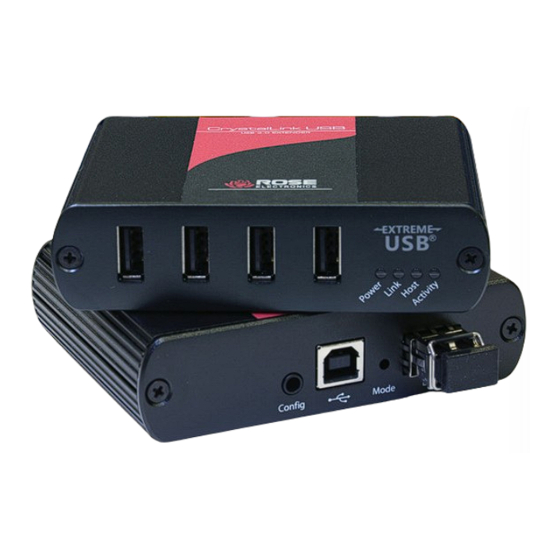

- Page 1 CrystalLink USB2.0 Fiber USB2.0 Fiber Optic Extender Installation Operation Manual 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 techsupport@rose.com...
- Page 2 CrystalLink USB2.0 Fiber Extender to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
- Page 3 DECLARATIONS OF CONFORMITY This is to certify that, when installed and used according to the instructions in this manual, the units listed and described here are shielded against the generation of radio interferences in accordance with the application of Council Directives 2014/30/EU and 2014/30/EU, as well as these standards: ■...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Contents Disclaimer System Introduction Features Package Contents Additional Items Required Application Examples CrystalLink USB2.0 Fiber Models Transmitter Unit Receiver Unit Installation Procedure Installation Using Premise Wiring Installing the Transmitter Unit Installing the Receiver Unit Connecting the Transmitter to Receiver Connection Using Surface Cabling Connection Using Premise Cabling Connecting a USB Device... -
Page 5: Disclaimer
(See limited warranty). System Introduction Thank you for choosing the Rose Electronics CrystalLink USB2.0 fiber extender. The CrystalLink USB2.0 fiber has proven to be a valuable investment for any business, big or small, that has a need to access and extend their USB1.1 or 2.0 peripherals up to 6.2 miles (10Km) from a remote location. -
Page 6: Package Contents
Package Contents The package contents consist of the following: ■ Transmitter unit ■ Receiver unit ■ USB2.0 cable ■ 24V DC Power Adapter (1) and AC power cable (1) ■ Manual Additional Items Required ■ USB compatible computer (host computer) with a USB compliant operating system ■... -
Page 7: Crystallink Usb2.0 Fiber Models
MODELS CrystalLink USB2.0 Fiber Models The CrystalLink USB2.0 fiber enables users to extend beyond the standard 15ft (5.0 meter) cable limit for USB peripherals by locating high-speed USB device(s) up to 6.2 miles (10Km) from the computer. Transmitter Unit The transmitter connects to the host device using the supplied USB cable. Power for the transmitter is provided by the host computer. -
Page 8: Receiver Unit
Config Reserved for engineering use Used to connect the local extender unit to the host computer. Accepts Type USB Host Port B connector into the local extender unit. Mode Reserved for engineering use Link Port (Duplex LC) Extension link Duplex LC fiber connection Figure 2. -
Page 9: Figure 3. Receiver Unit - Led's And Connectors
Connects to the AC power supply. Required at the remote extender for DC Power Port proper operation. Config Reserved for manufacturer use. Mode Reserved for manufacturer use. Link Port (Duplex LC) Extension link Duplex LC fiber connection Figure 3. Receiver unit – LED’s and connectors CrystalLink USB2.0 Fiber Extender Manual... -
Page 10: Installation Procedure
INSTALLATION Installation Procedure Before beginning an installation, ensure you have all products and components ready for the installation TX Unit USB Host Fiber Cable RX Unit USB2.0 Devices Figure 4. CrystalLink USB2.0 fiber extender – standard installation Determine where the computer is to be located and set up the computer. Determine where you want to locate the remote USB device(s). -
Page 11: Connecting The Transmitter To Receiver
Connecting the Transmitter to Receiver To ensure optimum operation, it is recommended to use Duplex LC fiber cabling to connect the transmitter and receiver units. Connection Using Surface Cabling Plug one end of the fiber cabling (not included) into the Link port on the transmitter unit. ... -
Page 12: Transmitter And Receiver Mounting Options
Transmitter and Receiver Mounting Options The bottom of the chassis includes four pre-drilled holes for optional mounting. Based on your requirements, choose from two available mounting options: USB Extender Mounting Kit (Purchased separately - USB Mounting Kit - Black) USB Extender Direct Surface Mounting (Using your own rack-shelf or tray) ... -
Page 13: Troubleshooting Guide
TROUBLESHOOTING Troubleshooting Guide The following table provides troubleshooting tips. The topics are arranged in the order in which they should be executed in most situations. If you are unable to resolve the problem after following these instructions, please contact Technical Support for further assistance. Problem Cause Solution... -
Page 14: Table 1. Troubleshooting Procedures
Problem Cause Solution All LEDs on both the local • The USB device is • Disconnect the extender from the computer. and remote extenders are malfunctioning. • Connect the USB device directly to the USB on, but the USB device •... -
Page 15: Safety
PRODUCT SAFETY Safety The CrystalLink USB2.0 fiber extender, like all electronic equipment, should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. Follow all instructions and warnings marked on this Unit. -
Page 16: Maintenance And Repair
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 17: Appendices
APPENDICES Appendix A — Specifications Part Number Description CLK-4U2FMB-500M USB 2.0 Multimode Fiber Extender. 4 USB ports. Transmitter & Receiver Kit CLK-4U2FSB-10KM USB 2.0 Singlemode Fiber Extender. 4 USB ports. Transmitter & Receiver Kit CAB-USBAB006 USB-AB cable, 6ft (2.0m) CAB-USBAB010 USB-AB cable, 6ft (3.0m) Chassis Dimensions (W x D x H) Transmitter and Receiver chassis... -
Page 18: Figure 6. Fiber Cable Termination (Duplex Lc)
Appendix B — Fiber Cable Termination Duplex LC When a crossover fiber-optic cable is called for, the cable has the transmit signal on one end connected to the receive signal at the other end. Figure 6. Fiber cable termination (Duplex LC) CrystalLink USB2.0 Fiber Extender Manual... - Page 19 ▪ ▪ WWW.ROSE.COM sales@rose.com (800) 333-9343 ▪ ▪ Rose Electronics 10707 Stancliff Road Houston, Texas 77099 Rose USA (281) 933-7673 ▪ Rose Europe +49 (0) 2454 969442 ▪ Rose Asia +65 6324 2322 Rose Australia +61 (0) 421 247083 WWW.ROSE.COM...
