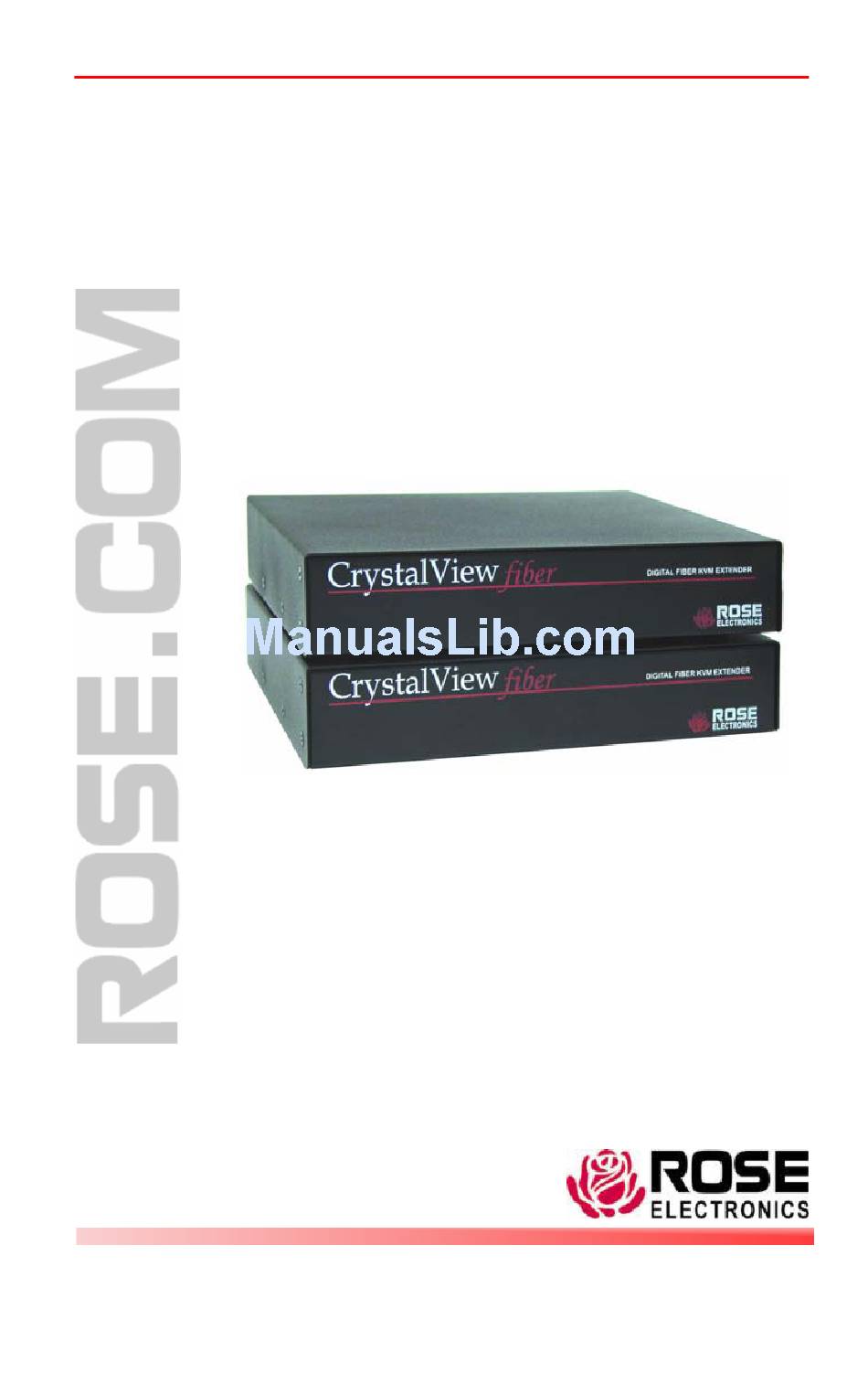

- Page 1 ™ fiber CrystalView Pro DVI / VGA FIBER KVM EXTENDER INSTALLATION AND OPERATION MANUAL 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
-
Page 3: Limited Warranty
LIMITED WARRANTY Rose Electronics warrants the CrystalView Pro Fiber to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below. - Page 4 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
-
Page 5: European Union Declaration Of Conformity
EUROPEAN UNION DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY This equipment is in conformity with the Council Directives 89/336/EEC The Declaration of Conformity is based upon compliance of the product with the following standards: EN55022: EN55024: EN61000-3-2 2001 EN61000-3-3 2002 This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 6: Table Of Contents
TABLE of CONTENTS Contents Disclaimer... 1 System Introduction... 1 Features... 2 Compatibility ... 2 DVI or VGA... 3 PC Model... 4 SUN Model ... 5 USB Model ... 6 Rack Model... 6 Optical Elements ... 7 Cables ... 7 Device Control -OSD... 8 OSD Menu descriptions ... -
Page 7: Disclaimer
The system consists of two Units, a transmitter and a receiver. The transmitter connects to your CPU or a Rose switch and the receiver connects to a keyboard, video monitor and mouse or KVM station. The transmitter and receiver are connected together with industry standard multimode or singlemode fiber optic cable. -
Page 8: Features
Private mode for inhibiting the transmitter or receiver KVM station Keyboard and mouse emulation ensures the computer does not lock-up and allows peripherals to be connected without removing power Compatible with Rose Electronics family of KVM switches Diagnostic LEDs showing communication error, link, device ready, and video signal status Optional serial port provides extended support up to 19.2K Baud. -
Page 9: Dvi Or Vga
DVI or VGA The CrystalView Pro Fiber is designed to work with any combination of VGA and DVI video cards and monitors. The ideal configuration is using a DVI video card, a TFT monitor and DVI video cables. With this configuration, no adjustments are needed. -
Page 10: Pc Model
MODELS PC Model Figure 1. PC Model Connectors: Receiver unit RJ11 – Programming (See Appendix C) DVI-I – DVI / VGA Video monitor (2) MiniDin-6 – PS/2 Keyboard / mouse SC-Type – Fiber 4-pin square – Power DB9M – Serial data input (2) 3.5mm Stereo audio jacks Transmitter unit 4-pin square –... -
Page 11: Sun Model
SUN Model Figure 2. SUN Model Connectors: Receiver DVI-I – KVM stations video monitor connection. MiniDin-8 – KVM stations keyboard and mouse connection. Fiber – SC-type 4-pin square – Power RJ11 – Programming (See Appendix C) Transmitter DVI-I – CPU video connection. MiniDin-8 –... -
Page 12: Usb Model
USB Model Figure 3. USB Model Connectors: Receiver DVI-I – KVM stations video monitor connection. USB – KVM stations keyboard and mouse connection. Fiber – SC-type 4-pin square – Power 6-pin barrel – Auxiliary 5.0V USB power * RJ11 – Programming (See Appendix C) Transmitter DVI-I –... -
Page 13: Optical Elements
OPTICAL ELEMENTS / CABLES Optical Elements The Multimode models are Class 1 laser products and comply with IEC 825-1 and FDA 21 CFR 1040.10 and 1040.11 The Singlemode models are Class 1 laser products and comply with IEC 60825-1 and FDA 21 CFR 1040.10 and 1040.11 The optical ports of the modules must be terminated with an optical connector or with a dust plug. -
Page 14: On-Screen Display (Osd)
ON-SCREEN DISPLAY (OSD) Device Control -OSD The on-screen display provides an easy way to define the following parameters: 1. Input select, graphic source, VGA of DVI 2. Scale mode 3. Brightness, contrast, and Back level 4. Colors 5. Color temperature 6. -
Page 15: Osd Menu Descriptions
OSD Menu descriptions Menu descriptions The input select menu is the first menu to display when the OSD is activated. This menu allows you to select the graphic source type. This is typically the video card type (VGA or DVI). Use the left or right arrow key to select the video source (VGA or DVI) to be used by the transmitter and press Enter. -
Page 16: Figure 6. Brightness/Contrast Menu
The receiver will always generate an exact reproduction of the source signal (up to the max resolution of the unit) if the Fixed Resolution is set to “OFF”. The fixed resolution setting should be used if the monitor resolution on the receiver is not capable of displaying the resolution sent by the transmitter. -
Page 17: Figure 7. Color / Color Temp Menu
The color and color temperature menu can automatically calibrate for the best color parameters or be set manually. Figure 7. Color / Color temp menu The automatic calibration adjusts for the best color parameters Standard RGB color selection Color temperature sub-menu select Direct setup of RGB colors, Automatic CMY colors Color temperature selection (4200k, 5000k, 6500k, 7500k, 9300k) -
Page 18: Figure 8. Image Menu
The image selection menu allows re-positioning of the image, for manually adjusting the number of pixels per line (pixel clock), and manually adjusting the phase This option is only available with a VGA source. No adjustments are needed for a DVI source. Figure 8. -
Page 19: Figure 9. Tools Menu
The Tools menu allows you to adjust the OSD position, reset to factory defaults, adjust sharpness, and other parameters. Figure 9. Tools menu Manually adjust the OSD Manually adjust the Horizontal OSD position Manually adjust the Vertical OSD position OSD size – Select single or double size Reset to factory defaults Manually adjust sharpness (Effective on fixed scaling only) Auto-detect the number of pixels and automatically adjust the... -
Page 20: Figure 10. Save Menu
Color depth of the source screen picture Low color mode: this mode allows high frame rates, select for fast screen changes (i.e.video). Transmitting on CAT-5 with 5 vits/color = 15 bits total = 32768 colors. High color mode: This mode allows for low frame rates only, select for exact picture display (i.e. -
Page 21: Installation
INSTALLATION Installation Please refer to the safety section first before proceeding with any installation or configuration of the CrystalView Pro Fiber. NOTE: If your CPU uses a DVI video card and the KVM station’s monitor is a TFT (flat panel) DVI monitor, pixelclock and phase adjustments should not be needed. -
Page 22: Transmitter To Receiver Cabling
Refer to Figure 11 for the set-up for your system application. A. 1- Connect the appropriate CPU cable to the keyboard, video monitor and mouse ports on the CPU and to the corresponding ports on the transmitter. 2- Connect the transmitter to the receiver with cable defined for your system (CAT-5 or Fiber optic) 3- Connect the KVM stations keyboard, video monitor, and mouse cables to the corresponding connectors on the... -
Page 23: Set-Up Instructions (Mixed Dvi And Vga)
SET-UP instructions (Mixed DVI and VGA) The following set-up instructions are for systems that use a mixture of VGA and DVI products. Systems with DVI video cards, DVI monitors and use DVI cables normally do not require any set-up. Set-up consists of adjusting the pixelclock first, then adjusting the phase. To properly do this, an appropriate image must be displayed on the monitor. -
Page 24: Table 3. Pixel Clock /Phase Examples
Pixel clock set correctly Pixel clock set incorrectly Table 3. Pixel clock /phase examples If one or more vertical areas have smeared lines, the pixelclock needs adjusting. If there is horizontal noise lines, flicker or smearing with a zebra-pattern, the phase needs adjusting. First, manually adjust the pixelclock. -
Page 25: Additional Keyboard Commands
Additional keyboard commands • Private mode - <Ctrl> + <Shift> + <Scroll Lock> (Issue from the transmitter or receiver to disable use from the NON-issuing unit) • Keyboard and mouse reset - <Ctrl> + <Shift> + <F4> (Issue from the transmitter or receiver to request a reset of the keyboard and mouse) •... -
Page 26: Operating Instructions
OPERATING INSTRUCTIONS Operating instructions Once the transmitter and receiver units are connected and configured, the KVM station will function as if it were directly connected to a CPU or KVM switch. All applications, upgrades and PC configurations can be performed normally. If your transmitter is connected to a KVM switch, refer to the switches manual for the proper method of switching to different CPU ports. -
Page 27: Troubleshooting
CrystalView Fiber that is not covered in this manual, please contact Rose Electronics for technical support. PC boots with no error messages but keyboard does not work. -
Page 28: Service Information
This Unit does not contain any internal user-serviceable parts. In the event a Unit needs repair or maintenance, you must first obtain a Return Authorization (RA) number from Rose Electronics or an authorized repair center. This Return Authorization number must appear on the outside of the shipping container. -
Page 29: Safety
SAFETY Safety The CrystalView Pro Fiber KVM extender has been tested for conformance to safety regulations and requirements, and has been certified for international use. Like all electronic equipment, the CrystalView Pro Fiber should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions. - Page 30 Safety and EMC Regulatory Statements Safety information Documentation reference symbol. If the product is marked with this symbol, refer to the product documentation to get more information about the product. WARNING A WARNING in the manual denotes a hazard that can cause injury or death.
-
Page 31: Appendix A. General Specifications
APPENDICES Appendix A. General Specifications Maximum resolution Video compatibility Keyboard Mouse transmitter power Receiver power Connectors Temp/Humidity Weight Dimensions Laser data Wave length Output power Output power Beam divergence * as defined by IEC: 50mm aperture at 10cm. ** as defined by FDA: 7mm aperture at 20cm Transmitter Electro-Optical characteristics Launched Power (Avg) into multimode fiber 50 µm or 62.5µm... -
Page 32: Appendix B. Parts And Cables
Appendix B. Parts and cables Part Number CRK-2DFMPDVI CRK-2DFSPDVI CRK-1DFMPDVI CRK-1DFSPDVI CRK-1DFMSDVI CRK-1DFSSDVI CRK-1DFMUDVI CRK-1DFSUDVI CRK-1DFMPDVI/SF/AU* CRV-SRDFMPDVI/SF/AU* CRV-DLDFMPDVI/SF/AU* CRV-SLDFMPDVI/SF/AU* CRV-DLDFMPDVI/SF/AU- IRK* CRV-SLDFMPDVI/SF/AU- IRK* CRV-SRDFMPDVI/SF/AU- IRK* NOTE: * Application Specific models, Unidirectional, Single Fiber Multimode with audio Part number with /AUD suffix includes audio support CAB-CXV66MMnnn** CAB-CX0606Cnnn** CAB-ZX0606Cnnn**... -
Page 33: Appendix C. Firmware Updates
Appendix C. Firmware updates The CrystalView Pro Fiber firmware may be updated when additional enhancements and improvements are developed. Contact Rose Electronics technical support for information on firmware updates. Appendix D. Rack mount instructions The optional rack mount kit includes the following items: Two black anodized mounting brackets. -
Page 34: Appendix F. Supported Video Modes
Appendix F. Supported Video Modes Horiz. Vert Name Pixels Lines DOS graphic mode Vesa Standard DOS Text mode Vesa Standard Vesa Standard Industry Standard Mac Mode Vesa Standard Vesa Standard Vesa Standard PAL progressive Vesa Guidelines Vesa Guidelines Vesa Standard Vesa Standard Vesa Standard Mac Mode... - Page 36 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
