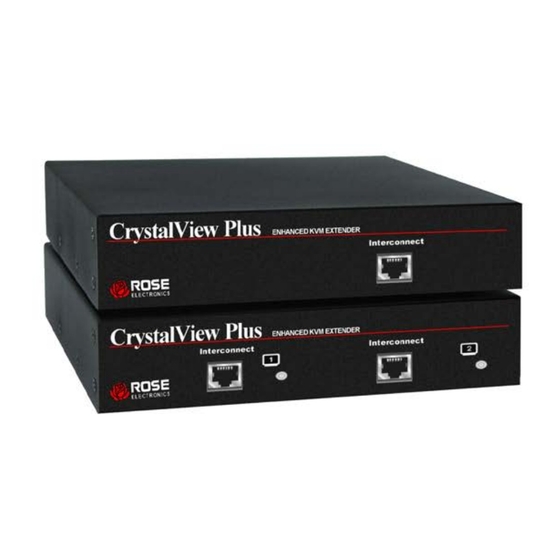

CrystalView Plus
ENHANCED CAT5 KVM EXTENDER
INSTALLATION AND OPERATIONS
10707 Stancliff Road
Phone: (281) 933-7673
MANUAL
Houston, Texas 77099
Internet: WWW.ROSE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CrystalView Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for Rose electronics CrystalView Plus

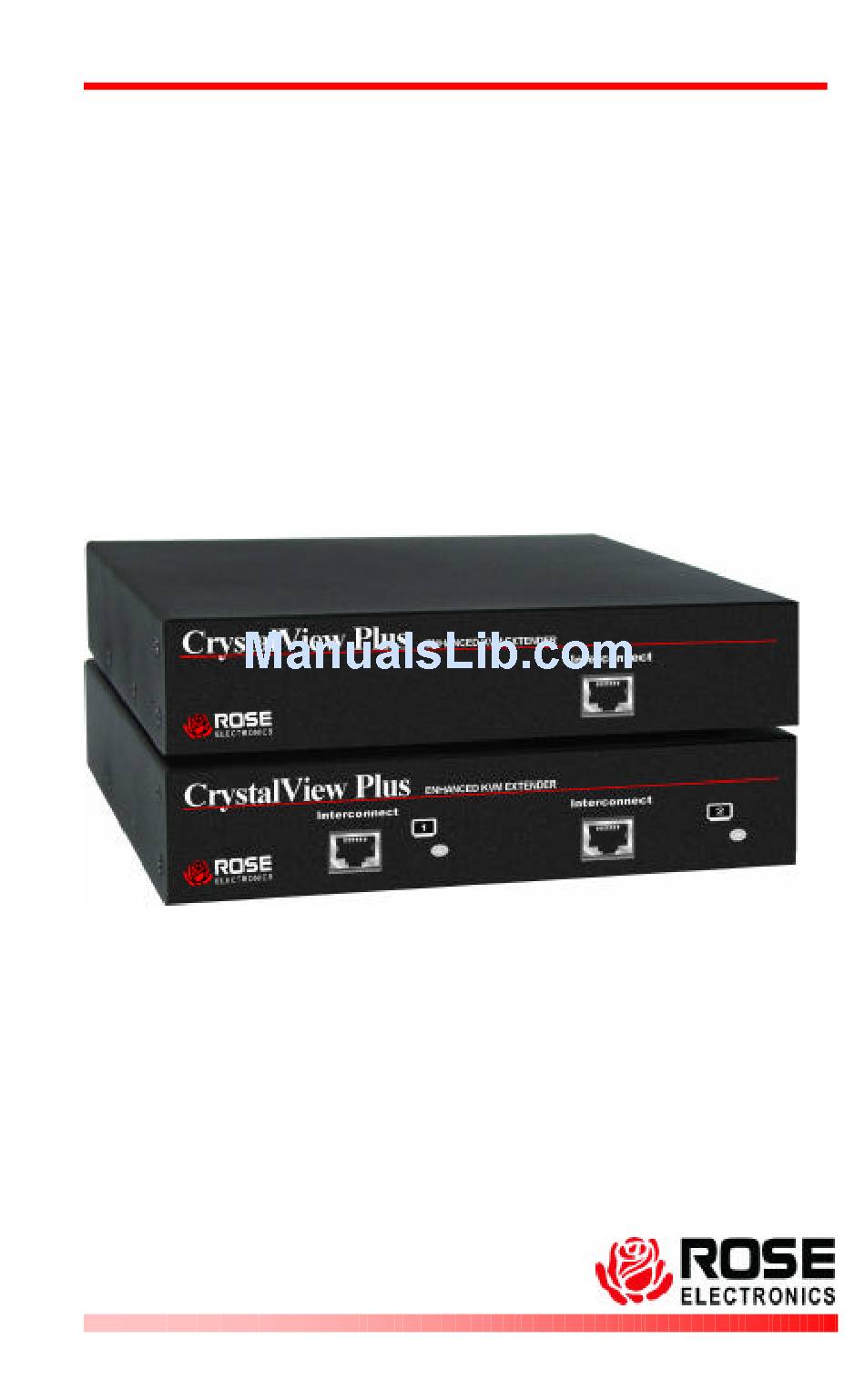

  • Page 1 CrystalView Plus ENHANCED CAT5 KVM EXTENDER INSTALLATION AND OPERATIONS 10707 Stancliff Road Phone: (281) 933-7673 MANUAL Houston, Texas 77099 Internet: WWW.ROSE.COM...
  • Page 2: Limited Warranty

    ® Rose Electronics warrants the CrystalView Plus™ to be in good working order for one year from the date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the Unit as set forth below.
  • Page 3 FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO-FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses and can radiate radio frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer’s instructions may cause interference to radio communication.
  • Page 4 EUROPEAN UNION DECLARATION OF CONFORMITY ACCORDING TO COUNCIL DIRECTIVE 89/336EEC & 73/23EEC This equipment is in conformity with the protection requirements of the following Council Directives: The Declaration of Conformity is based upon compliance of the product with the following harmonized standards: EN55022: 1998 EN55024: 1998...
  • Page 5: Table Of Contents

    TABLE OF CONTENTS Contents Disclaimer ...1 System introduction...1 Features...2 Compatibility...3 Package contents...3 Single video Local models ...4 Single video Remote models ...5 Dual video local models...6 Dual video remote models ...7 Quad video remote models...8 Cables...9 Serial cable ...10 Audio cable ...10 Installation...11 Connecting the cables ...12 Dual Video cabling...14...
  • Page 6 Figure 6. Single video cabling ... 12 Figure 7. Dual video cabling ... 14 Figure 8. Quad video cabling... 16 Figure 9. CrystalView Plus to a KVM switch ... 17 Figure 10. Color skew delay compensation ... 24 Figure 11. Video Test Card... 25 Figure 12 HF / LF adjustment guide.
  • Page 7: Disclaimer

    KVM station to be connected to the Local Unit. The CrystalView Plus system consists of two Units, a Local Unit and a Remote Unit. The Local Unit connects to your CPU and one to four video sources or a Rose switch.
  • Page 8: Features

    Supports PCs, serial, and full stereo audio Supports PS/2 keyboard/mouse and all PC video formats The CrystalView Plus uses a microprocessor to emulate the keyboard and mouse for plug and play operation. The keyboard and mouse on the Remote Unit do not have to be connected for the PC to boot;...
  • Page 9: Compatibility

    Electronics or your reseller, so the problem can be quickly resolved. Rose Electronics web site Visit out web site at www.rose.com for additional information on the CrystalView Plus and other products that are designed for data center applications, classroom environments and other applications. About this manual This manual covers the installation and operation of the CrystalView Plus PC and PC-Serial/Audio models.
  • Page 10: Single Video Local Models

    § MiniDin-6 (4) CPU & KVM keyboard and mouse connection § DB9F Serial connector § Audio (2) 3.5mm stereo connectors CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Front view Rear view Rear view with serial/audio Rear view with local access Rear view with local...
  • Page 11: Single Video Remote Models

    KVM video connection § MiniDin-6 (2) KVM keyboard and mouse connections § DB9M Serial connector § Audio (2) 3.5mm stereo connectors § Power 9V power adapter connector CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Front view Rear view Rear view with serial/audio...
  • Page 12: Dual Video Local Models

    Rear Local with serial/audio § DB25F (2) CPU & second video. § DB9F Serial connector § Audio (2) 3.5mm stereo connectors § Power Optional 5V DC power adapter connector CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Front view Rear view Rear view with serial/audio...
  • Page 13: Dual Video Remote Models

    Second video monitor § MiniDin-6 (2) KVM keyboard and mouse connections § Audio (2) 3.5mm stereo connectors § DB9M Serial connector § Power 9V DC power adapter connector CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Front view Rear view Rear view with serial/audio...
  • Page 14: Quad Video Remote Models

    Third video monitor § HD15F Fourth video monitor § Audio (2) 3.5mm stereo connectors § DB9M Serial connector § Power 9V DC power adapter connector CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Front view Rear view Rear view with serial/ audio...
  • Page 15: Cables

    CrystalView Plus Remote Unit to KVM station cable The keyboard, video monitor, and mouse cables on a KVM station can connect directly to the CrystalView Plus Remote unit or the Dual Local Unit connectors if they are HD15M Video connector and PS/2, MiniDin-6 Keyboard and Mouse connectors.
  • Page 16: Serial Cable

    “LINE OUT” connector to the sound cards “LINE IN” connector (DO NOT INSTALL THE “MIC” JUMPER) The video performance will vary with different cable types. The CrystalView Plus makes it easy to adjust the skew and video compensation with simple keyboard commands. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 17: Installation

    Using shorter cables keeps the video noise to a minimum and reduces installation costs. You can mount the CrystalView Plus in a CPU rack with the optional rack mount kit. When mounting in a rack, follow the...
  • Page 18: Connecting The Cables

    (Refer to page 10 for a description of serial and audio cabling) For the serial/audio models, connect the serial DB9M port on the CPU to the DB9F serial connector on the CrystalView Plus using a DB9F to DB9M serial cable.
  • Page 19 Audio ports A set of powered computer speakers can connect directly to the CrystalView Plus remote unit’s line level audio out connector. A powered or non-powered microphone can connect to the Line level audio in (MIC) connector. If you are using a non-powered microphone on the Remote Unit, install the “MIC”...
  • Page 20: Dual Video Cabling

    CPU to the DB9F serial connector on the CrystalView Plus using a DB9F to DB9M serial cable. The line out of the CPU’s sound card connects to the Line in port on the CrystalView Plus. The line in connects to the CrystalView Plus line out port.
  • Page 21 Audio ports A set of powered computer speakers can connect directly to the CrystalView Plus remote unit’s line level audio out connector. A powered or non-powered microphone can connect to the Line level audio in (MIC) connector. If you are using a non-powered microphone on the Remote Unit, install the “MIC”...
  • Page 22: Quad Video Remote Unit Cabling

    Connect these units as described in the dual video section. The Remote unit’s KVM station’s keyboard, monitor, and mouse cables are connected directly to the CrystalView Plus keyboard, monitor, and mouse connectors. Connect a second monitor to view the second video source. Connect a third and fourth monitor to view these video sources.
  • Page 23: Figure 9. Crystalview Plus To A Kvm Switch

    Plug in the power adapter to a 100/240-volt source and to the power connector on the Remote Unit. Only use the power adapter provided with the CrystalView Plus. Boot up the connected CPU and wait for it to completely boot-up. The Local Units power is supplied from the CPUs keyboard port.
  • Page 24: Keyboard Commands

    NOTE: All keyboard commands are initiated from the Remote unit. Before any keyboard command can be issued, the unit must be in the command mode and a channel selected. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Key Sequence [L-Ctrl] + [L-Shift] + [F10]...
  • Page 25: Keyboard Command Descriptions

    Command mode – [L-Ctrl] + [L-Shift] + [F10] Entering the command mode sends the remote units keyboard instructions to the CrystalView Plus instead of the connected computer. In the command mode, the yellow LED on the remote units RJ45 connector for channel 1 will light indicating that the unit is in the command mode.
  • Page 26 0 to 42ns max. in 2.8 ns steps. Decrease BLUE delay – [B] + [L-Arrow] Use this command along with the increase BLUE delay to properly align the BLUE video component. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 27 Use the Increase HF EQ adjustment to sharpen an image. Decrease HF EQ (Fine) – [H] + [L-Arrow] Use the Decrease HF EQ adjustment along with the Increase LF EQ to obtain the sharpest image. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 28: Local Unit Keyboard Commands (Dual Local Model Only)

    Toggle Unit Private Mode – [Scroll Lock] CrystalView Plus models with local KVM access have a private mode available which can inhibit the local or remote unit. When the local or remote unit issues this command, it blanks the monitor and prevents the other unit from being used until the private mode command is issued again.
  • Page 29 This command sends a null mouse byte to the system and then exits the command mode. Some operating system’s mouse drivers may automatically re-synchronize the mouse signal if there is no mouse activity for a few seconds. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 30: Video Adjustments

    Refer to the example in Figure 10. Slower GREEN BLUE Faster Figure 10. Color skew delay compensation CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Slower GREEN BLUE Faster...
  • Page 31: Figure 11. Video Test Card

    LF too low Adjust-[L] + [Up Arrow] HF too low Adjust-[H] + [Up Arrow] Figure 12 HF / LF adjustment guide. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL SKEW KVM EXTENDER TEST CARD LF too high Adjust-[L] + [Down Arrow] HF too high...
  • Page 32 LED on the Rj45 connector for channel one will light (Not blink). When you are adjusting the video, keyboard commands are directed to the CrystalView Plus remote unit. Mouse activity is temporarily halted until you exit the command mode. When you select a channel to adjust the video, the status LEDs on the keyboard will blink, indicating which channel is selected.
  • Page 33: Operating Instructions- All Units

    Operating instructions – Dual unit KVM Switching The CrystalView Plus “Dual” version allows for an additional KVM station to be connected to the Local Unit. The CPU can be operated from either the Remote or Local KVM station but not simultaneously.
  • Page 34: Troubleshooting

    CrystalView Plus and for general troubleshooting. If you have any problems or questions concerning the installation, operation or usage of the CrystalView Plus that is not covered in this manual, please contact Rose Electronics for technical support.
  • Page 35 Serial cable loose or defective. Flow control incorrectly set on unit or CPU. Connect serial device directly to the CPU’s serial port and check to determine if the problem is a PC or CrystalView Plus problem. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 36: Service Information

    Houston, Texas 77099 USA Technical Support If you are experiencing problems, or need assistance in setting up, configuring or operating your CrystalView Plus, consult the appropriate sections of this manual. If, however, you require additional information or assistance, please contact the Rose...
  • Page 37: Safety

    Like all electronic equipment, the CrystalView Plus should be used with care. To protect yourself from possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.
  • Page 38 Servicing There are no user-serviceable parts inside these products. Only service-trained personnel must perform any servicing, maintenance, or repair. The user may adjust only items mentioned in this manual. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 39: Appendices Appendix A. General Specifications

    Audio data Local power Remote power Connectors Temp/Humidity CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL 1600 x 1200 @ 60 Hz (Less than 650 feet / 200M) 1280 x 1024 @ 75 Hz (650 -1,000 feet / 200 – 300M) VGA to UXGA, RGB 0.7V P-P...
  • Page 40 Remote Unit Single video Single video w/serial-audio Dual video Dual video w/serial-audio Quad video Quad video w/serial-audio CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Width Depth In / mm In / mm 7.76 / 197 3.94 / 100 7.76 / 197 3.94 / 100...
  • Page 41: Appendix B. Parts And Cables

    ** CAT-5 cable available from 25 to 1,000 feet. (7.62 – 300 meters) *** CXxxxx cable – mini coax ZXxxxx cable – micro coax CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL Description Single KVM station / single video Single KVM station / dual video...
  • Page 42: Appendix C. Rack Mount Instructions

    Provide a grounded power source to all Units. Pay special attention to overall branch circuit load ratings before connecting equipment to this source. Overloaded circuits are potential fire hazards and can cause equipment failures or poor performance. CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 43: Appendix D. Rack Mount Illustration

    Appendix D. Rack mount illustration Shelf mount bracket for 3 units Single unit brackets CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 44: Appendix E. Quick Installation/Setup Guide

    If your model is a dual or quad model, perform steps 5 – 10 for each channel. Exit Command mode and save 10. <ESC> NOTE: Channel 2 applies to the Dual Video models Channels 2, 3, 4 apply to the Quad Video models CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 45 NOTES CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 46 NOTES CRYSTALVIEW PLUS INSTALLATION AND OPERATIONS MANUAL...
  • Page 48 10707 Stancliff Road Houston, Texas 77099 Phone: (281) 933-7673 Internet: WWW.ROSE.COM...
