Summary of Contents for Clarke CBG6RL

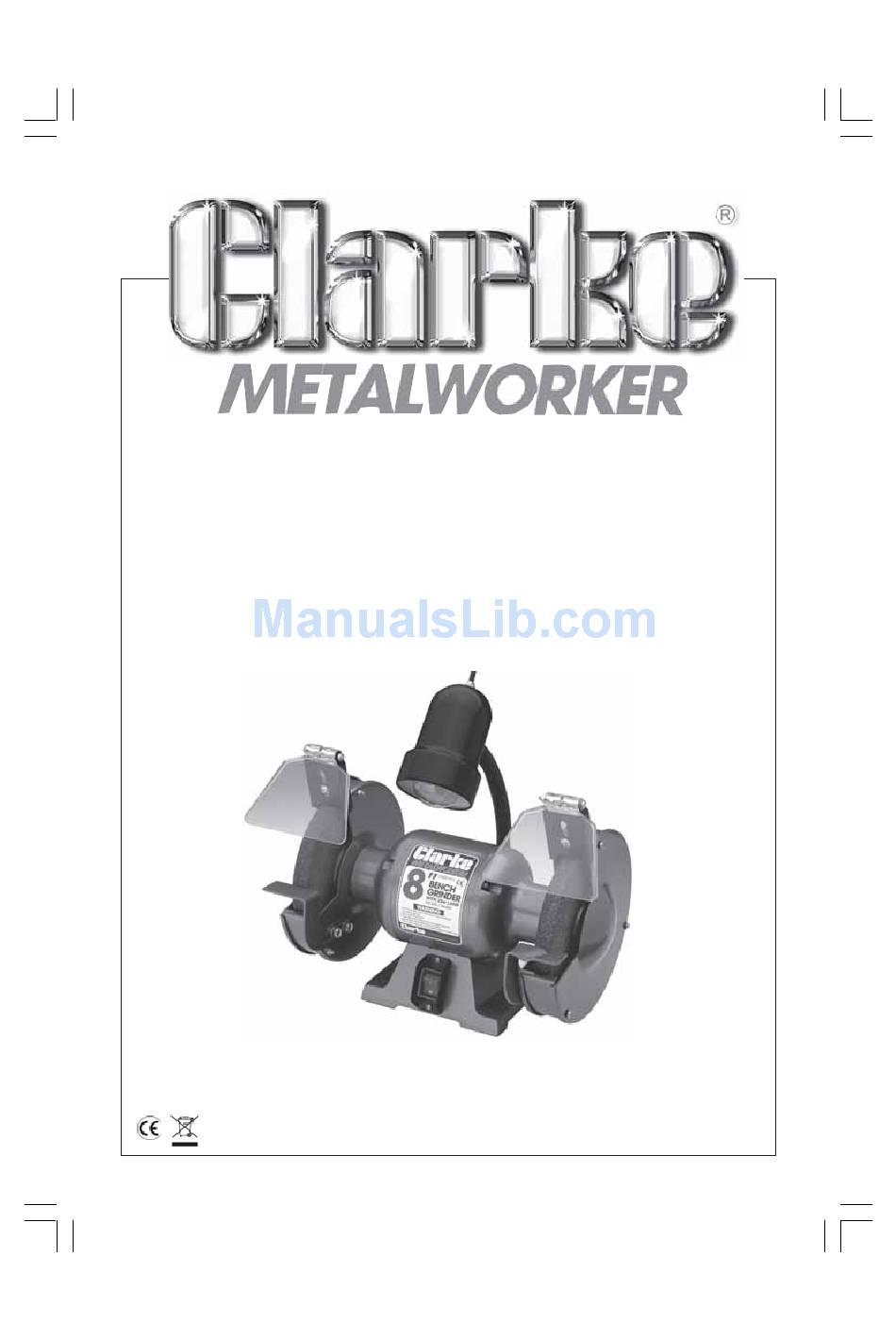

- Page 1 BENCH GRINDER MODEL Nos. CBG6RL & CBG8RL CBG6RSC & CBG8RSC CBG6RWC & CBG8RWC CBG6RR & CBG6RRW CBG8RL OPERATING & MAINTENANCE INSTRUCTIONS 0805...
-
Page 2: Technical Data
**Insert provided Duty Cycle 20/20 min Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. When disposing of this product, do not dispose of with general waste. It must be disposed of according to the laws governing Waste Electrical and Electronic equipment, at a recognised disposal facility. -
Page 3: General Safety Rules
Thank you for purchasing this CLARKE BENCH GRINDER, which is designed for DIY and general workshop use. Before attempting to operate this machine, please read this instruction manual thoroughly and follow all directions carefully. By doing so you will ensure the safety of both yourself and others around you, and at the same time, you should look forward to long and trouble free service from your Bench Grinder. -
Page 4: Additional Safety Rules For Bench Grinders
WEAR THE PROPER APPAREL. No loose clothing, gloves, neckties, rings, bracelets, or any other jewellery which might get caught in moving parts. Non-slip footwear is recommended. Long hair should be contained. ALWAYS USE SAFETY GLASSES. Everyday glasses only have impact resistant lenses, they are not safety glasses. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS Connect the mains lead to a standard, 230 volt (50Hz) electrical supply through a fused good quality 13 amp BS 1363 plug, or a suitable fused isolator switch. WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &... -
Page 6: Pre-Assembly Check
NOTE: Tool rests are not used with the Wire Wheels fitted to the CBG6RWC and 8RWC models, but are available as an accessory. (See your CLARKE dealer). Assemble the Spark Arrester Brackets on to the Wheel Guards, using the single screw and washers provided, in the manner shown in fig. -
Page 7: Maintenance
3. The angle of the Eye Shields are adjustable to suit the operator. Your Clarke Bench Grinder should be securely bolted to a workbench before operation, using the pre-drilled holes in the base. -
Page 8: Tool Rest Adjustment
It will be necessary from time to time to dress the wheel, to obtain a true working surface. This should be done ONLY with an approved dressing tool, which can be obtained from your CLARKE dealer, quoting Model Number GWD-1. Part No. 6501120. -
Page 9: Parts Diagram
PARTS DIAGRAM... -
Page 10: Parts List
PARTS LIST 6RSC 6RWC 6RL 8RSC 8RWC 8RL 6RR 6RRW Description Part No. Part No. Case Motor HT6R001 HT8R001 Stator HT6R002 HT8R002 Rotor Shaft HT6R003 HT8R003 Circlip HT6R004 HT8R004 n/a n/a Bearing HT6R005 HT8R005 End Bell HT6R006 HT8R006 Base Motor HT6R007 HT8R007 Base Motor... -
Page 11: Parts & Service Contacts
PARTS & SERVICE CONTACTS For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 PARTS & SERVICE FAX: 020 8558 3622 or e-mail as follows: PARTS: Parts@clarkeinternational.com...
