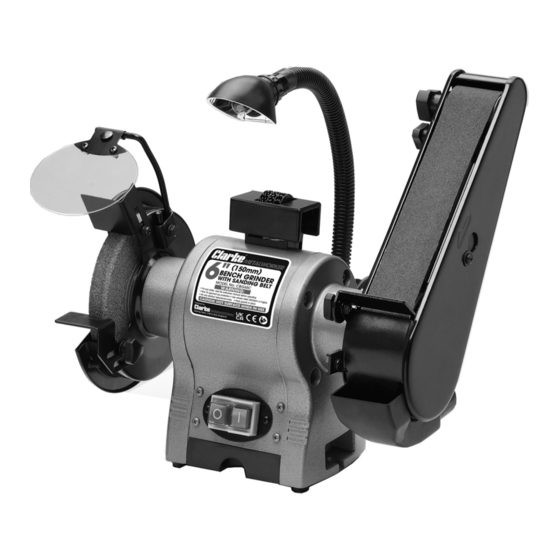

Bench grinder with sanding belt

Advertisement

Quick Links

BENCH GRINDER WITH SANDING BELT
MODEL NO: CBG6SC
PART NO: 6502130
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
GC08/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the METALWORKER CBG6SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke METALWORKER CBG6SC

  • Page 1 BENCH GRINDER WITH SANDING BELT MODEL NO: CBG6SC PART NO: 6502130 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC08/22...
  • Page 2: Environmental Protection

    INTRODUCTION Thank you for purchasing this CLARKE Bench Grinder with sanding belt. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. WORK ENVIRONMENT 1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite accidents 2.
  • Page 4: Electrical Safety

    6. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 7. DO NOT use the tool for any purpose than that described in this manual.
  • Page 5 4. When operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock. BELT/DISC SANDER SAFETY 1. ALWAYS wear a dust mask when using this machine. Be aware that harmful or toxic dusts could be produced when sanding some woods.
  • Page 6: Bench Grinder Safety Warnings

    9. Abrasive products shall be handled and transported with care. Abrasive products shall be stored in such a manner that they are not subjected to mechanical damage and harmful environmental influences. 10. DO NOT use separate reducing bushes or adapters to adapt large hole abrasive wheels.
  • Page 7: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz.
  • Page 8 OVERVIEW Description No Description Eye Shield Dust Extract Port Flexible Lamp Dust Collector/Belt guard Grinding Wheel Dresser Mounting Bolt Location Belt Tracking Adjustment Knob On/Off Switch Belt Tension Knob Tool Rest Sanding Belt Grinding Wheel Side Guard Release Screw Spark Deflector Sanding Workpiece Rest Parts &...
  • Page 9 ASSEMBLY INVENTORY The machine is supplied with the following items. If any items are missing or damaged, please contact the dealer where you purchased the product. • 1 x Eye Guard • 2 x Tool Rests (1x grinding/ 1 x sanding) •...
  • Page 10 FITTING THE SPARK DEFLECTOR Fit the spark deflector to the grinding wheel guard using the screw and washers provided. FITTING THE EYESHIELD Fit the eyeshield to the grinding wheel guard using the clamp, bolt and washers provided. FITTING THE SANDING WORK REST Fit the work rest to the sanding belt guard using the plastic wingnut, nut and washer provided.
  • Page 11 USING THE MACHINE FOR GRINDING WARNING: FRAGMENTS FROM A BROKEN/DETACHED GRINDING WHEEL CAN CAUSE INJURY. WARNING: ENSURE THAT THE WORKING POSITION ADOPTED DOES NOT CAUSE OPERATOR FATIGUE WHICH MAY LEAD TO LOSS OF CONTROL OF THE TOOL BEING GROUND. WARNING: THE GRINDING WHEEL WILL CONTINUE TO ROTATE BRIEFLY AFTER THE OFF SWITCH HAS BEEN PRESSED.
  • Page 12: Using The Grinding Wheel

    USING THE GRINDING WHEEL WARNING: APPLYIING EXCESSIVE FORCE TO THE GRINDING WHEEL CAN BE DANGEROUS AND COULD CAUSE DAMAGE TO THE MACHINE. NEVER ATTEMPT TO USE THE SIDE OF THE GRINDING WHEEL. 1. Turn the grinding wheel by hand to ensure it is free, then switch ON by pushing the switch so that the “I“is depressed.
  • Page 13: General Maintenance

    USING THE MACHINE FOR SANDING WARNING: ENSURE THAT THE WORKING POSITION ADOPTED DOES NOT CAUSE OPERATOR FATIGUE WHICH MAY LEAD TO LOSS OF CONTROL OF THE WORKPIECE BEING SANDED. WARNING: THE SANDING BELT WILL CONTINUE TO ROTATE BRIEFLY AFTER THE OFF SWITCH HAS BEEN PRESSED. SETTING THE SANDER WORK REST Slacken the wingnut that secures the work rest in place and position the...
  • Page 14 (built-up), out of round, or otherwise mis-shapen. To correct these defects, a grinding stone dresser is supplied with the machine. Further items are available from your CLARKE dealer. • ET125 Grinding Wheel Dresser - Part No:1700225 • ET154 ½ Carat Diamond Tip Wheel Dresser - Part No:1700329 1.
  • Page 15: Changing The Sanding Belt

    2. Stand to the side of the stone and hold the dresser handle firmly. Place the dresser on the tool support so that its wheels can move freely (i.e, the exposed part of the wheel should be facing up). Run the stone and apply the dresser to the surface of the stone.
  • Page 16: Troubleshooting

    any cooling vents clear. If not bolted to a workbench, store the grinder in a clean, dry location, out of reach of children. ACCESSORIES Description Part No Grinding Wheel - Fine (1/2” bore) 6501043 Grinding Wheel - Medium (1/2” bore) 6501044 Grinding Wheel - Coarse (1/2”...
  • Page 17: Component Parts

    COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 18 COMPONENT PARTS Description Description Screw Wingnut Outer Guard Washer Locking nut Flat Washer Retaining Disc Screw Grinding Wheel Eyeshield Bolt Work Support Spring Washer Flat Washer Rear Guard Screw Spark Deflector Screw Screw Capacitor Eyeshield Support Bracket Capacitor Bracket Washer Cable Clamp Flat Washer Screw...
  • Page 19: Product Specifications

    COMPONENT PARTS Description Description Top Roller Assembly Tensioning Bracket Belt (5-pack) Tensioning Rod Outer cover Tensioning Spring Drive Roller Screw Locking Nut Main Housing Spring Washer Washer Retaining Nut Screw Screw Belt Support Platen Spring washer Large Tensioning Wingnut Flat Washer Flat Washer Extract Duct Spacer...
  • Page 20 DECLARATION OF CONFORMITY-UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 21: Declaration Of Conformity (Ce)

    DECLARATION OF CONFORMITY-CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 22 USEFUL CLARKE PRODUCTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 23 USEFUL CLARKE PRODUCTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
