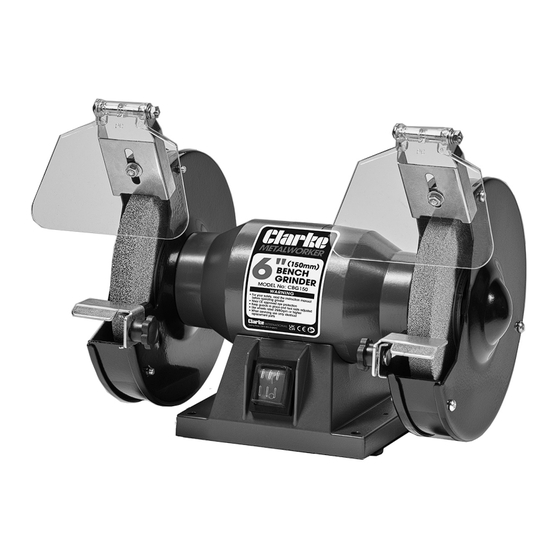

- Page 1 BENCH GRINDER MODEL NO: CBG150 PART NO: 6500757 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC11/23...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Bench Grinder. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite accidents 2. DO NOT operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. -
Page 4: Electrical Safety
6. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 7. DO NOT use the tool for any purpose than that described in this manual. -
Page 5: Grinding Stone Safety
4. When operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock. GRINDING STONE SAFETY 1. Check the speed of the grindstone before fitting to your grinder. NEVER use a stone with a rpm speed less than the rpm speed of your grinder. -
Page 6: Safety Symbols
4. NEVER use damaged or incorrect grindstones. The stone and retaining fixtures were specially designed for your grinder, for optimum performance and safety of operation. Inspect the condition of the grinding stone before use and do not use if any damage is found. 5. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE MACHINE TO THE MAINS SUPPLY. This machine is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. - Page 8 OVERVIEW The following items should be supplied with the bench grinder. If any items are missing or damaged, please contact the CLARKE dealer where you purchased the product. • Two eye shield assemblies (each with nut, bolt, spring washer & 2 x flat washers) •...
- Page 9 ASSEMBLY 1. Fix the tool rests with the locking knobs short coach bolts and washers provided, as shown in Fig.1. • The tool rests are adjustable and should be positioned 2.5mm (1/8") from the grinding wheels. Ensure that the tool rest is firmly fixed and horizontal.
-
Page 10: General Use
USING YOUR BENCH GRINDER WARNING: FRAGMENTS FROM A BROKEN/DETACHED GRINDING WHEEL CAN CAUSE INJURY. WARNING: ENSURE THAT THE WORKING POSITION ADOPTED DOES NOT CAUSE OPERATOR FATIGUE WHICH MAY LEAD TO LOSS OF CONTROL OF THE TOOL BEING GROUND. WARNING: THE WHEEL WILL CONTINUE TO ROTATE BRIEFLY AFTER THE OFF SWITCH HAS BEEN PRESSED. -
Page 11: General Maintenance
DO NOT attempt to repair the grinder unless you are qualified to do so. The drive motor and bearings are sealed units and require no regular maintenance. Should you require assistance, contact your local CLARKE service agent. The stone will wear down with use and may well go out of true. Use a dressing wheel or stone grader to correct the trueness and to remove worn, glazed grains from the stone. -
Page 12: Dressing A New Stone
New grinding stones are frequently not true or in time can become grooved, glazed (built-up), out of round or otherwise mis-shapen. To correct these defects, a grinding stone dresser is available from your CLARKE dealer. • ET125 Grinding Wheel Dresser - Part No:1700225 •... -
Page 13: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Component Parts
COMPONENT PARTS Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 COMPONENT PARTS Description Description Grinding wheel Tooth washer Bolt/nut washer Washer Screw Hand knob Eyeshield bracket Spring washer Washer Bolt/nut washer Spring washer Switch Tooth washer Eyeshield Ground terminal Bearing Screw Base Rubber foot Motor rotor Base plate Motor stator Screw Nameplate Spring washer...
