NTI
NETWORK
R
TECHNOLOGIES
INCORPORATED
ST-C5USBVA-300(M)
300 FOOT USB KVM EXTENDER
Installation and Operation Manual
ST-C5USBV-300
(Desktop Model)
UMTINT-xx-MM
(Module cable- sold separately)
1275 Danner Dr
Aurora, OH 44202
www.networktechinc.com
XTENDEX
ST-C5USBV-300(M)
Tel:330-562-7070
Fax:330-562-1999
®
Series
ST-C5USBV-300M
(Rackmount Module)
MAN010 Rev 5/5/08
Advertisement
Table of Contents
Related Manuals for Network Technologies ST-C5USBV-300M
Summary of Contents for Network Technologies ST-C5USBV-300M

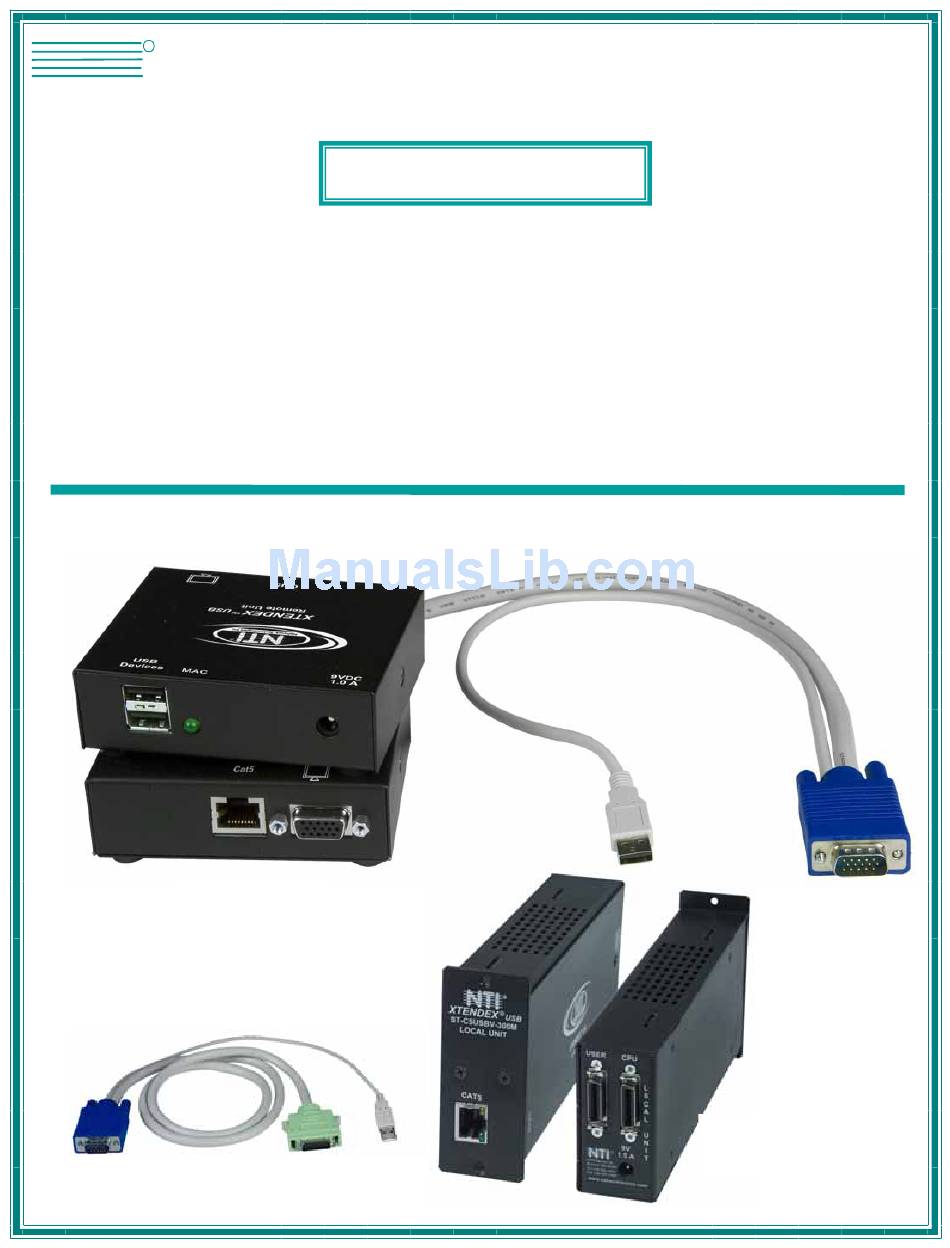

- Page 1 1275 Danner Dr Tel:330-562-7070 NETWORK Aurora, OH 44202 Fax:330-562-1999 TECHNOLOGIES www.networktechinc.com INCORPORATED ® XTENDEX Series ST-C5USBV-300(M) ST-C5USBVA-300(M) 300 FOOT USB KVM EXTENDER Installation and Operation Manual ST-C5USBV-300 (Desktop Model) ST-C5USBV-300M (Rackmount Module) UMTINT-xx-MM (Module cable- sold separately) MAN010 Rev 5/5/08...
- Page 2 Network Technologies Inc at (800) 742-8324 (800-RGB-TECH) or (330) 562-7070. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
Table of Contents Introduction..................................1 Features..................................1 Types of User Input Devices Supported:........................1 Operating Systems Supported ............................ 2 Limitations..................................2 Materials ..................................2 Features and Functions..............................3 Preparation for Installation .............................. 4 Installation ..................................5 The Local Unit................................5 Connect to the CPU .............................. -
Page 4: Introduction
Model Mounting Method Audio Support ST-C5USBV-300 Desktop ST-C5USBVA-300 Desktop ST-C5USBV-300M Rackmount* ST-C5USBVA-300M Rackmount* *NTI ST-C5RCK-12 Rackmount Extender Tray required (sold separately) Features • Allows the placement of a monitor, USB keyboard, and USB mouse in a location where only these parts are needed without having the CPU there too, taking up valuable space and adding to room noise. -
Page 5: Operating Systems Supported
(see pg. 14 for proper EIA/TIA 568B wiring method) For Rackmount Modules (ST-C5USBV-300M or ST-C5USBVA-300M) the following materials are required- not supplied : UMTINT-xx-MM - male 26-PIN SCSI II to male 15-pin HD, male USB Type A- for connecting the Local Unit to a CPU- available in 3, 6 and 10 foot lengths. -
Page 6: Features And Functions
FEATURES AND FUNCTIONS XTENDEX USER XTENDEX Network Technologies Inc Technologies Network ST-C5USBVA-300M XTENDEX REMOTE UNIT CAT5 (Rear View) (Front View) 1.5 A 1275 Danner Dr Aurora, OH 44202 Tel:330-562-7070 ST-C5USBVA-300 (Remote Unit) Fax:330-562-1999 www.networktechinc.com ST-C5USBVA-300M ST-C5USBVA-300M Remote Module XTENDEX Front and Rear Views... -
Page 7: Preparation For Installation
PREPARATION FOR INSTALLATION A location should be chosen for the monitor, mouse, and keyboard that also has space to mount the Remote Unit within the • distance provided by the cables from the monitor, mouse, and keyboard. If extension cables are needed, contact NTI for the cables required. -
Page 8: Installation
NTI #13W3M-15HDF (SUN video port-to-VGA adapter) to the video port on the CPU first, and then connect the video cable to the adapter. Sun 13W3 Video Connector USB Type A male Network Technologies Inc XTENDEX (Rear View) ST-C5USBV-300 Local Unit... -
Page 9: Connect The Local Devices
Connect a USB keyboard and mouse to the USB type A female connectors on the Local Unit. Connect a monitor to the 15HD female connector on the Local Unit. ST-C5USBV-300 (Local Unit) USB Type A Female (Front View) (Rear View) XTENDEX Network Technologies Inc Technologies Network XTENDEX USB Type A male 15HD Female Cable to CPU... -
Page 10: Connect The Cat5 Cable
ST-C5USBVA-300 (Local Unit) Network Technologies Inc XTENDEX (Front View) 3.5mm Stereo Audio Jack Self-Powered Stereo Speakers Figure 4- Connect stereo speakers to XTENDEX Local Unit with audio support Connect the CAT5 Cable ST-C5USBV-300 (Local Unit) (Front View) Connect the CAT5 cable to the “CAT5” port on the rear of the Local Unit (see Fig. -
Page 11: Figure 6- Connect The Monitor And Devices To The Remote Unit
ST-C5USBV-300 Remote Unit Yellow Communication LED USB Type A Female (Front View) (Rear View) Green Power LED XTENDEX Network Technologies Inc Technologies Network XTENDEX 15HD Female Video Connector CAT5 Cable to Local Unit USB Type A male USB Type A... -
Page 12: Connect The Cat5 Cable
Figure 8- Connect CAT5 cable to the Remote Unit Rackmount Modules (optional) If ST-C5USBV-300M or ST-C5USBVA-300M XTENDEX rackmount modules (Local and/or Remote modules) are being installed, then an ST-C5RCK-12 Rackmount Extender Module Tray must be used (sold separately) to mount the modules to a RACK. -
Page 13: Figure 10- Secure Each Module To The Tray
3. Slide each module into the tray and line up the holes in the mounting plate on the module with corresponding holes in the tray. Secure the module(s) using the two screws provided. Blank plates and screws are provided to cover empty module spaces. Frontview of ST-C5RCK-12 with XTENDEX Extender Modules XTENDEX XTENDEX... -
Page 14: Connect The Cpu
Connect the CPU Connect a UMTINT-xx-MM (or UMTINTA-xx-MM if module has audio support) to the CPU, and then to the Local Unit at the connector marked “CPU”. Make sure all connections are firmly seated. (xx= 3, 6, 10, or 15 foot length) USB Type A male UMTINTA-3/6/10/15-MM 0.05 SCSI II series... -
Page 15: Connect The Cat5 Cable
Connect the other end of the cable to the “CAT5” port on the Remote Unit. WARNING: Never connect the ST-C5USBV-300M Extender to an Ethernet card, Ethernet router hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result. -
Page 16: Plug-In And Boot Up
Plug-in and Boot Up Plug the power cord(s) from the monitor(s) into power outlet(s). Connect the AC adapter power connectors to the 9VDC ports on the Remote and Local Units. (AC adapter shown in Fig. 9) Plug the AC adapters into power outlets. The “Power” LED (Green) on the CAT5 connector of each unit should illuminate, indicating that a proper power connection has been made. -
Page 17: Command Mode
COMMAND MODE The XTENDEX has two areas of user control that can be used as needed. The user can adjust video quality (described below) , or enable/disable MAC mode (see page 11) These controls are accessed by entering Command Mode. To enter Command Mode, simultaneously press the left and right <Shift>... -
Page 18: Mac Mode
MAC Mode MAC Mode enables the user to connect the Local Unit to a MAC CPU. MAC Mode configures the Local Unit for passing mouse information to the MAC CPU. This is useful when the user wants to use mouse drivers provided by the mouse vendor, which allows the use of programmable functions for each mouse button. -
Page 19: Common Applications
COMMON APPLICATIONS Figure 11 (below) illustrates three common applications for the ST-C5USBV-300 USB KVM Extender. USBVEXT-xx-MM Existing Local Unit Cable Existing Local Unit Cable NTI USB Multi-Scan ST-C5USBV-300 ST-C5USBV-300 Multi-Scan Monitor Monitor LOCAL UNIT LOCAL UNIT SWITCH (UNIMUX-xU) Existing Local Unit Cable USB Mouse USB Keyboard CAT5 Cable... -
Page 20: Technical Specifications
TECHNICAL SPECIFICATIONS Maximum Resolution w/ CAT5/5e/6 UTP 1024 x 768 @ 60Hz- up to 300 feet (refresh frequency 60Hz) 1600 x 1200 @ 60Hz- up to 150 feet 1920 x 1440 @ 60 Hz- up to 100 feet Maximum Resolution w/ CAT5/5e STP 1024 x 768 @ 60Hz- up to 300 feet (refresh frequency 60Hz) 1280 x 1024 @ 60Hz- up to 150 feet... -
Page 21: Interconnection Cable Wiring Method
INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568B industry standard. Wiring is as per the table and drawing below. Pair 3 Pair 2 Pair 1 Pair 4 Wire Color... -
Page 22: Keyboard Translation
KEYBOARD TRANSLATION Key Equivalents Using the chart below, find the character needed to be typed on the CPU being accessed, then follow the row across for the equivalent on the keyboard being used. (See Fig. 13 on page 16 for reference.) USB 101 WINxx (Apple USB) -
Page 23: Figure 19- Keyboard Layouts
Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Typical 101 Keyboard Print Scroll Screen Pause Lock SysRq Break Backspace Lock Enter Caps Lock Shift Shift Enter Ctrl Ctrl Windows Logo Key Application Key Windows Logo Key Windows USB Keyboard CD Eject lock delete... -
Page 24: Troubleshooting
TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise. -
Page 25: Index
INDEX CAT5 Cable Spec, 18 M AC Mode, 15 CAT5 LEDs, 9 mount to a rack, 9 C ommand Mode, 14 Rackmount modules, 9 D DC support, 15 Specifications, 17 Devices Supported, 1 ST-C5RCK-12, 9 I nstallation, 5 SUN extra keys, 19 Key Equivalents, 19 Troubleshooting, 21 limitations, 2...
