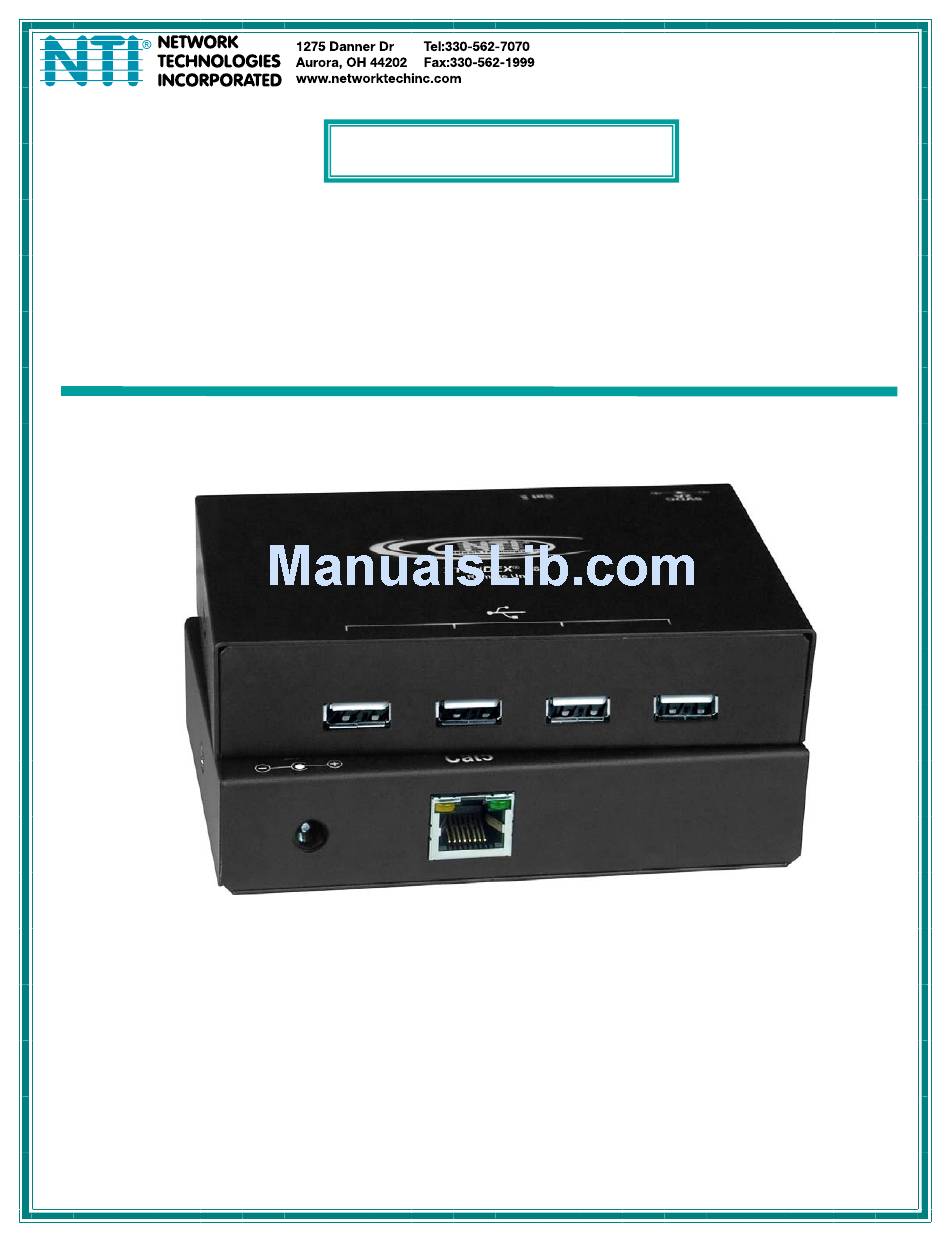

- Page 1 ® XTENDEX Series USB-C5-200 200 Foot USB Extender Installation and Operation Manual Front and Rear View of USB-C5-200 Remote Unit MAN026 Rev Date 8/27/2014...
- Page 2 Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202. CHANGES The material in this guide is for information only and is subject to change without notice. Network Technologies Inc reserves the right to make changes in the product design without reservation and without notification to its users.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Preparation for Installation .............................. 2 Installation ..................................3 Installing The Local Unit .............................. 3 Installing the Remote Unit............................3 Connect The CATx Cable............................4 Plug-in and Boot Up..............................4 Interconnection Cable Wiring Method .......................... -
Page 4: Introduction
RJ45 connectors wired straight thru- pin 1 to pin 1, etc. (see page 5 for proper EIA/TIA 568 B wiring method) Cables can be purchased from Network Technologies Inc by calling (800) 742-8324 (800-RGB-TECH) in the US and Canada or... -
Page 5: Features And Functions
NTI XTENDEX USB EXTENDER FEATURES AND FUNCTIONS Front View of USB-C5-200 Remote Unit Front View of USB-C5-200 Local Unit CAT 5 CAT 5 5VDC 1275 Danner Dr, Aurora, OH 44202 Tel:330-562-7070 www.networktechinc.com 1275 Danner Dr, Aurora, OH 44202 Tel:330-562-7070 www.networktechinc.com... -
Page 6: Installation
Connect the USB Type A male cable end to a USB Type A female connector on the CPU. Connect the USB Type B male cable end to the USB Type B female connector on the Local Unit. Rear View of USB-C5-200 Local Unit USB Type B... -
Page 7: Connect The Catx Cable
Connect the CATx cable between the “Cat 5” port on the Local and Remote Units. (See Figure 3.) When properly inserted the cable end should snap into place. Front View of USB-C5-200 Remote Unit Front View of USB-C5-200 Local Unit... -
Page 8: Interconnection Cable Wiring Method
NTI XTENDEX USB EXTENDER INTERCONNECTION CABLE WIRING METHOD The connection cable between the remote and local is terminated with RJ45 connectors and must be wired according to the EIA/TIA 568 B industry standard. Wiring is per the table and drawing below. Pair 3 Pair 2 Pair 1... -
Page 9: Troubleshooting
NTI XTENDEX USB EXTENDER TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
