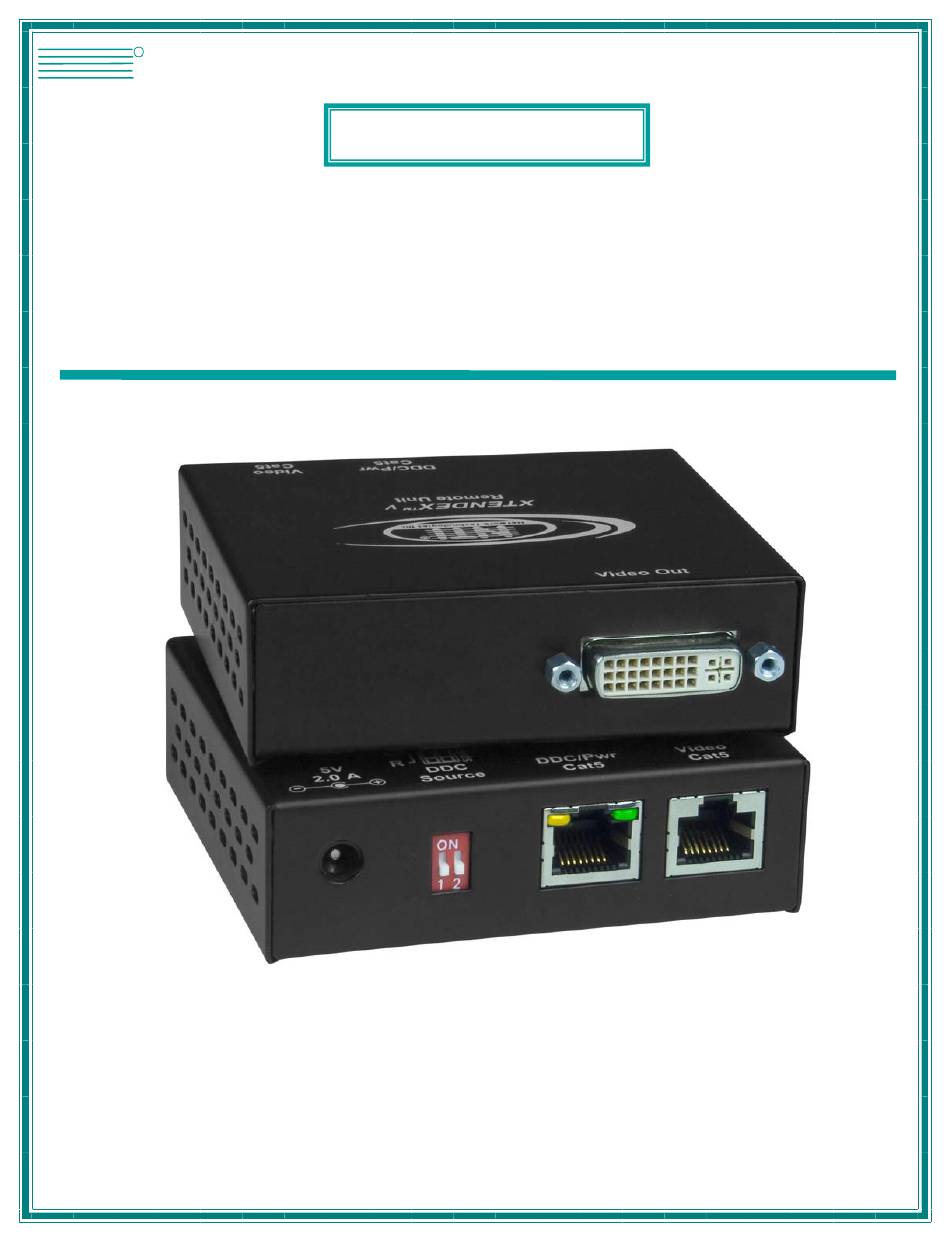

- Page 1 NETWORK 1275 Danner Dr Tel:330-562-7070 TECHNOLOGIES Fax:330-562-1999 Aurora, OH 44202 INCORPORATED www.networktechinc.com XTENDEX Series ST-C5DVI-150 150 FOOT DVI VIDEO EXTENDER Installation and Operation Manual Software Version 1.2 MAN063 Rev Date 10/4/2006...
- Page 2 EXTENDEX is a trademark of Network Technologies Inc in the U.S. and other countries. COPYRIGHT Copyright © 2006 by Network Technologies Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written consent of Network Technologies Inc, 1275 Danner Drive, Aurora, Ohio 44202.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction..................................1 Materials ..................................1 Features and Functions..............................2 Limitations ..................................3 Preparation for Installation .............................. 3 Installation ..................................4 Installing The Remote Unit ............................4 Connect the CAT5e cables............................4 Installing The Local Unit .............................. 5 Connect The CAT5e/6 Cables............................. -
Page 4: Introduction
NTI XTENDEX DVI Video Extender INTRODUCTION The XTENDEX Series CAT5 DVI Video Extender (XTENDEX) is designed to enable the video output from one digital video source to be viewed by two users, one local and one remote. The remote monitor can be located as much as 150 feet away from a CPU via Category 5/5e/ or 6 (CAT5) twisted-pair cable. -
Page 5: Features And Functions
NTI XTENDEX DVI Video Extender Netw ork Techno logies Inc XTENDEX (Front View) (Rear View) ST-C5DVI-150 Local Unit Network Technologies Inc XTENDEX (Front View) (Rear View) ST-C5DVI-150 Remote Unit FEATURES AND FUNCTIONS Yellow LED- illuminates when video input is available and starts blinking when the input is synchronized DDC/Pwr - RJ45 connector- for connecting the CAT5 cable between the Local and Remote units to carry DDC data from the remote video display and to carry power to the Remote unit. -
Page 6: Limitations
NTI XTENDEX DVI Video Extender LIMITATIONS • Hot-plugging of monitors is supported provided monitors were originally connected at power-up. • CAT5 shielded cables are not recommended for use with this extender. PREPARATION FOR INSTALLATION • Locations should be chosen for the monitors that also have space to connect the Remote and Local units within the distance provided by the cables. -
Page 7: Installation
Make sure the CAT5 cables (two required) have been installed in accordance with the “Preparation for Installation” instructions on page 3. Connect the CAT5 cables to Network Technologies Inc the “Cat5” ports on the Remote Unit. (See Fig. 2.) When properly inserted the CAT5 cable ends should snap into place. -
Page 8: Installing The Local Unit
NTI XTENDEX DVI Video Extender Installing The Local Unit Make connections for a local user (optional). Connect the cable from the local user's DVI monitor to the female DVI "Video Out" port on the Local Unit. Connect the DVI-D-MM-S-2M cable between the video source and the "Video In" connector on the Local Unit. Rear View of Local Unit Mating Face of DVI-I Male... -
Page 9: Plug-In And Boot Up
NTI XTENDEX DVI Video Extender Plug-in and Boot Up Plug the power cord from the monitor into the power outlet. Connect the AC adapter power connector to the 5VDC port on the Local Unit. Plug the AC adapter into a power outlet. The green Power LED on the RJ45 connector of both the Remote and Local Units should illuminate, indicating that a proper power connection has been made to them. -
Page 10: Technical Specifications
NTI XTENDEX DVI Video Extender TECHNICAL SPECIFICATIONS Video Video Compatibility PC Resolution up to 1920x1200 @60Hz / HDTV resolution up to 1080P Video Connectors DVI-I Female Input / Output Impedance 100 ohm differential Digital Video data rate 1.65 Gbits DVI Single Link Range 1920 x 1200 Video Maximum I/O Levels 1.2Vp-p... -
Page 11: Troubleshooting
NTI XTENDEX DVI Video Extender TROUBLESHOOTING Each and every piece of every product produced by Network Technologies Inc is 100% tested to exacting specifications. We make every effort to insure trouble-free installation and operation of our products. If problems are experienced while installing this product, please look over the troubleshooting chart below to see if perhaps we can answer any questions that arise.
