PART IDENTIFICATION CHART

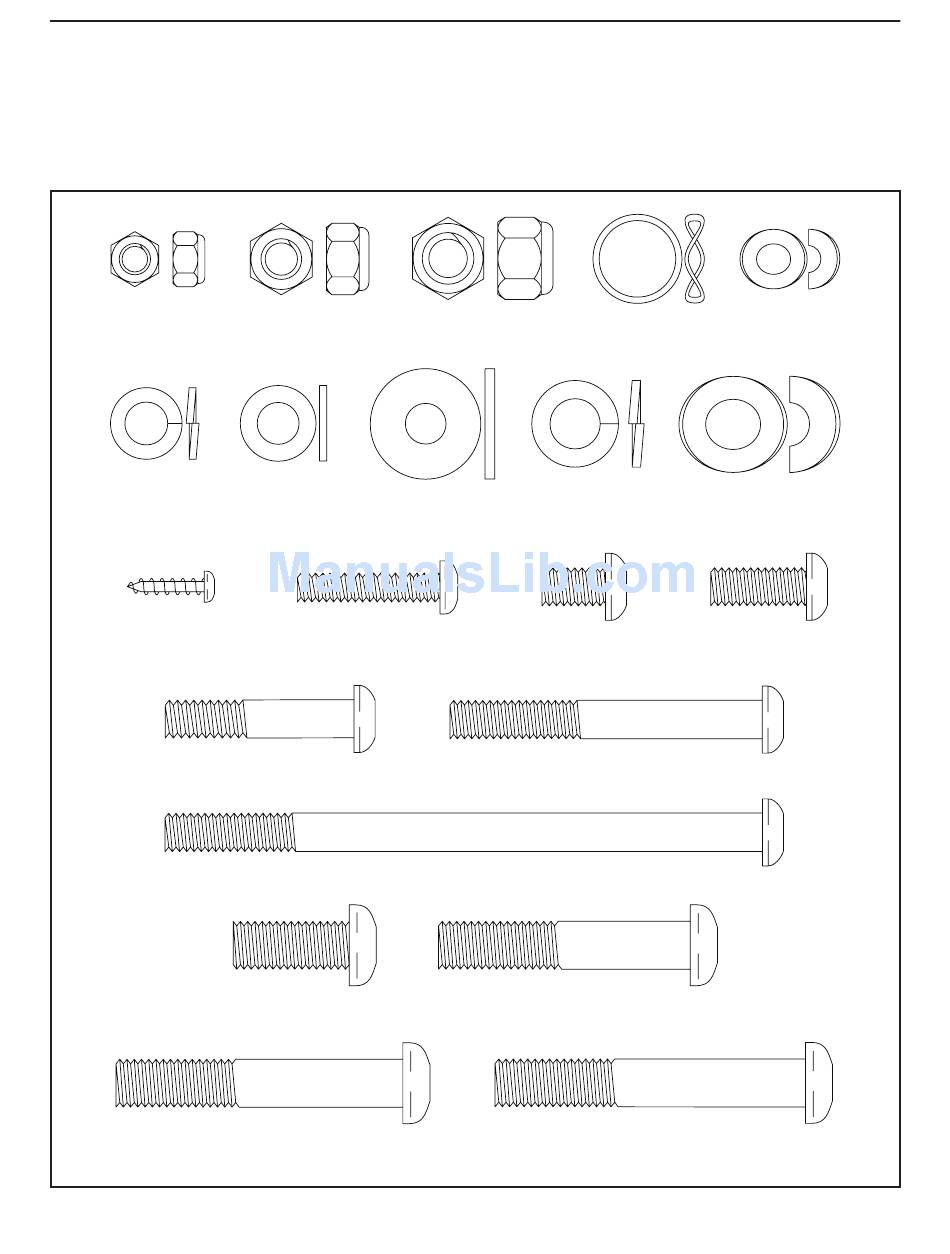

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M6 Locknut
(51)––4
M8 Split
Washer
(42)––8
M4 x 16mm
Screw (47)––8
M8 x 40mm Bolt (83)––6
M10 x 60mm Bolt (61)––1
M8 Locknut
(10)––10
M8 Small
Washer
M8 Large
Washer (54)––4
(93)––4
M6 x 30mm
Bolt (49)––4
M8 x 125mm Bolt (58)––2
M10 x 25mm
Screw (96)––1
Wave Washer
M10 Locknut
(48)––1
M10 Split
Washer (98)––2
M8 x 13mm
Screw (95)––6
M8 x 65mm Bolt (94)––2
M10 x 54mm Screw (97)––1
M10 x 65mm Screw (40)––4
5
M6 Curved
(81)––4 Washer
(25)––4
M10 Curved
Washer (39)––3
M8 x 20mm
Screw (34)––4
