Pro-Form HYBRID TRAINER User Manual page 8

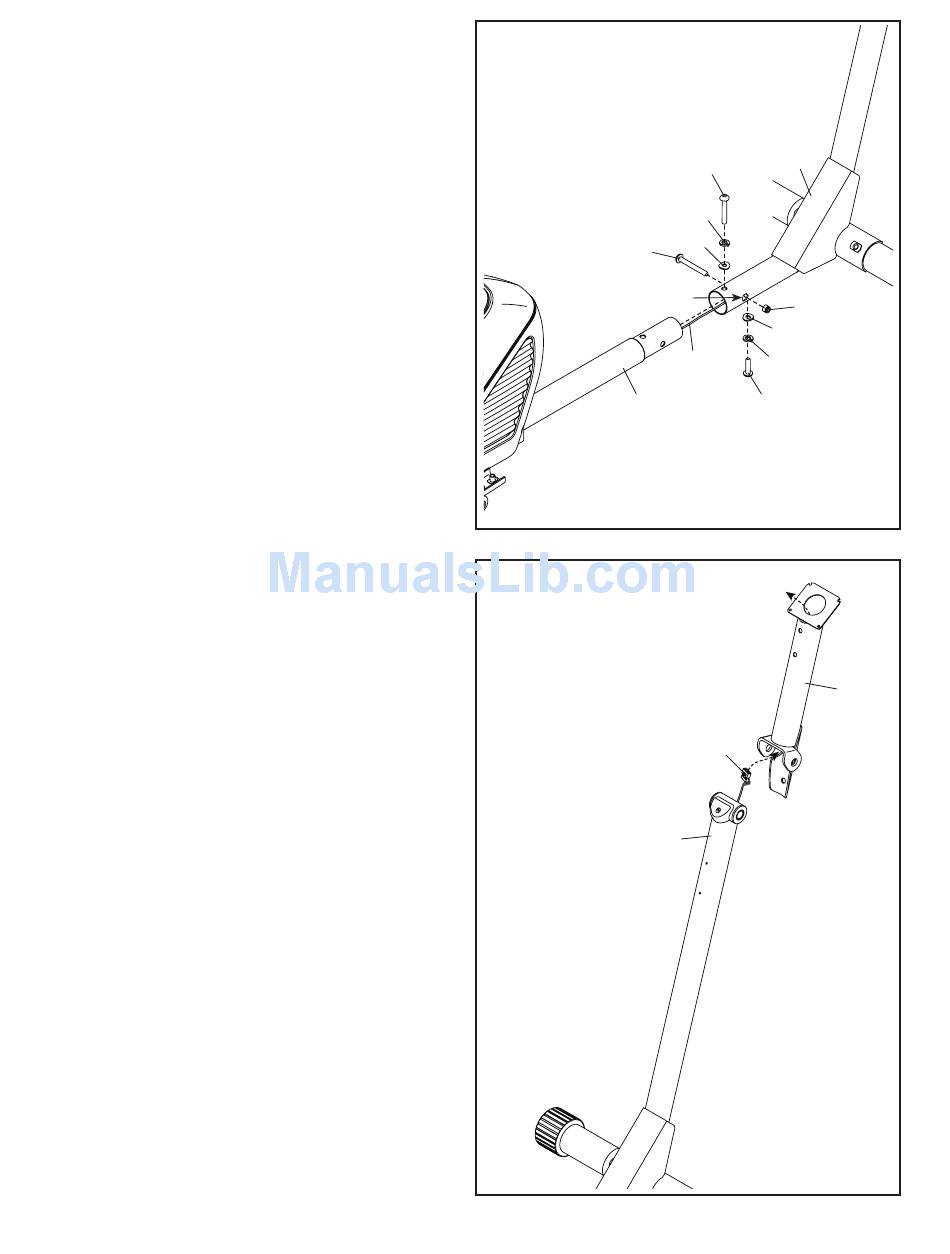

5. Tip: Avoid pinching the Main Wire Harness
(45). Slide the Front Frame (23) onto the Rear
Frame (1).
Attach the Front Frame (23) with an M10 x
25mm Screw (96), an M10 Split Washer (98),
and an M10 Curved Washer (39). Do not
tighten the Screw yet.
Next, attach the Front Frame (23) with an M10
x 54mm Screw (97), an M10 Split Washer
(98), and an M10 Curved Washer (39). Do not
tighten the Screw yet.
Then, attach the Front Frame (23) with an M10 x
60mm Bolt (61) and an M10 Locknut (48); make
sure that the Locknut is in the hexagonal
hole. Do not tighten the Bolt yet.
See steps 2 and 3. Make sure that the ends of
the Rear Stabilizer (6) and the Front Stabilizer
(2) are touching the floor.
Tighten the Bolt and the Screws (61, 96, 97).
6. Hold the Console Post (73) near the Front Frame
(23) as shown. Insert the Main Wire Harness
(45) upward through the Console Post.
