Pro-Form C840 User Manual page 9

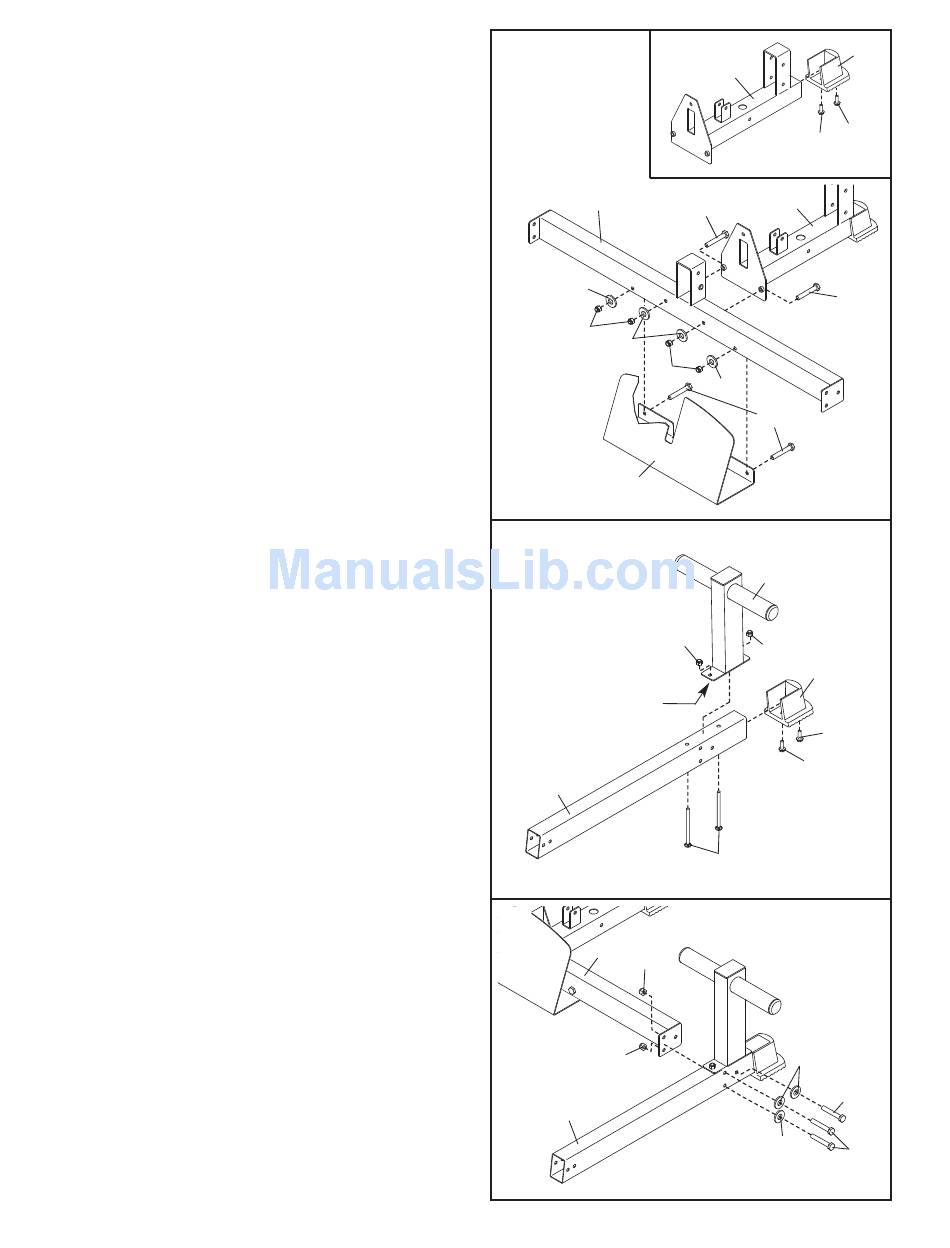

12. See the inset drawing. Attach the Large Base
Cap (117) to the Rear Base (33) with an M4 x
16mm Screw (107) and an M8 x 16mm Screw
(98).
Attach the Rear Base (33) to the Center Base
(32) with two M10 x 78mm Bolts (110), two M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
Set the Center Base (32) inside of the Foot Plate
(48). Attach the Foot Plate to the Center Base
with two M10 x 68mm Bolts (113), two M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
13. Attach the Base Cap (47) to the Left Base (35)
with an M4 x 16mm Screw (107) and an M10 x
19mm Screw (118).
Hold the Storage Leg (45) so that the longer side
of the plate is oriented as shown. Attach the
Storage Leg to the Left Base (35) with two M10 x
92mm Carriage Bolts (111) and two M10 Nylon
Locknuts (97).
14. Attach the Left Base (35) to the Center Base (32)
with three M10 x 68mm Bolts (113), three M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
