Pro-Form C840 User Manual page 13

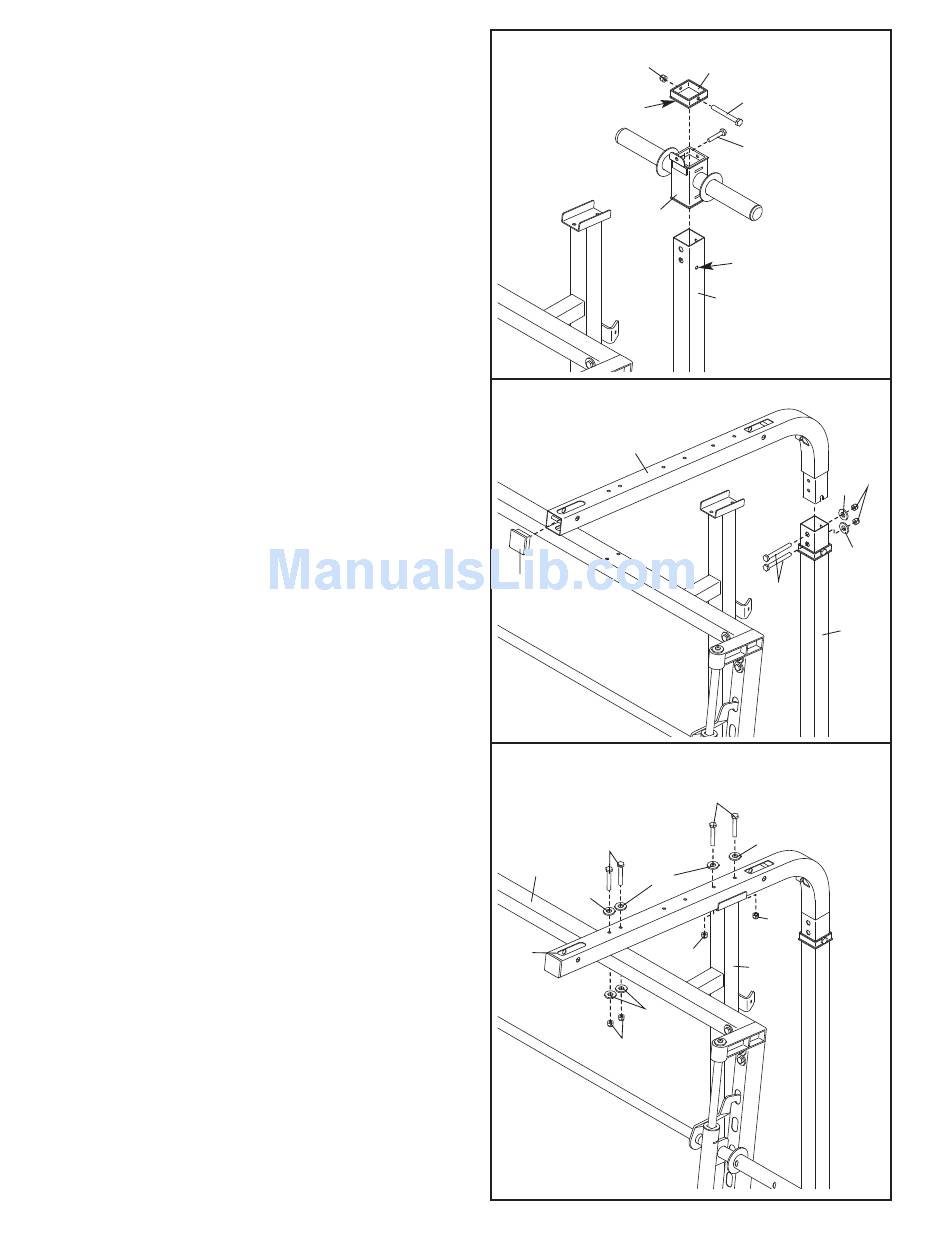

25. Insert an M10 x 19mm Hex Head Bolt (132) into
the bracket on the Weight Carriage (71) from the
side shown.
Orient the Weight Carriage (71) as shown and
slide it onto the Rear Upright (38).
Attach the Weight Carriage Stop (70) to the Rear
Upright (38), at the indicated hole, with an M10 x
88mm Bolt (114) and an M10 Nylon Locknut (97).
Make sure the Square Carriage Bushing (61)
is on the bottom.
26. Press a 60mm Square Inner Cap (65) into the
Rear Top Frame (39).
Attach the Rear Top Frame (39) to the Rear
Upright (38) with two M10 x 72mm Hex Head
Bolts (130), two M10 Washers (99), and two M10
Nylon Locknuts (97). Make sure the bolt heads
are set inside the hex holes in the Rear
Upright. Do not tighten the Locknuts yet.
27. Attach the Rear Top Frame (39) to the Center
Upright (37) with two M10 x 78mm Bolts (110),
two M10 Washers (99), and two M10 Nylon
Locknuts (97). Do not tighten the Locknuts yet.
Attach the Rear Top Frame (39) to the Top Frame
(40) with two M10 x 127mm Bolts (126), four M10
Washers (99), and two M10 Nylon Locknuts (97).
Do not tighten the Locknuts yet.
25
97
61
71
26
39
65
27
126
40
99
39
97
13
70
114
132
Hole
38
130
110
99
99
97
97
37
99
97
99
99
38
